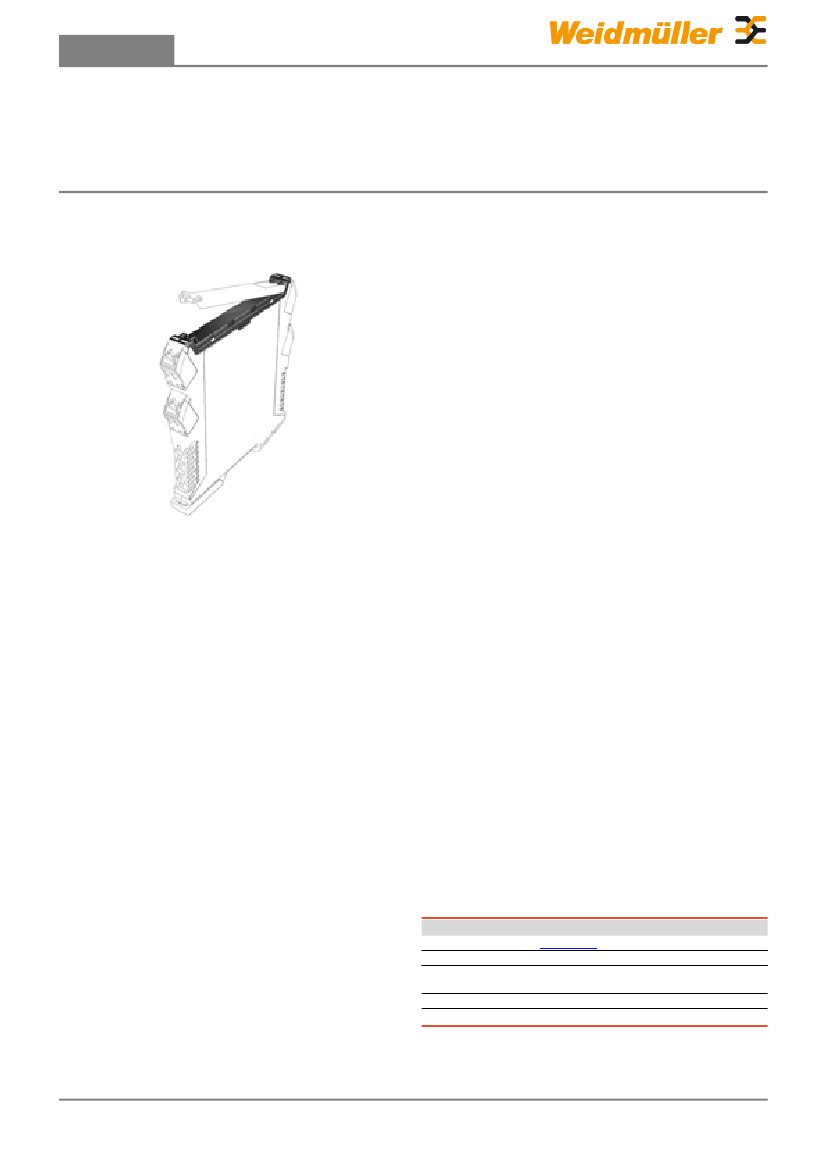

Datasheet
CH20M
CH20M12 F BK
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Superior efficiency, flexibility and design - the "standard
tailor-made fit"
When selecting a housing design, flexibility is a key factor.
Other important criteria are: scalability, customized design,
innovative functionality and cost efficiency. You need a choice
which offers the maximum performance with the minimum
overhead.
The CH20M12 modular electronics housing is the "small"
option amongst the "large" housing solutions for compact
electronics applications.
The entire system is characterized by excellence: outstanding
scalability and flexibility, a high security level, innovative
application functionality and a variety of practical details.
•
Quicker installation
with features such as "Wire ready" the
universal multi-tool screw head
•
User-friendly operations:
with clear and permanent
labelling and extra marking possibilities, integrated release clip
or transparent cover
•
Maximum interference immunity
with EMC-compliant
construction featuring deeply overlapping module joint edges
made from high-performance plastic
•
High operational reliability
with the unique Auto-Set coding
system and featuring double-sided touch protection on the pin
header and socket blocks
CH20M - a compact name for the most flexible system
available on the market. It doesn't just stand for "Component
Housing IP20 Modular".
CH20M also stands for efficiency and innovation throughout
design, production and use.
Note: technical specifications are preliminary
General ordering data
Order No.
Part designation
Version
GTIN (EAN)
Qty.
1104190000
CH20M12 F BK
Electronics housings, CH20M black, Hood,
Width: 12.5 mm
4032248878765
70 pc(s).
Creation date July 23, 2010 10:51:37 PM CEST
Last update 28.05.2010 / We reserve the right to make technical changes.
1
Datasheet
CH20M
CH20M12 F BK
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-2083
www.weidmueller.com
Technical data
Dimensions (1)
Length
Height
100.3 mm
15.5 mm
Width
12.5 mm
System parameters
Version
Hood
Material data
Flammability class UL 94
Colour
Highest continous operating temperature,
max.
V-0
black
85 °C
Insulating material
Highest continous operating temperature,
min.
PA 66 GF 30
-20 °C
Approvals
Approvals institutes
Classifications
eClass 6.0
90-27-26-07
Creation date July 23, 2010 10:51:37 PM CEST
Last update 28.05.2010 / We reserve the right to make technical changes.
2
