BZV17/D0332/04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BZV17/D0332/04

BZV17/D0332/04: DescriptionMains Power Connector, 3A, 250VAC, Female and Male; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZV17/D0332/04 Overview

Mains Power Connector, 3A, 250VAC, Female and Male

BZV17/D0332/04 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
Reach Compliance Code	compliant
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE AND MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	3A, 250VAC
Manufacturer's serial number	BZV17
Installation type	PANEL
Total number of contacts	6

Preview

Download Datasheet

View All

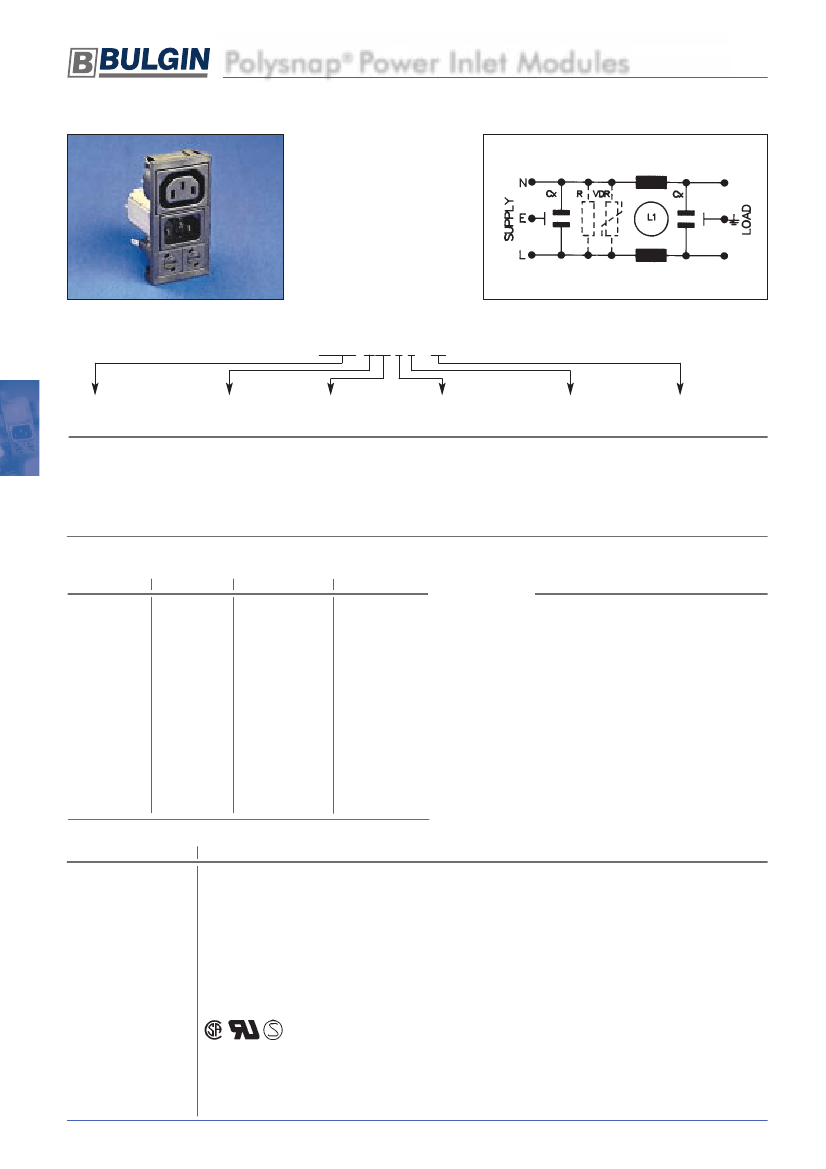

Polysnap

Power Inlet Modules

IEC Inlet - Medical High Performance Filter

EMI filter options for

Polysnap modules BZV03,

BZV04, BZV09, BZV10,

BZV17, BZV18, BZH09,

BZH10, BZH17, BZH18,

BZM27, BZM28

PX0575 style IEC inlet

Using PS07/B style filter

Medical, High Performance

Attenuation Filter

Bxxxx/Dxx x x / xx

Polysnap

Polysnap Part No.

From Polysnap Selection

Filter Type

D = Medical High

Performance

Rating

01 = 1A

03 = 3A

06 = 6A

10 = 10A

L/C Circuit

1 = Version 1

3 = Version 3

Additional

Components

0 = None

1 = Bleed (R) Resistor

2 = Surge (VDR) Protection

3 = “R” plus “VDR”

Polysnap Part No.

From Polysnap Selection

Rating

1 AMP

“

3 AMP

“

6 AMP

“

10 AMP

“

Version

2 x 2.8mH

2 x 10mH

2 x 1.8mH

2 x 3mH

2 x 0.7mH

2 x 15nF

2 x 47nF

2 x 15nF

2 x 47nF

2 x 15nF

2 x 47nF

Part No. Example

BZV09/D0630/04 =

BZV style Polysnap module with PX0575 IEC

power inlet, filter rated at 6 amps, L/C circuit

version 3 (L1 = 2 x 0.7mH, Cx = 2 x 47nF),

without bleed resistor or surge protection

device fitted, 6.3mm tabs and two fuseholders.

2 x 0.17mH

2 x 47nF

Filter Specification

Max. Working Voltage:

Earth Leakage Current:

Temperature Range:

Max. Ambient Temp.:

(@ Full Load)

Test Voltage:

Approvals:

250V a.c. 50-400Hz

<100µA (typically 5µA, 250V. 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

Attenuation Curves:

See PS07/B filter, page 121
