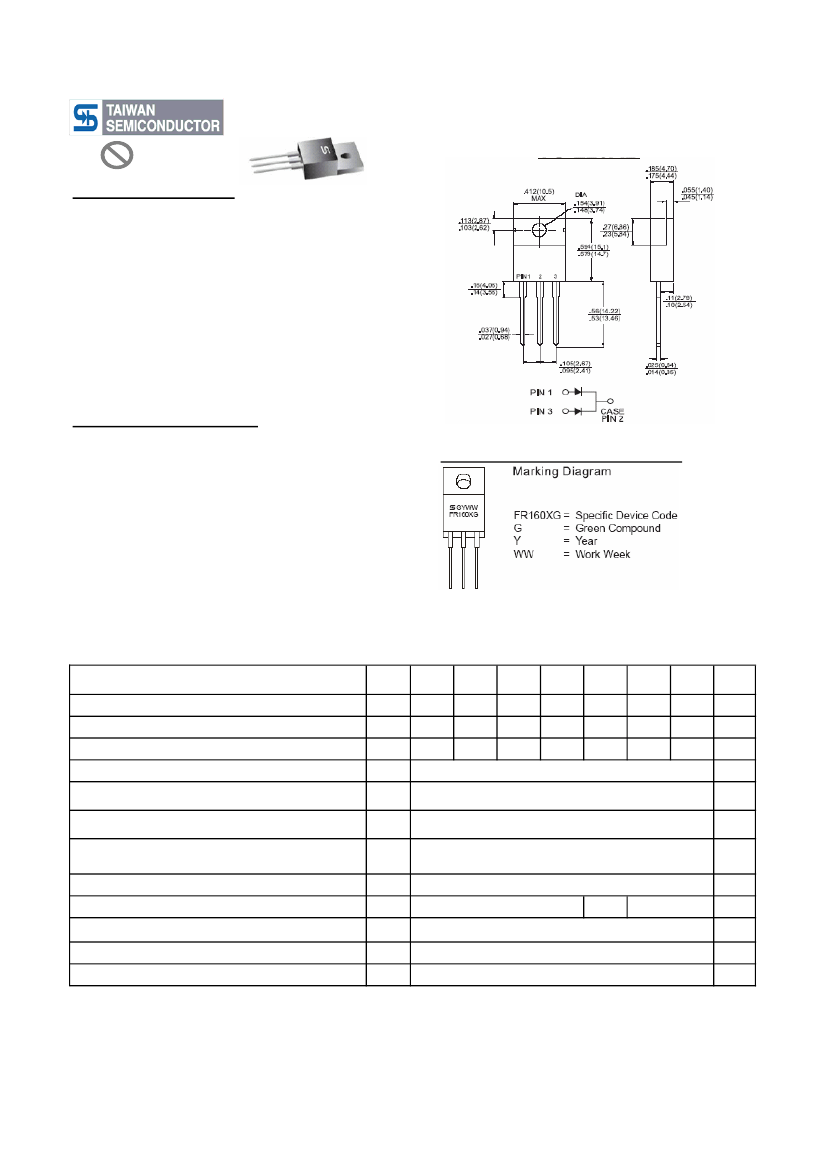

FR1601G - FR1607G
Pb
RoHS
COMPLIANCE
16.0 AMPs. Glass Passivated Fast Recovery Rectifiers
TO-220AB
Features
Glass
passivated chip junction.
High efficiency, Low VF
High Current capability
High reliability
High Surge current capability
Low power loss
For use in low voltage , high frequency inventor,
free wheeling and polarity portection application
Green compound with suffix "G" on packing code
& prefix "G" on datecode.
Mechanical Data
Cases: TO-220AB Molded plastic
Epoxy: UL 94V-O rate flame retardant
Terminal
: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260
o
C/10 seconds .16"(4.06mm) from case.
Weight: 2.24 gram
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified @Tc = 105℃
Peak Forward Surge Current, 8.3 ms Single Half Sine-
wave Superimposed on Rated Load (JEDEC method )
Maximum Instantaneous Forward Voltage @ 8.0A
Maximum DC Reverse Current @ T
A
=25℃
at Rated DC Blocking Voltage @ TA=125℃
Typical Junction Capacitance (Note 1)
Typical Reverse Recovery Time (Note 2)
Typical Thermal Resistance (Note 3)
Operating Temperature Range
Storage Temperature Range
Symbol
VRRM
VRMS
VDC
I(AV)
IFSM
VF
IR
Cj
TRR
RθJC
TJ
TSTG
150
3.0
-65 to +150
-65 to +150
FR
1601G
FR
1602G
FR
1603G
FR
1604G
FR
1605G
FR
1606G
FR
1607G
Units
V
V
V
A
A
V
uA
pF
50
35
50
100
70
100
200
140
200
400
280
400
16.0
150
1.3
5.0
100
60
600
420
600
800
560
800
1000
700
1000
250
500
O
nS
C/W
O
O
C
C
Note 1. Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C.
2. Reverse rRecovery Time Condition : IF=0.5A, IR=1.0A, IRR=0.25A
3. Mount on P.C. Board with 2"x3"x0.25" Al plate
Page :1 of 2
Version : C09
