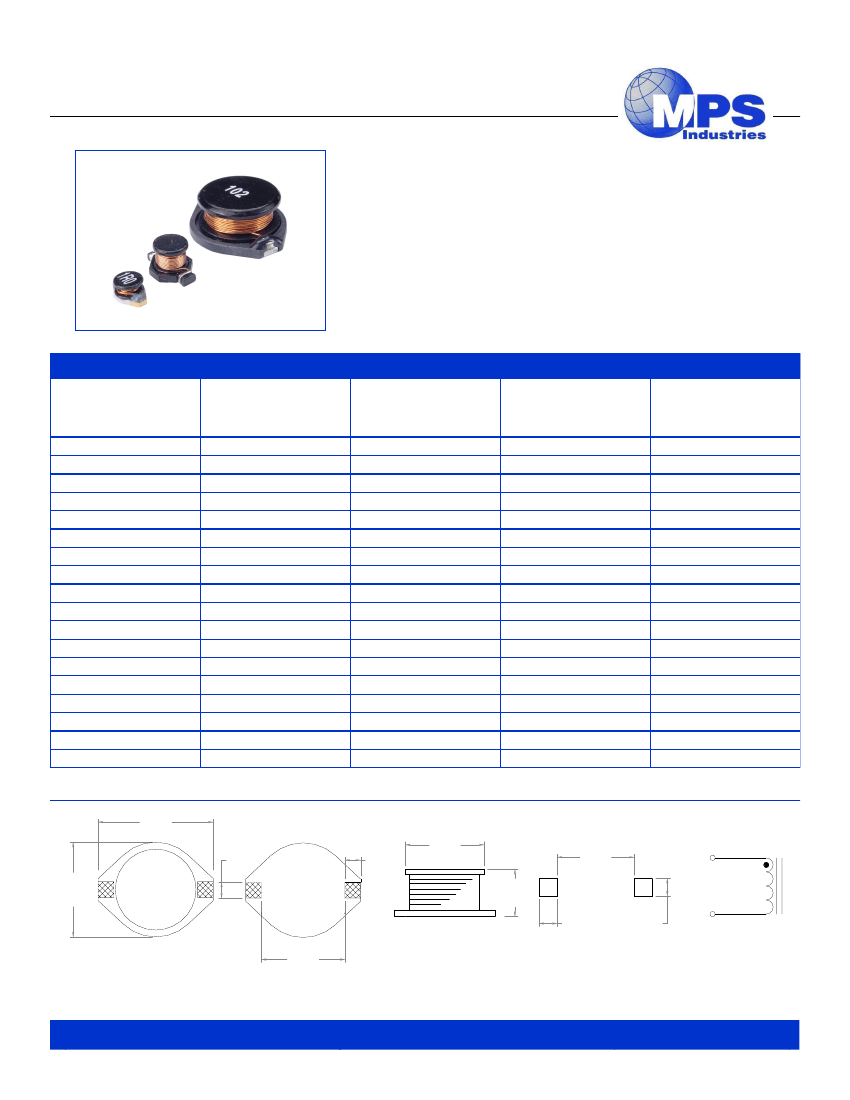

SMD POWER INDUCTOR
PX15022 SERIES
• RoHS Compliant Product
• Operating Temperature: -40°C to +85°C
• Inductance tested @ 100KHz, 0.1V
RMS
@ 0ADC
• Add -M for 20% standard inductance tolerance after part no.
• I
DC
: 10% inductance drop typical from its initial value at I
DC
• I
RMS
:
∆40°C
temperature rise max at I
RMS
• Marking: Value
ELECTRICAL SPECIFICATION @ 25°C
Part Number
PX15022-
102
222
332
562
822
103
153
223
333
473
683
104
154
224
334
474
684
105
L
±20%
(µH)
1.0
2.2
3.3
5.6
8.2
10
15
22
33
47
68
100
150
220
330
470
680
1000
I
DC
(A)
20.0
16.0
14.0
12.0
10.0
10.0
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
I
RMS
(A)
8.6
7.1
6.2
5.3
4.8
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
R
DC
MAX
(
W
)
0.009
0.014
0.018
0.020
0.029
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.10
1.80
Mechanical
0.730
[18.50]
max.
0.10
[2.54]
0.10
[2.54]
Schematic
0.50
[12.70]
0.49
[12.45]
0.30
[7.62]
max.
S
0.6
[15.24]
max.
0.12
[2.92]
0.50
[12.70]
0.11
[2.79]
F
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.010
mm: X,X : ± 0,38 X,XX : ±0,25
Suggested Pad Layout
Product performance is limited to specified parameter. Data is subject to change without prior notice.
PX15022-XX
