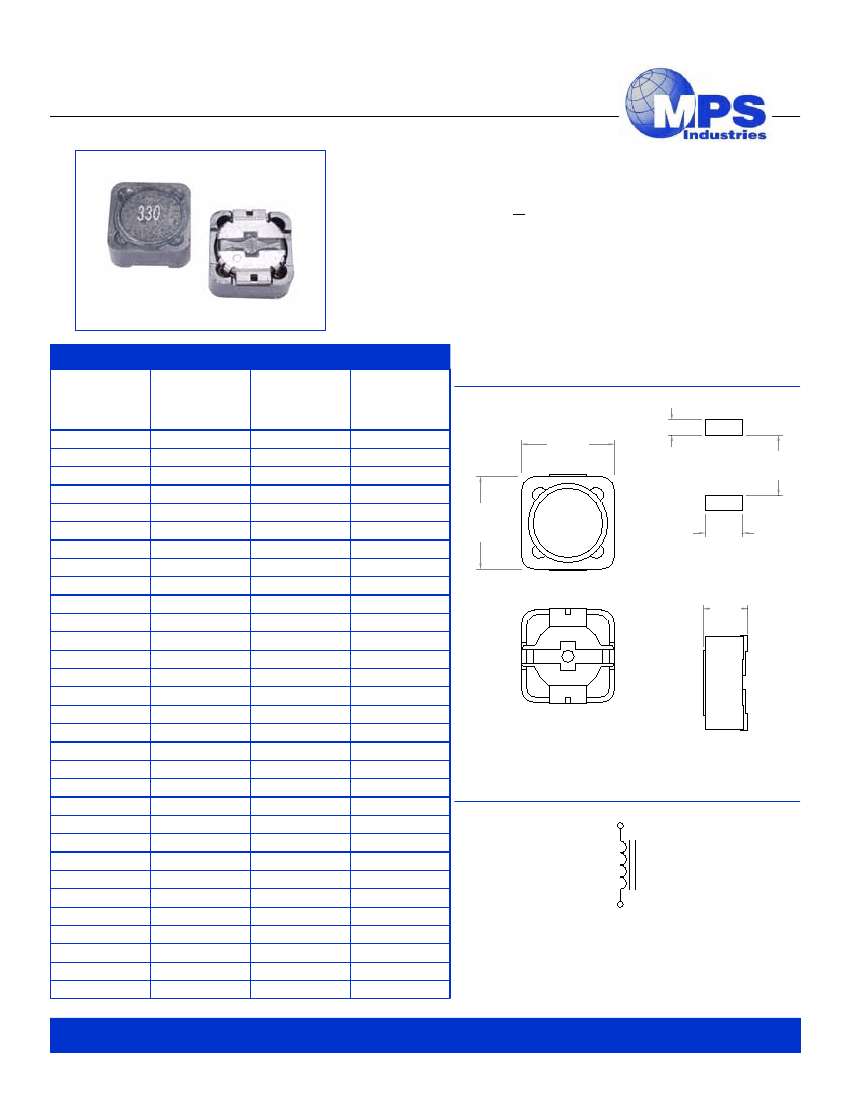

SHIELDED SMD POWER
INDUCTOR
P171205 SERIES
• RoHS Compliant Product
• Inductance measured : < 100µH : 100KHz, 0.25V
RMS
• Inductance measured :
>
100µH : 1KHz, 0.25V
RMS
• Inductance Tolerance: K=±10%, L=15±%, M=±20%
Add suffix letter for tolerance after the part number
• I
RATED
: Max 10% inductance drop and
∆T=40°C
Temp Rise
• Operating Temperature: -40°C to +85°C
ELECTRICAL SPECIFICATION @ 25°C
PART NO
P171205-
1R3
2R1
3R1
4R4
5R8
7R6
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
L
±20%
(µH)
1.3
2.1
3.1
4.4
5.8
7.6
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
DCR
Max
(W)
0.012
0.014
0.017
0.020
0.021
0.024
0.025
0.027
0.030
0.034
0.036
0.051
0.057
0.068
0.075
0.11
0.12
0.14
0.16
0.17
0.23
0.29
0.40
0.46
0.51
0.69
0.77
0.86
1.20
1.34
1.53
RATED
I
DC
(A)
8.00
7.00
6.00
5.00
4.40
4.20
4.00
3.50
3.30
3.00
2.80
2.30
2.10
2.00
1.80
1.70
1.50
1.40
1.30
1.10
1.00
0.90
0.80
0.75
0.68
0.65
0.58
0.54
0.48
0.43
0.40
Mechanical
0.083
[2.10]
0.319
[8.10]
0.49
[12.50]
max.
0.49
[12.50]
max.
0.201
[5.10]
Suggested Pad Layout
0.237
[6,00]
max
Schematic
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ± 0.015 .XXX : ±0.004
mm: X,X : ± 0,38 X,XX : ±0,10
Product performance is limited to specified parameter. Data is subject to change without prior notice.
P171205-XX
0602JW
