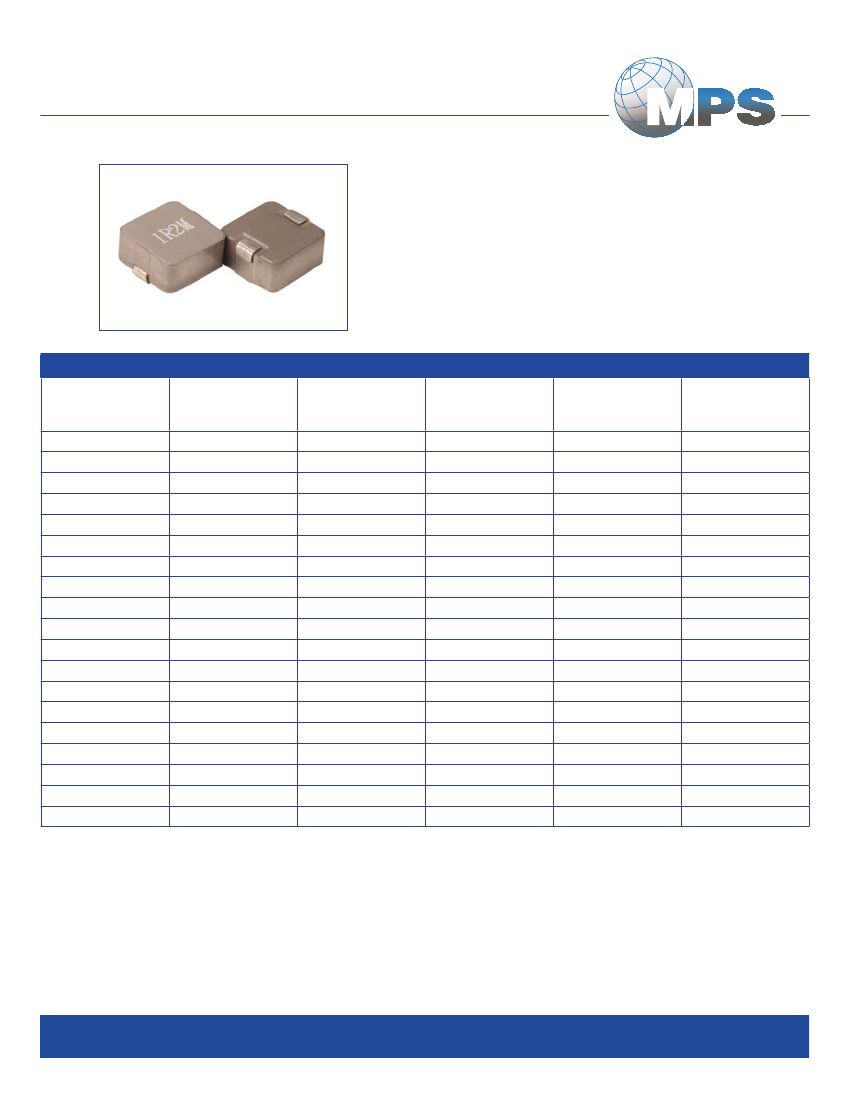

SHIELDED SMD
POWER INDUCTOR
PSE104 SERIES
(VRM)
•
Good for DC/DC converter and switch-mode power
supply applications
•
High current in compact package
•
Operating temperature range: -55
o
C to +120
o
C
•
RoHS compliant product
Industries
•
High current inductor for Voltage Regulated Module
ELECTRICAL SPECIFICATION @ 25
O
C
Part Number
PSE104-
R22M
R36M
R47M
R56M
R68M
R88M
1R0M
1R5M
1R8M
2R2M
3R3M
4R7M
5R6M
6R8M
8R2M
100M
150M
220M
330M
•
•
•
•
•
Inductance
(µH)
±20%
0.22
0.36
0.47
0.56
0.68
0.88
1.0
1.5
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10.0
15.0
22.0
33.0
DCR
(mΩ)
Typ
1.1
1.5
1.5
1.9
2.0
2.7
3.7
5.3
7.0
8.2
10.8
15.0
17.6
19.5
21.2
33.2
51.0
90.0
155.0
DCR
(mΩ)
Max
1.5
1.7
1.9
2.3
2.5
3.0
4.1
6.0
8.2
9.0
12
16.5
19.3
25.0
23.3
36.5
65.0
120.0
200.0
I
DC
(A)
Typ
32.0
31.5
27.5
27.5
23.0
20.0
17.5
15.0
15.0
12.0
10.0
9.5
8.5
8.0
8.0
6.8
3.5
2.0
1.8
I
SAT
(A)
Typ
50.0
50.0
49.0
49.0
40.0
38.0
36.0
27.5
27.5
25.6
18.6
17.0
16.0
14.0
13.5
12.0
7.0
3.0
2.8
Inductance measured at 100kHz / 0.1V
RMS
I
DC
: DC current (A) at which the ΔT of 40°C increase, typical
I
SAT
: DC current (A) for a ΔL drop 30% typical from initial value
Inductance tolerance M=20%
Ambient temperature: 125°C Max.
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015
.XXX : ±0.004
mm: X,X : ±0,38
X,XX : ±0,10
