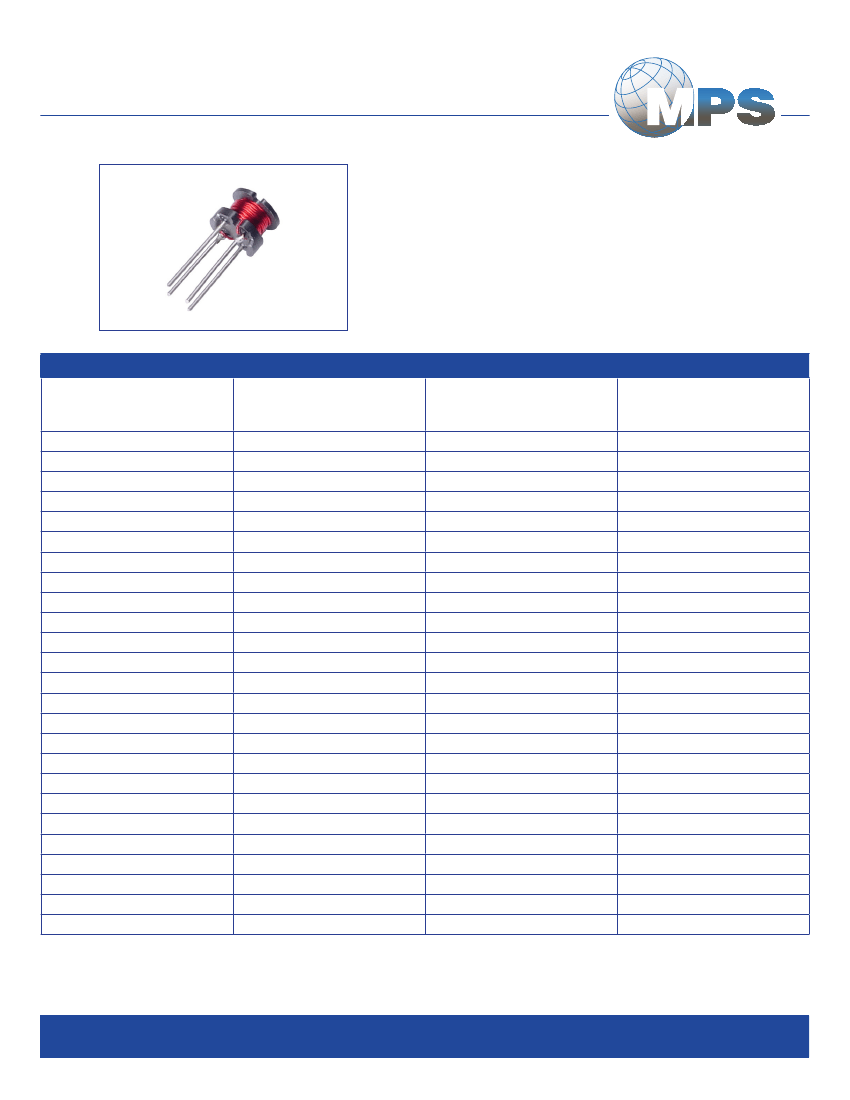

UNSHIELDED RADIAL
POWER INDUCTOR
P11R41010 SERIES
•
Low cost, high current
•
Inductance range from 10 - 1,000 µH
•
Open construction
• Optional inductance tolerance: K = ±10% (add suffix
letter for tolerance after the part number)
•
Operating temperature range: -40
o
C to +85
o
C
•
RoHS compliant product
Industries
ELECTRICAL SPECIFICATION @ 25
O
C
Part Number
P11R41010-
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
•
•
Inductance measured: 1KHz, 0.30V
RMS
I
RATED
: Max 10% drop and ΔT=40°C Temp Rise
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015
.XXX : ±0.004
mm: X,X : ±0,38
X,XX : ±0,10
Inductance
(µH)
(±20%)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
DCR
(Ω)
(Max)
0.022
0.023
0.026
0.033
0.037
0.048
0.055
0.073
0.083
0.092
0.12
0.14
0.16
0.20
0.23
0.31
0.34
0.40
0.52
0.65
0.71
1.00
1.10
1.30
1.70
RATED
I
DC
(A)
5.30
4.90
4.40
4.00
3.60
3.30
2.90
2.70
2.50
2.30
2.10
1.90
1.70
1.50
1.40
1.30
1.10
1.00
0.93
0.86
0.78
0.71
0.65
0.59
0.53
Product performance is limited to specified parameters. Data is subject to change without prior notice.
13200 Estrella Ave., Bldg. B
Gardena, CA 90248
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
UNSHIELDED RADIAL
POWER INDUCTOR
P11R41010 SERIES
Industries
DIMENSIONS
A = 10.0 ± 0.5
B = 10.0 ± 0.5
C = 3.5 ± 0.5
mm
mm
mm
mm
mm
mm
mm
E
D
D = 0.6 ± 0.1
F
G
E = 4.0 ± 0.5
F = 5.0 ± 0.5
G = 6.5 ± 0.4
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015
.XXX : ±0.004
mm: X,X : ±0,38
X,XX : ±0,10
13200 Estrella Ave., Bldg. B
Gardena, CA 90248
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
