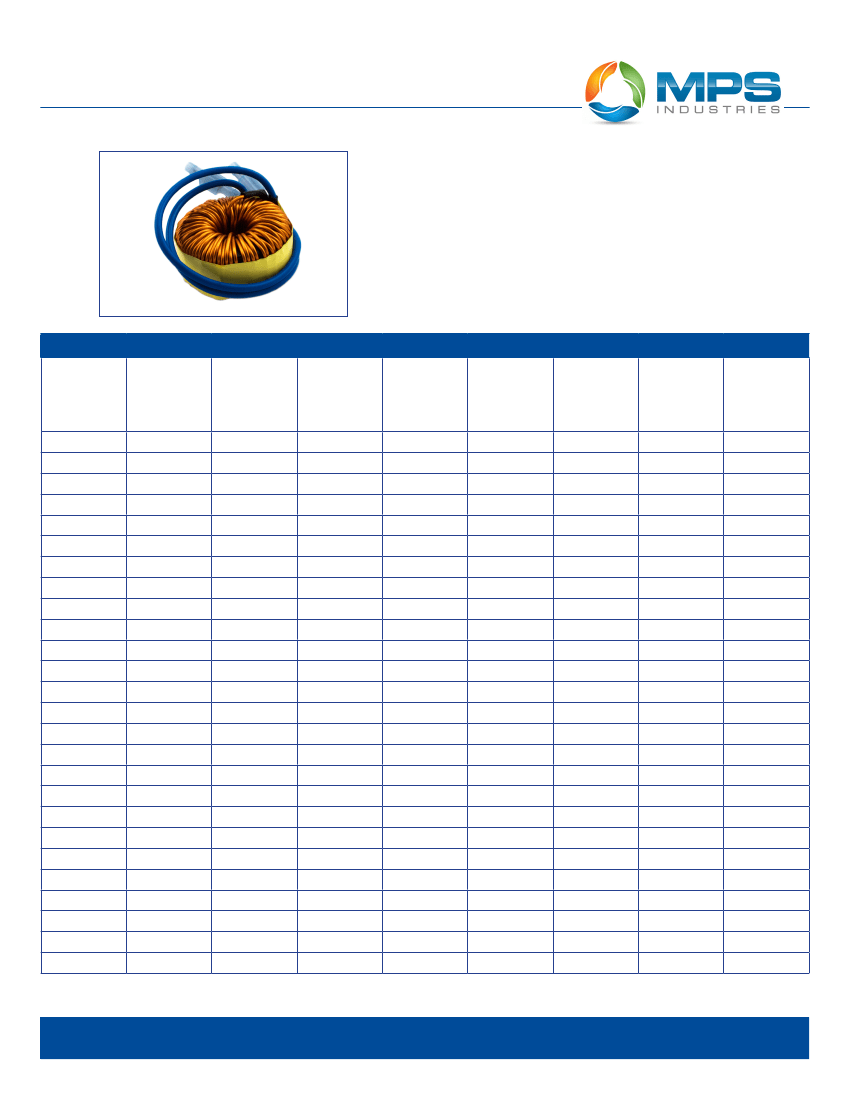

PASSIVE POWER FACTOR
CORRECTION INDUCTORS
P191 SERIES
•
•
•
•
•
•
•
Design for power factor correction with high flux density material
20% to 50% smaller than traditional designs
Switching Frequency: 32KHz Min.
AC Line Voltage: 265Vac Max.
High Frequency 200 kHz – 700 kHz
Operating Temperature: -40°C to +130°C
Custom Design Available
ELECTRICAL PARAMETERS @ 25°C
Part Number
P191-
301-1
501-1
751-1
102-1
152-1
202-1
301-2
501-2
751-2
102-2
152-2
202-2
301-3
501-3
751-3
102-3
152-3
301-5
501-5
751-5
102-5
152-5
301-7
501-7
751-7
102-7
L
(μH ±15%)
300
500
750
1000
1500
2000
300
500
750
1000
1500
2000
300
500
750
1000
1500
300
500
750
1000
1500
300
500
750
1000
R
DC
(Ω MAX)
0.50
0.65
0.90
1.20
1.20
2.00
0.32
0.40
0.60
0.80
0.85
0.95
0.20
0.30
0.32
0.40
0.43
0.10
0.15
0.18
0.20
0.26
0.06
0.10
0.13
0.18
I
DC
(A)
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
2.0
2.0
2.0
3.0
3.0
3.0
3.0
3.0
5.0
5.0
5.0
5.0
5.0
7.0
7.0
7.0
7.0
DIM
A Max
(mm)
21.0
21.0
23.0
25.0
27.5
29.0
26.0
29.0
31.0
32.0
34.0
34.0
30.0
31.0
34.0
36.0
43.0
35.0
42.0
47.0
49.0
55.0
45.0
51.0
57.0
57.0
DIM
B Max
(mm)
11.0
11.0
12.5
11.0
12.5
13.5
12.0
14.0
17.0
18.0
19.0
19.0
15.0
16.5
18.0
20.0
21.0
20.0
17.0
21.0
23.0
25.0
23.0
26.0
27.0
27.0
DIM
C Nom
(mm)
9.0
9.0
10.0
9.0
10.5
11.0
10.0
11.0
13.0
14.0
15.5
15.5
11.5
12.5
15.5
16.0
16.0
16.0
15.0
18.0
19.0
20.0
18.0
20.0
21.0
21.0
DIM
D Nom
(mm)
18.0
18.0
20.0
22.5
25.0
26.0
23.0
26.0
28.0
29.0
30.0
30.0
26.5
27.5
31.0
32.0
39.0
31.5
37.5
43.5
45.0
51.5
39.0
46.0
52.5
52.5
DIM
E Nom
(mm)
0.40
0.40
0.40
0.40
0.40
0.40
0.60
0.60
0.60
0.60
0.60
0.60
0.80
0.80
0.80
0.80
0.80
1.00
1.00
1.00
1.00
1.00
1.30
1.30
1.30
1.30
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
PASSIVE POWER FACTOR
CORRECTION INDUCTORS
P191 SERIES
ELECTRICAL PARAMETERS @25°C
Part Number
P191-
301-10
501-10
751-10
102-10
L
(μH ±15%)
300
500
750
1000
R
DC
(Ω MAX)
0.05
0.06
0.08
0.09
I
DC
(A)
10.0
10.0
10.0
10.0
DIM
A Max
(mm)
53.0
63.0
73.0
77.0
DIM
B Max
(mm)
27.0
31.0
32.0
36.0
DIM
C Nom
(mm)
21.0
24.0
26.0
28.0
DIM
D Nom
(mm)
47.0
55.0
68.0
70.0
DIM
E Nom
(mm)
1.73
1.73
1.73
1.73
NOTES:
•
Inductance test @ 10KHz, 0.1V
RMS
•
I
DC
: 10% roll off Typ (20% Max.) from initial inductance value
•
Add -V for Vertical Mount, -H for Horizontal Mount, -W for Hook Up wire
•
Extended length hook up wire with Fast-On available on request

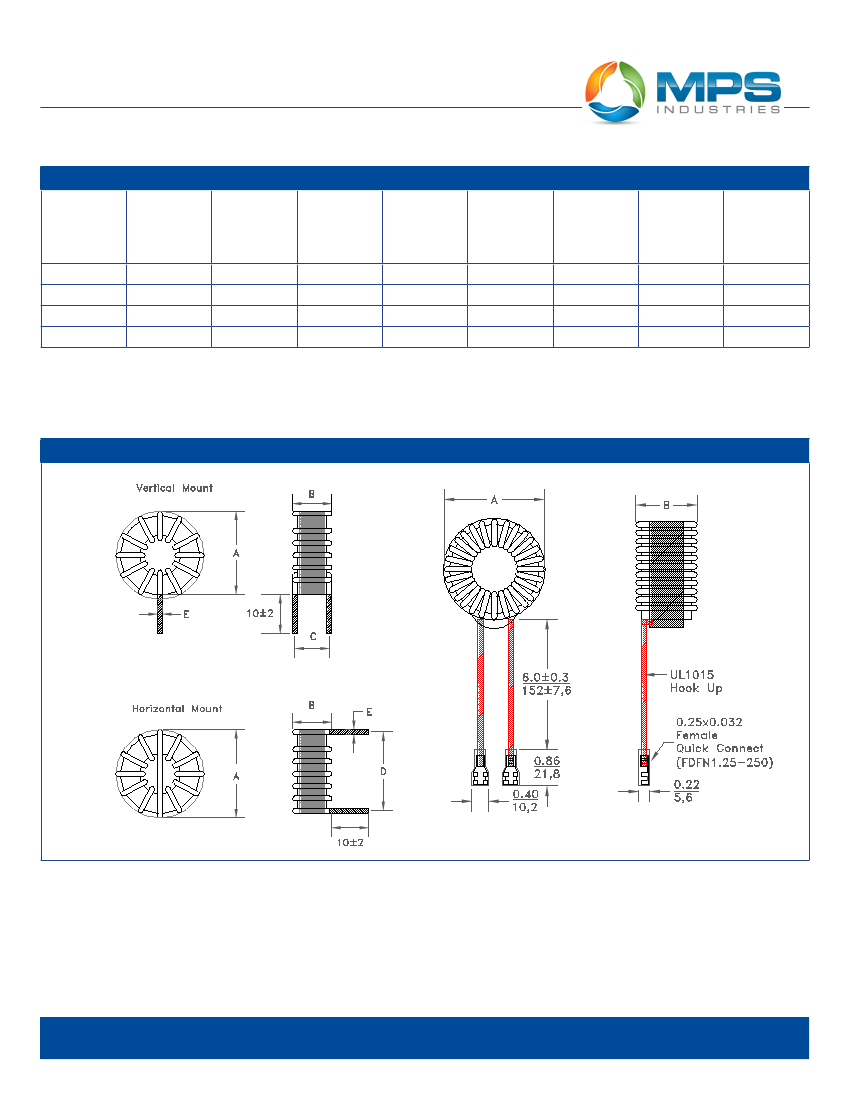

DIMENSIONS (mm)
Product performance is limited to specified parameters. Data is subject to change without prior notice.
Dimensions
Unless otherwise specified, all tolerances are:
inch: .XX : ±0.015 .XXX : ±0.004
mm: X,X : ±0,38 X,XX : ±0,10
Tel: 310-325-1043
Fax: 310-325-1044
www.mpsind.com
sales@mpsind.com
