N5101-6: Description1XN RJ-45 10/100 BASE-T JACK WITH MAGNETIC MODULE; File Size411KB，3 Pages; ManufacturerMPS Industries; Websitehttp://www.mpsind.com/index.html

Download Datasheet Compare View All

N5101-6 Overview

1XN RJ-45 10/100 BASE-T JACK WITH MAGNETIC MODULE

Preview

Download Datasheet

View All

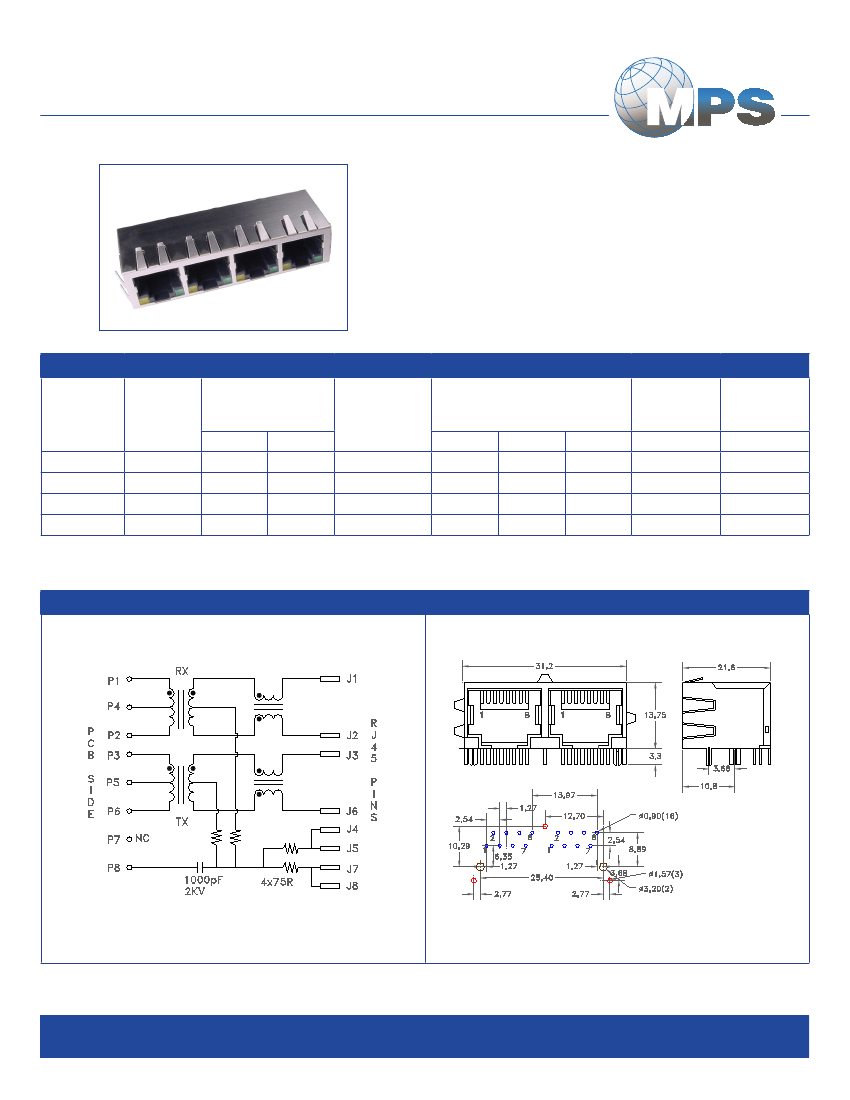

1XN RJ-45 10/100 BASE-T JACK

WITH MAGNETIC MODULE

N5101 SERIES

•

Available with and without LEDs

•

Suitable for CAT 5 and 6 Fast Ethernet cable or better

UTP

•

Minimum 1500V

RMS

isolation per IEEE 802.3 requirement

•

Operating temperature range: 0

o

C to +70

o

C

•

RoHS compliant product

Industries

•

RJ-45 1xN, Tab-Down, 8 pin with internal magnetics

ELECTRICAL SPECIFICATION @ 25

O

C

Part

Number

1xN

TX

N5101-2

N5101-4

N5101-6

N5101-8

•

1x2

1x4

1x6

1x8

1CT:1

Turns

Ratio

±2%

RX

1CT:1

Insertion

Loss

0.1-100MHz

(dB) Max

-1.1

Retrun Loss

(dB) Min

MHz

1-30

-18

Cross Talk

(dB) Typ

MHz

60-80

-12

CMR

(dB) Typ

MHz

30-100

-35

30-60

-14

1-100

-40

Inductance: 350μH Min @ 100KHz, 0.1V

RMS

with 8mA DC

Hipot: 1500V

RMS

, 1 minute

SCHEMATIC

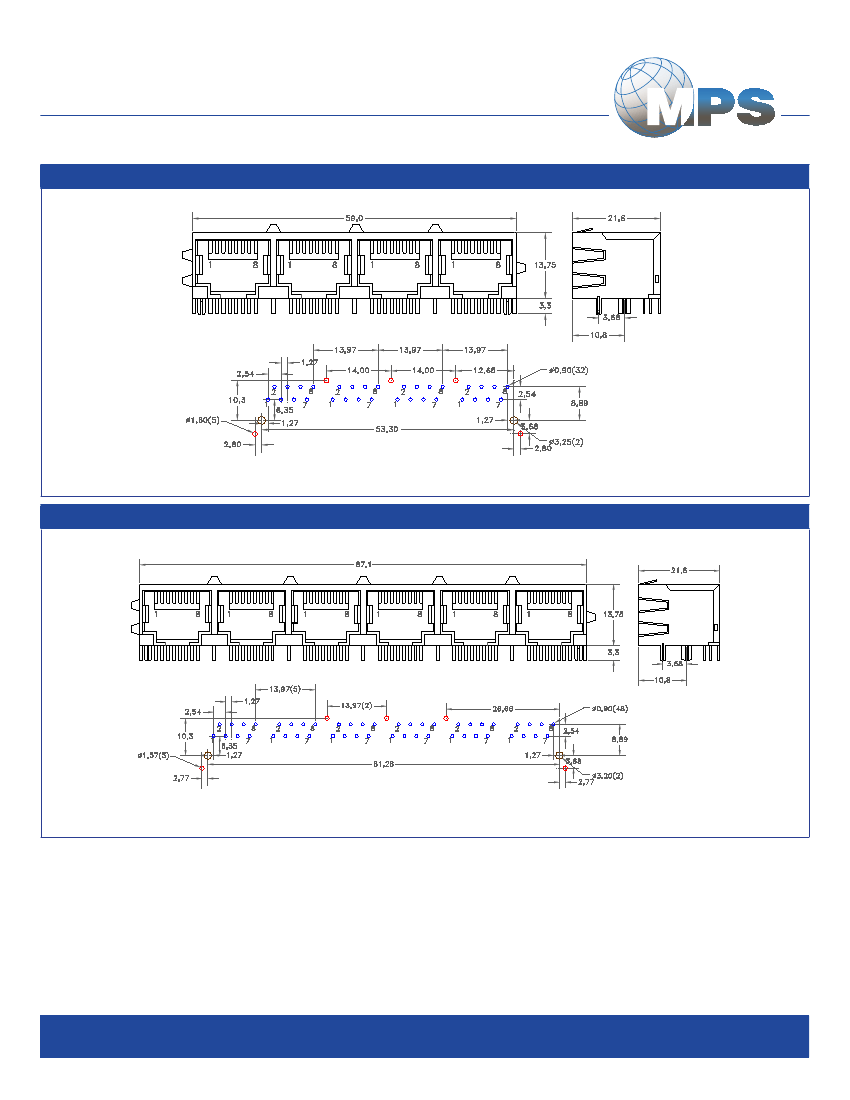

DIMENSIONS: N5101-2

Product performance is limited to specified parameters. Data is subject to change without prior notice.

Dimensions

Unless otherwise specified, all tolerances are:

inch: .XX : ±0.015

.XXX : ±0.004

mm: X,X : ±0,38

X,XX : ±0,10

13200 Estrella Ave., Bldg. B

Gardena, CA 90248

Tel: 310-325-1043

Fax: 310-325-1044

www.mpsind.com

sales@mpsind.com
