JA23333-DA1Q-4F datasheet, PDF

Datasheet> All Categories > The connector> The connector> JA23333-DA1Q-4F

JA23333-DA1Q-4F: DescriptionAudio/RCA Connector, 9 Pole(s), Female, Solder Terminal, Locking, Jack, LEAD FREE; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

JA23333-DA1Q-4F Overview

Audio/RCA Connector, 9 Pole(s), Female, Solder Terminal, Locking, Jack, LEAD FREE

JA23333-DA1Q-4F Parametric

Parameter Name	Attribute value
Maker	FOXCONN
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SOLDERABLE RETENTION CLIPS
body width	1.012 inch
subject depth	0.801 inch
body length	0.498 inch
Body/casing type	JACK
Configuration	2X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	100 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	1500 Cycles
IEC compliance	NO
insulator material	THERMOPLASTIC
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of poles	9
Number of ports	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Termination type	SOLDER

JA23333-DA1Q-4F Preview

Download Datasheet

View All

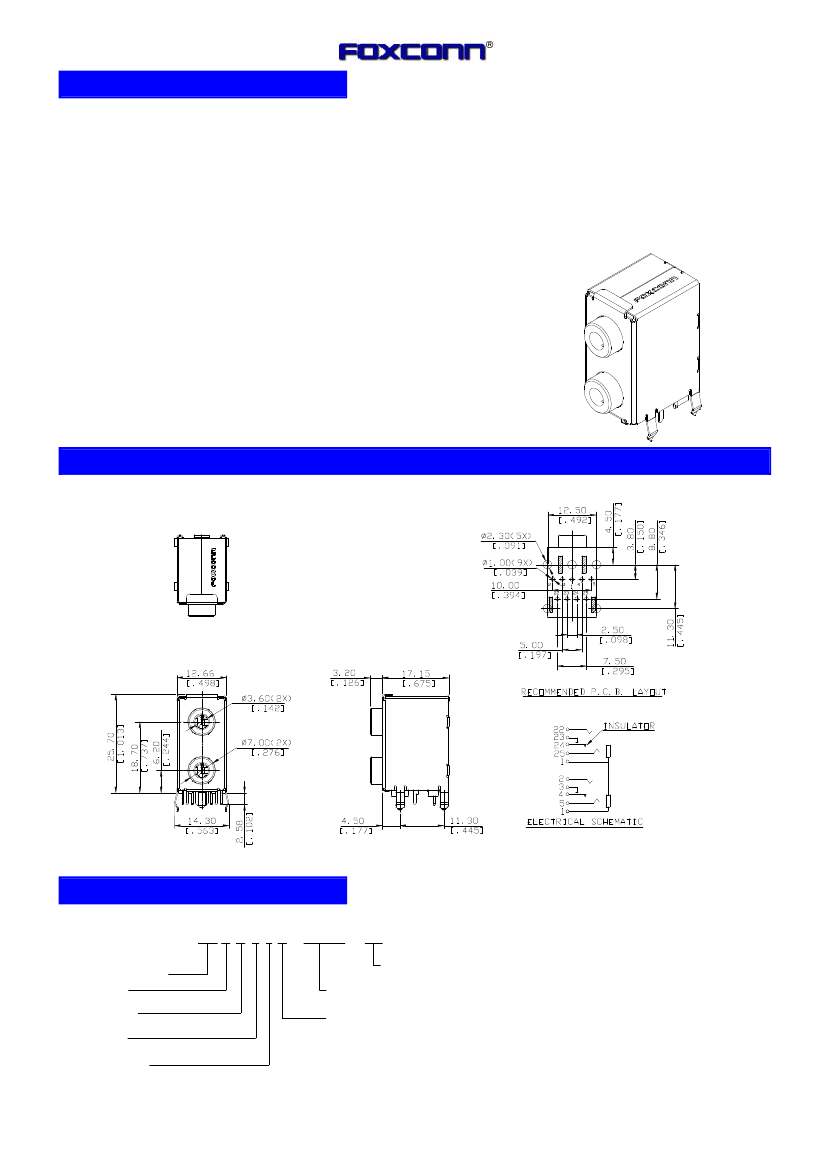

SPECIFICATIONS

Audio Jack Connector

JA Series

2 Port HD, R/A, T/H Type

3.5mm [.138"]

9 Pos.

Mechanical

Plug Mating Force:

3.00kg (6.61Lb) max.

Plug Unmating Force:

0.40~3.00kg (0.88~6.61Lb)

Contact Retention Force:

0.50kg (1.10Lb) min.

Durability:

1500 Cycles

Electrical

Current Rating:

1.00A

Contact Resistance:

50mΩ max.(Initial)

100 mΩ max.(After life test).

Dielectric Withstanding Voltage:

500V AC/1min min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-25℃ to +85℃

Recommended Thickness of PCB:

1.60[.063]

DRAWING

ORDERING INFORMATION

PRODUCT NO.: JA 2 3 3 3 3 - DA1Q - 4F

Audio Jack Series

Body Type

2=Stack Jack

Lead Free Code

4F=Lead Free

Extension Code

Contact Area Plating

3=30u'' Au Plating

Sleeve Style

3=All Plastic Cylindrical

Plug Type

3=Three Band

Plug Diameter

3=3.50mm

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
