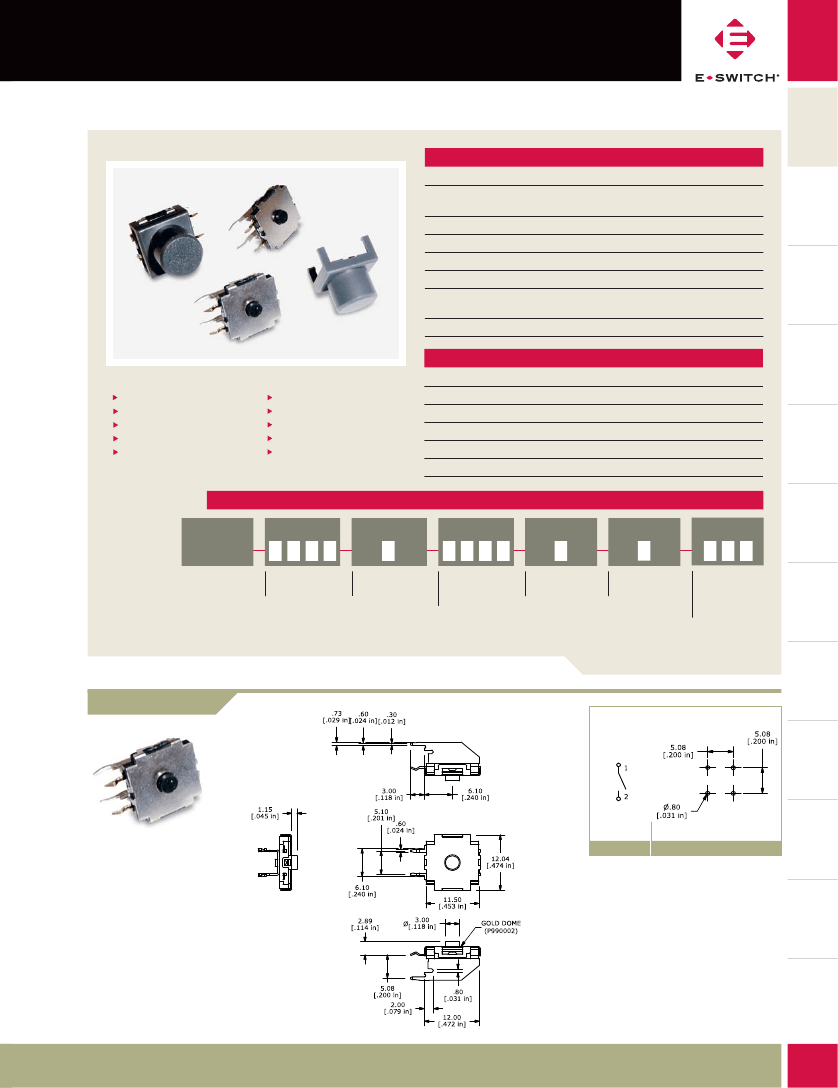

SERIES TL 6190 SWITCHES
SPECIFICATIONS
Life Expectancy (Mechanical):
Life Expectancy (Electrical):
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
100,000 cycles
100,000 cycles
100mΩ max. intial
100MΩ (Min@ 100V)
500 VDC
220 ± 60 gf
PUSHBUTTON
SWITCHES
BUTTON
COLOR
GRY = Gray
BLK = Black
WHT= White
RED = Red
P.C. MOUNTING
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
SCHEMATIC
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
ROCKER
SWITCHES
TOGGLE
SWITCHES
BUTTON
R = Round
Specifications subject to change without notice.
Operating Temperature (Switch): -40°C to +105°C
Operating Temperature (Button): -40°C to +85°C
Travel:
0.50 ± 0.20mm
MATERIALS
FEATURES & BENEFITS
Reliable dome technology
Strong tactile force
Multiple operating force
Process sealed
Right angle
APPLICATIONS/MARKETS
Telecommunications
Consumer electronics
Audio/visual
Medical equipment
Computer/servers/peripherals
Housing:
Cover:
Actuator:
Bracket:
Terminals:
Contact:
Nylon
Stainless Steel
Silicone rubber
Tin, plated
Copper alloy, plated
Copper alloy, plated
HOW TO ORDER
SERIES
MODEL NO.
ACTUATOR
("L" Dimension)
OPERATING
FORCE
PLATING
TL
TL
6190
A = 2.90mm
F160
F220
F320
Q = Silver
R = Gold
Example Ordering Number
TL
_
6190_ A_ F220_ Q
_
R_ GRY
TL 6190
www.e-switch.com
info
@
e-switch.com
NAVIGATION
SWITCHES
Contact Rating:
50mA@12 VDC
TACT
SWITCHES
TACT SWITCHES - SEALED RIGHT ANGLE
▲
▲
▲
▲
▲
▲
39
