UB1113C-4R1-4F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> UB1113C-4R1-4F

UB1113C-4R1-4F: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

UB1113C-4R1-4F Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE

UB1113C-4R1-4F Parametric

Parameter Name	Attribute value
Maker	FOXCONN
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	USB CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0

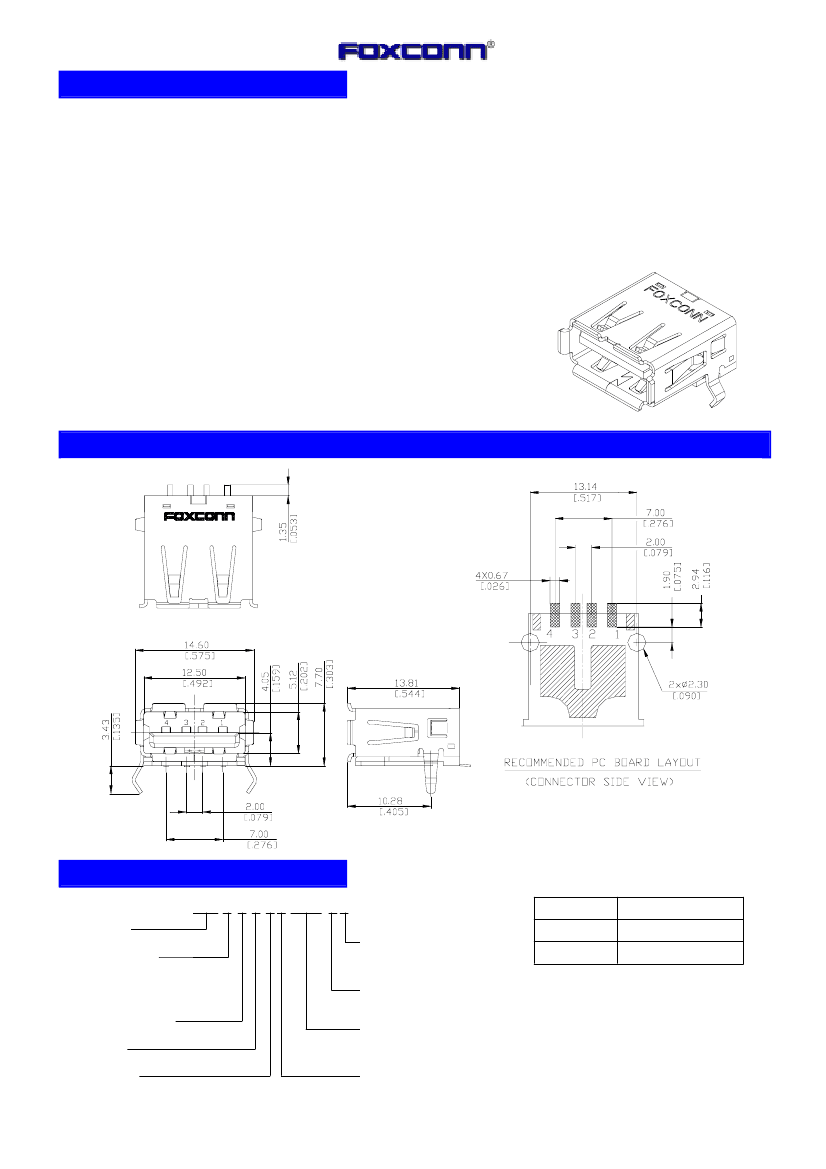

UB1113C-4R1-4F Preview

SPECIFICATIONS

USB Connector

UB Series

Right Angle, SMT

4 Pos.

Mechanical

Mating Force:

3.50Kg (7.71Lb) max.

Unmating Force:

1.00Kg (2.20Lb) min.

Durability:

1500 Cycles

Electrical

Current Rating:

1.5A

Contact Resistance:

30m

Ω

max.

Dielectric Withstanding Voltage:

500V AC/1min min.

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated

Contact and Shell:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-55

℃

to +85

℃

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: UB 5 1 1 2 *-4R1-4 F

USB Series

USB A Type

UB5112C-4R1-4F

Lead Free Type

F= Lead Free

UB51123-4R1-4F

30u" Pd/Ni+GOLD FLASH

AT CONTACT AREA

30u" GOLD PLATED

AT CONTACT AREA

Termination Type

0= Straight

1= Right Angle

3= Up Right

5= SMT

P/N

PLATING

Package Code

4= Soft Tray

Contact Design Type

1= Female

Modification Code

No. of Pos

1= 4 Pos

Profile Height

2= 4.13 [.163]

3= 6.50 [.256]

Contact Area Plating

3= 30u" Gold

C= 30u" Pd/Ni+Gold Flash

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
