APM Series
FEATURES
Compact Proximity Sensors
Compact Proximity Sensors Can be Installed Anywhere.
Locking Boss Ensures Easy Mounting.
•
•
•
•
•
click
This thin 5.9mm (side sensing type) sensor takes up little space.
8mm wide, compact with a 2.5mm sensing range.
Locking boss allows easy mounting by single screw. Mounting bracket not
required. (locking boss type)
Indicator lamp visible from all three directions allows easy checking of the
operating state.
Wide variety of sensor types support all kinds of applications.

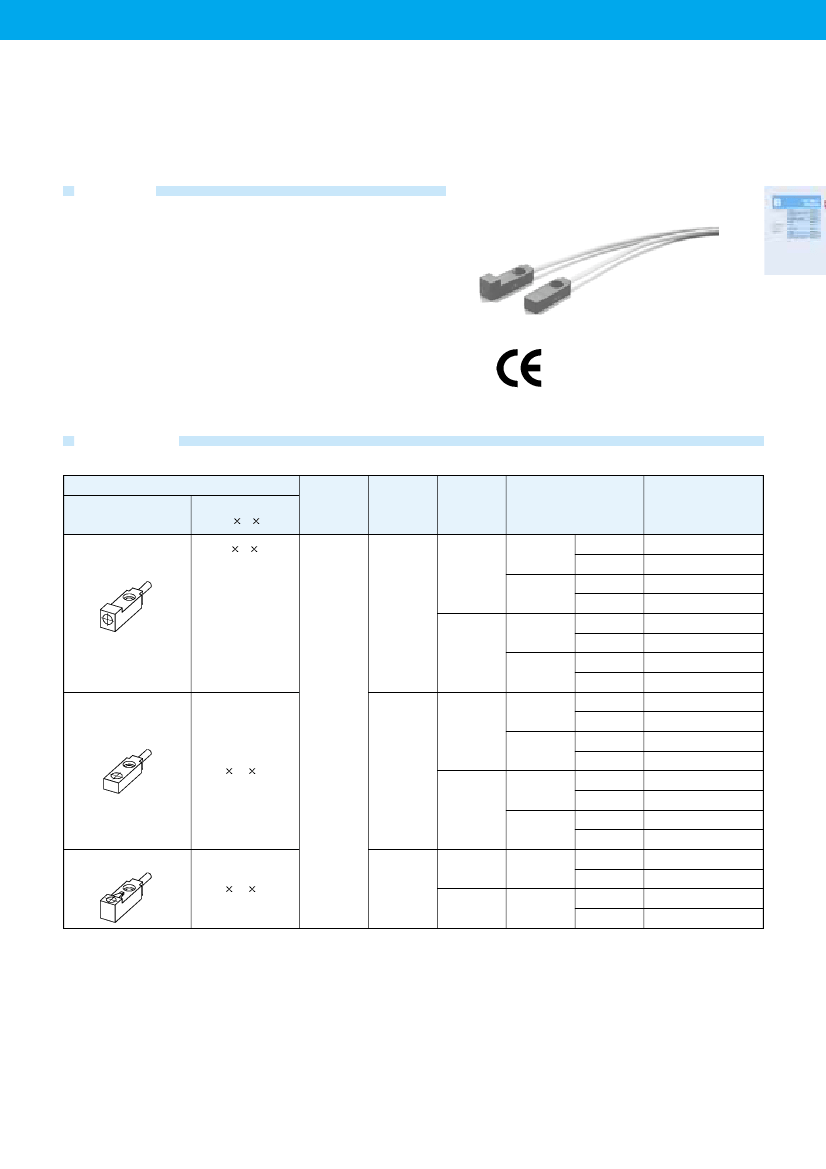

ORDER GUIDE
•
DC 3-wire type
Appearance
Sensor package style
Top sensing type
Dimensions (mm)
W D H
8
D
H
Not
provided
PNP
Top
NPN
Provided
PNP
Side sensing type
2.5
Not
provided
PNP
8
25
5.9
Side
NPN
Provided
PNP
Side sensing type
8
25
7.5
Side
Provided
NPN
Not
provided
Sensing
distance
(mm)
Location
of sensing
face
Locking
boss
Output/operation mode
(open collector)
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
Catalog listing
NPN
APM-A3A1
APM-A3B1
APM-A3D1
APM-A3E1
APM-B3A1
APM-B3B1
APM-B3D1
APM-B3E1
APM-C3A1
APM-C3B1
APM-C3D1
APM-C3E1
APM-D3A1
APM-D3B1
APM-D3D1
APM-D3E1
APM-C3A1-S
APM-C3B1-S
APM-D3A1-S
APM-D3B1-S
(sensing face)
D=5.9
H=9.4
(body)
D=21.6
H=5.9
NPN
NPN
Note:
Different-frequency types also available for all models. These types are appended with the letter ‘‘-F’’ is used.
Example: Different-frequency type of
APM-C3A1
is expressed as
APM-C3A1F.
‘‘Different-frequency type’’ is a type having an oscillation frequency different to that of the standard type to reduce the influence of mutual inter-
ference. Select this type when mounting two or more proximity sensors close to each other.
For details, contact your nearest Yamatake dealer.
1
No. CP-PC-2173E
•
DC 2-wire type
Appearance
Sensor package style
Top sensing type
Dimensions (mm)
W D H
8 D H
(sensing face)
D=5.9 H=9.4
(body)
D=21.6 H=5.9
Sensing
distance
(mm)
Location
of sensing
face
Locking
boss
Not
provided
Top
Provided
Not
provided
8
25
5.9
2.5
Side
Provided
Side sensing type
8
25
7.5
Side
Provided
Not
provided
Operation
mode
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
N.C.
Catalog listing
APM-A3J1
APM-A3K1
APM-B3J1
APM-B3K1
APM-C3J1
APM-C3K1
APM-D3J1
APM-D3K1
APM-C3J1-S
APM-C3K1-S
APM-D3J1-S
APM-D3K1-S
Side sensing type
SPECIFICATIONS
•
DC 3-wire type
Item
Actuation method
Rated supply voltage
Rated sensing distance
Usable sensing distance
Standard target object
Differential travel
Operating voltage range
Current consumption
Output mode
Operation mode
Control
output
Switching current
Voltage drop
Output dielectric strength
Operating frequency
Hysteresis
Temperature characteristics
Supply voltage characteristics
Indicator lamps
Operating temperature range
Storage temperature range
Operating humidity range
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Protection
Weight
Circuit protection
Wiring method
Case material
Tightening torque
2% max. with
NPN transistor open collector
Normally open (N.O.)
Normally closed (N.C.)
15
Standard catalog listing
APM- 3A1
(-S)
APM- 3B1
(-S)
12/24Vdc
2.5mm,
15%
0 to 1.8mm
15mm, 1mm thick iron
15% max. of sensing distance
10.8 to 26.4Vdc (ripple voltage 10% max.)
10mA max.
PNP transistor open collector
Normally open (N.O.)
Normally closed (N.C.)
APM- 3D1
APM- 3E1
High-frequency oscillation type (unshielded type)
30mA max. (resistive load)
1V max. (switching current 30mA)
26.4V
120Hz
0.05mm max.
15% max. for the range of ~10 to +55˚C when +25˚C is taken as standard temperature in sensing distance
10% voltage fluctuation with rated supply voltage as standard voltage in sensing distance
Lights (red) when object approaches
~10 to +55˚C
~25 to +70˚C
35 to 85% RH
50M min. (by 500Vdc megger)
1,000Vac, 50/60Hz for 1 minute between case and electrically live metals
10 to 55Hz, 1.5mm peak-to-peak amplitude, 2hrs in X, Y and Z directions
500m/s
2
3 times in X, Y and Z directions
IP67 (IEC 529)
Approx. 10g
Surge absorption, reverse connection protection circuit
Pre-leaded (oil-resistant cord: 2.5mm O.D., 0.08mm
2
, 3-core, 1m)
Polyalylate resin
0.5N-m (M2.6 screw)
• Installation Instructions No.:
CP-UM-3162E
Note:
Normally open: Load operates when object approaches the sensor (output circuit ON when detected).
Normally closed: Load is reset when object approaches the sensor (output circuit ON when not detected).
2
•
DC 2-wire type
Stanard catalog listing
Actuation method
Rated supply voltage
Rated sensing distance
Usable sensing distance
Standard target object
Differential travel
Operating voltage range
Leakage current
Operation mode
Control
output
Switching current
Voltage drop
Output dielectric strength
Operating frequency
Temperature characteristics
Supply voltage characteristics
Indicator lamps
Operating temperature range
Storage temperature range
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Protection
Weight
Circuit protection
Wiring method
Case material
Tightening torque
Normally open (N.O.)
3 to 50mA
3V max.
30Vdc
1,500Hz
10% max. for the range of ~10 to +55˚C when +25˚C is taken as standard temperature in sensing distance
15% max. for the range of ~25 to +70˚C when +25˚C is taken as standard temperature in sensing distance
2% max. with
10% voltage fluctuation with rated supply voltage as standard voltage in sensing distance
Lights (red) when object approaches
~10 to +55˚C (Note
1)
~25 to +70˚C
50M min. (by 500Vdc megger)
1,000Vac, 50/60Hz for 1 minute between case and electrically live metals
10 to 55Hz, 1.5mm peak-to-peak amplitude, 2hrs in X, Y and Z directions
500m/s
2
3 times in X, Y and Z directions
IP67 (IEC 529)
Approx. 10g
Surge absorption, reverse connection protection circuit
Pre-leaded (oil-resistant cord: 2.5mm O.D., 0.08mm
2
, 3-core, 1m)
Polyalylate resin
0.5N-m (M2.6 screw)
15
APM- 3J1(-S)
APM-
3K1(-S)
High-frequency oscillation type (unshielded type)
12/24Vdc
2.5mm,
15%
0 to 1.8mm
15mm, 1mm thick iron
7% max. of sensing distance
10 to 30Vdc
0.65mA max. (24Vdc)
Normally open (N.O.)
• Installation Instructions No.:
CP-UM-3162E
Note 1:
~25 to +70˚C when
APM-PA01
mounting bracket (sold separataly) is used.
3

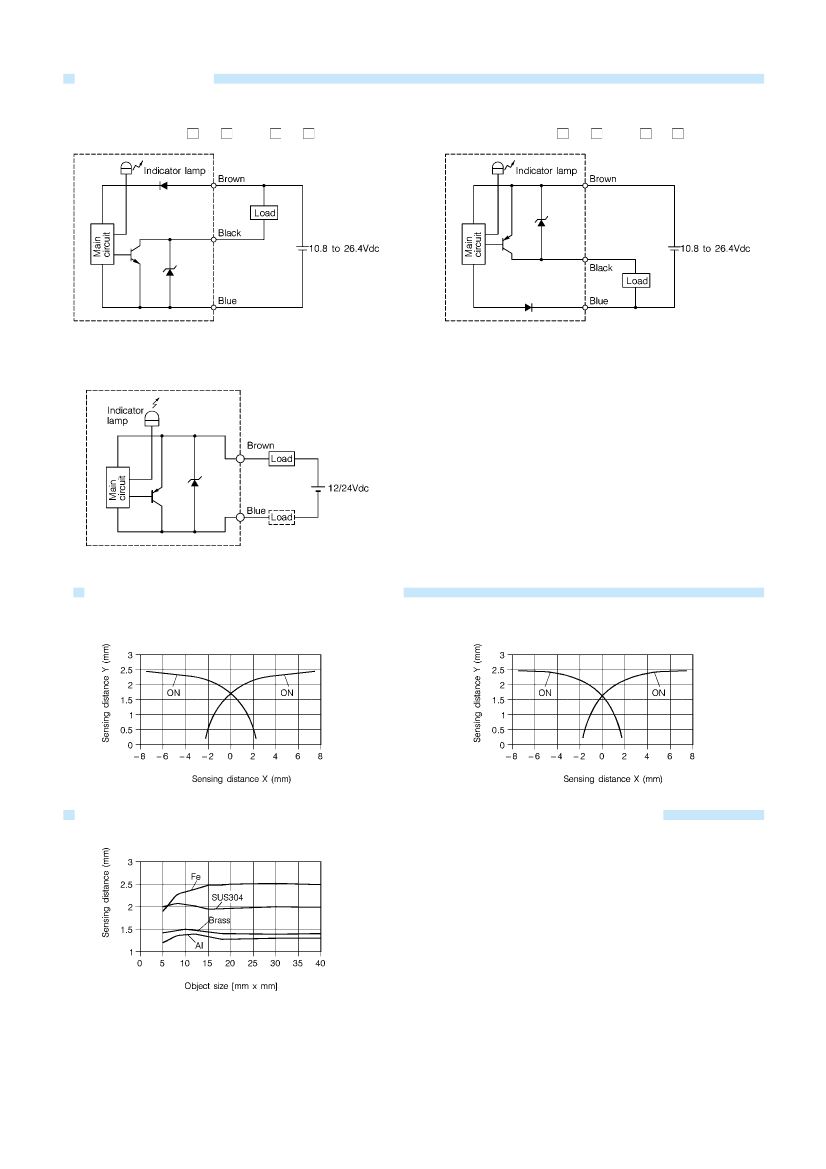

WIRING DIAGRAMS
•
DC 3-wire type
•
NPN transistor, open collector type
(Catalog listing
APM- 3A1
,
APM- 3B1
)
•
PNP transistor, open collector type
(Catalog listing
APM- 3D1
,
APM- 3E1
)
•
DC 2-wire type
•
All catalog listing
The load can be connected to either of the power supplies.
SENSING AREA DIAGRAMS (typical examples)
•
Side sensing type
•
Top sensing type
SENSING DISTANCE ACCORDING TO MATERIAL & SIZE OF OBJECT (typical example)
4

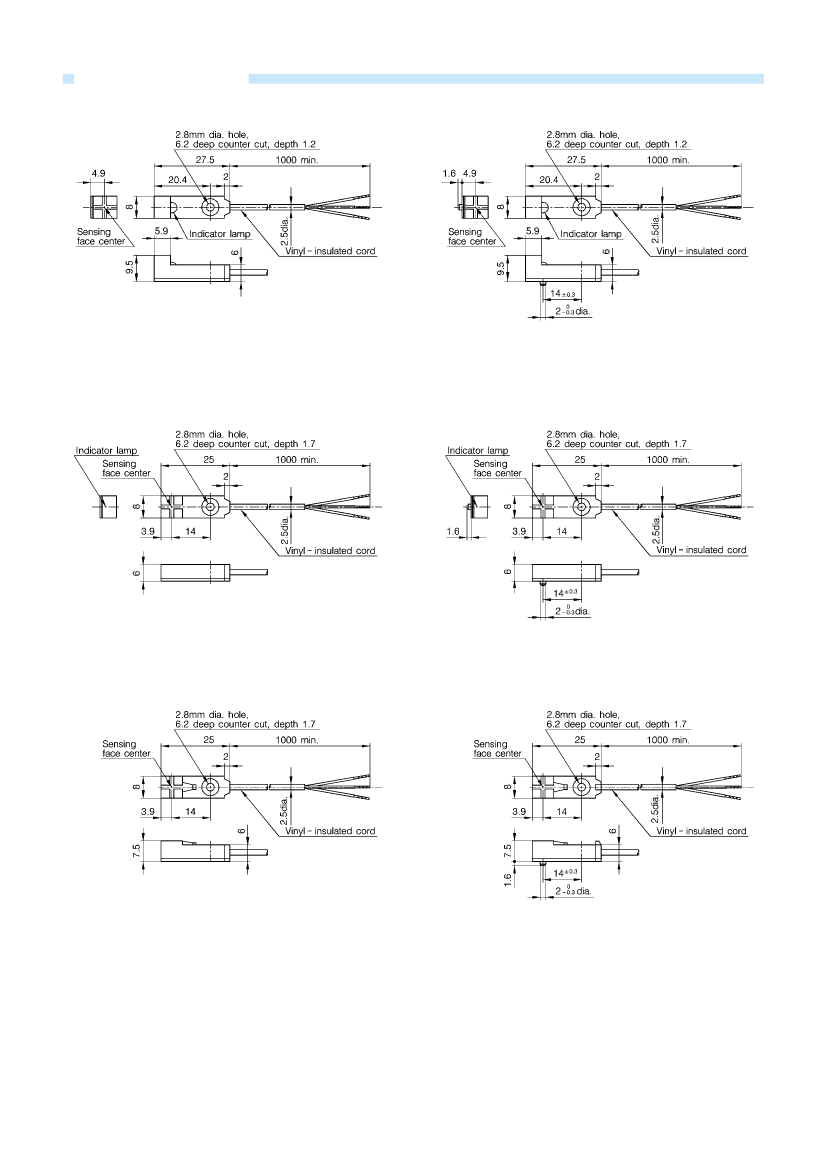

EXTERNAL DIMENSIONS
•
Top sensing type
•
(unit: mm)
•
Without locking boss
With locking boss
- Vinyl-insulated cord
(oil-resistant: 0.1mm
2
, 0.08/16, 3-core) 2.5mm dia.
- DC 2-wire type: 2 cores
- Vinyl-insulated cord
(oil-resistant: 0.1mm
2
, 0.08/16, 3-core) 2.5mm dia.
- DC 2-wire type: 2 cores
•
Side sensing type
•
Without locking boss
•
With locking boss
- Vinyl-insulated cord
(oil-resistant: 0.1mm
2
, 0.08/16, 3-core) 2.5mm dia.
- DC 2-wire type: 2 cores
- Vinyl-insulated cord
(oil-resistant: 0.1mm
2
, 0.08/16, 3-core) 2.5mm dia.
- DC 2-wire type: 2 cores
•
Side sensing type (-S)
•
Without locking boss
•
With locking boss
- Vinyl-insulated cord
(oil-resistant: 0.1mm
2
, 0.08/16, 3-core) 2.5mm dia.
- Vinyl-insulated cord
(oil-resistant: 0.1mm
2
, 0.08/16, 3-core) 2.5mm dia.
