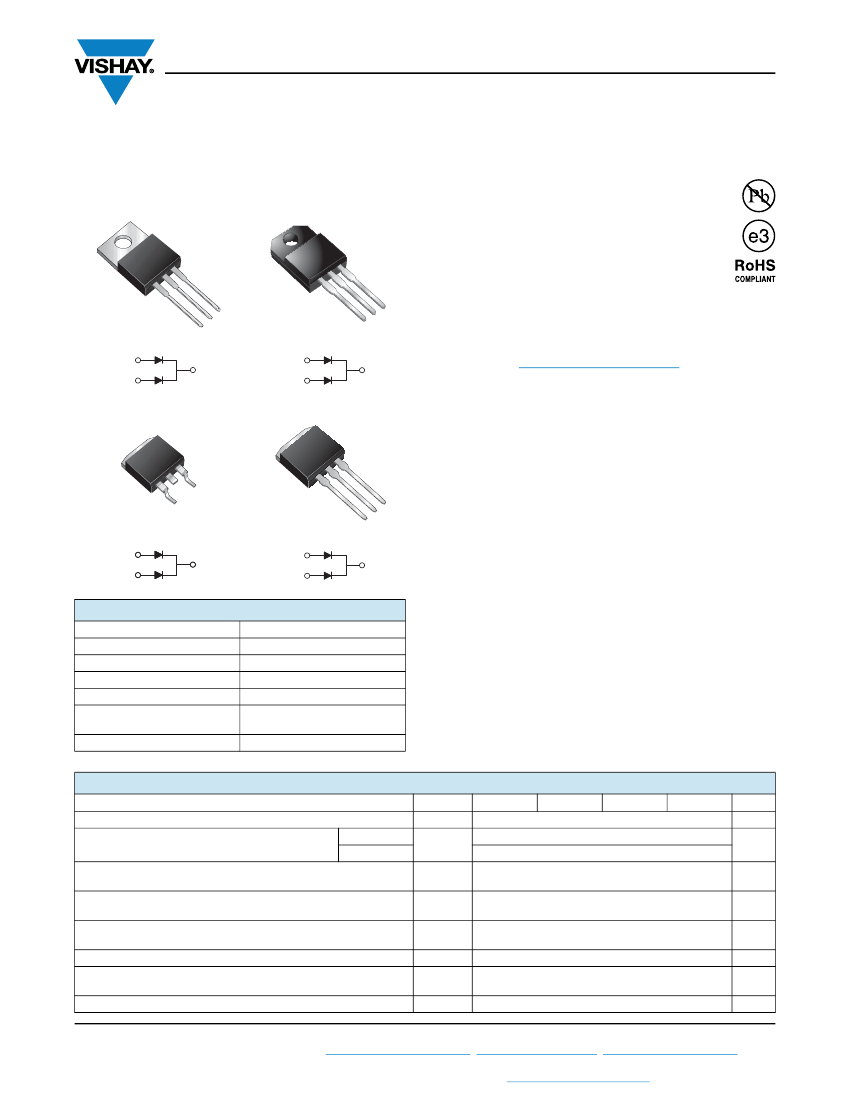

VT1080C-E3, VFT1080C-E3, VBT1080C-E3, VIT1080C-E3
www.vishay.com
Vishay General Semiconductor
Ultra Low V
F
= 0.49 V at I
F
= 3 A
Dual Trench MOS Barrier Schottky Rectifier
TMBS
®
TO-220AB
ITO-220AB
FEATURES
• Trench MOS Schottky technology
• Low forward voltage drop, low power losses
• High efficiency operation
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 245 °C (for TO-263AB package)
2
1
VT1080C
PIN 1
PIN 3
PIN 2
CASE
3
1
VFT1080C
PIN 1
PIN 3
PIN 2
2
3
• Solder bath temperature 275 °C maximum, 10 s,
per JESD 22-B106 (for TO-220AB, ITO-220AB,
and TO-262AA package)
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
TO-263AB
K
K
TO-262AA
For use in high frequency converters, switching power
supplies, freewheeling diodes, OR-ing diode, DC/DC
converters and reverse battery protection.
MECHANICAL DATA
2
1
1
VBT1080C
PIN 1
PIN 2
K
HEATSINK
2
3
VIT1080C
PIN 1
PIN 3
PIN 2
K
Case:
TO-220AB,
ITO-220AB,
TO-263AB
and
TO-262AA
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
per
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 5 A
T
J
max.
Package
Diode variations
2x5A
80 V
80 A
0.57 V
150 °C
TO-220AB, ITO-220AB,
TO-263AB, TO-262AA
Common cathode
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load per diode
Non-repetitive avalanche energy at T
J
= 25 °C, L = 60 mH
per diode
Peak repetitive reverse current at t
p
= 2 μs, 1 kHz,
T
J
= 38 °C ± 2 °C per diode
Voltage rate of change (rated V
R
)
Isolation voltage (ITO-220AB only)
from terminal to heatsink t = 1 min
Operating junction and storage temperature range
Revision: 11-Sep-13
per device
per diode
SYMBOL
V
RRM
I
F(AV)
I
FSM
E
AS
I
RRM
dV/dt
V
AC
T
J
, T
STG
VT1080C
VFT1080C VBT1080C
80
10
5
80
30
1.0
10 000
1500
-55 to +150
VIT1080C
UNIT
V
A
A
mJ
A
V/μs
V
°C
Document Number: 89164
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VT1080C-E3, VFT1080C-E3, VBT1080C-E3, VIT1080C-E3
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Breakdown voltage
Instantaneous forward voltage
per diode
TEST CONDITIONS
I
R
= 10 mA
I
F
= 3 A
I
F
= 5 A
I
F
= 3 A
I
F
= 5 A
Reverse current per diode
V
R
= 80 V
T
A
= 25 °C
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
SYMBOL
V
BR
TYP.
80 (minimum)
0.54
0.63
0.49
0.57
12
6
MAX.
-
-
0.72
-
0.66
400
15
μA
mA
V
UNIT
V
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
per diode
per device
SYMBOL
R
JC
VT1080C
3.5
2.5
VFT1080C
6.5
5.5
VBT1080C
3.5
2.5
VIT1080C
3.5
2.5
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
TO-262AA
PREFERRED P/N
VT1080C-E3/4W
VFT1080C-E3/4W
VBT1080C-E3/4W
VBT1080C-E3/8W
VIT1080C-E3/4W
UNIT WEIGHT (g)
1.88
1.70
1.35
1.35
1.43
PACKAGE CODE
4W
4W
4W
8W
4W
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
12
4.0
Resistive or Inductive Load
10
8
VFT1080C
6
4
2
0
0
25
50
75
100
125
150
175
V(B,I)T1080C
D = 0.8
3.5
D = 0.5
D = 0.3
D = 1.0
Average Forward Current (A)
Average Power Loss (W)
3.0
2.5
2.0
1.5
1.0
0.5
0
0
1
D = 0.2
D = 0.1
T
D = t
p
/T
2
3
4
t
p
5
6
Case Temperature (°C)
Fig. 1 - Maximum Forward Current Derating Curve
Average Forward Current (A)
Fig. 2 - Forward Power Loss Characteristics Per Diode
Revision: 11-Sep-13
Document Number: 89164
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VT1080C-E3, VFT1080C-E3, VBT1080C-E3, VIT1080C-E3
www.vishay.com
Vishay General Semiconductor
1000
100
Instantaneous Forward Current (A)
T
A
= 150 °C
10
T
A
= 125 °C
1
T
A
= 100 °C
0.1
Junction Capacitance (pF)
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
100
0.01
T
A
= 25 °C
0.001
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
10
0.1
1
10
100
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics Per Diode
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance Per Diode
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Current (mA)
100
T
A
= 150 °C
10
T
A
= 125 °C
1
T
A
= 100 °C
10
Junction to Case
VFT1080C
0.1
V(B,I)T1080C
0.01
T
A
= 25 °C
0.001
20
30
40
50
60
70
80
90
100
1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Reverse Characteristics Per Diode
t - Pulse Duration (s)
Fig. 6 - Typical Transient Thermal Impedance Per Diode
Revision: 11-Sep-13
Document Number: 89164
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VT1080C-E3, VFT1080C-E3, VBT1080C-E3, VIT1080C-E3
www.vishay.com

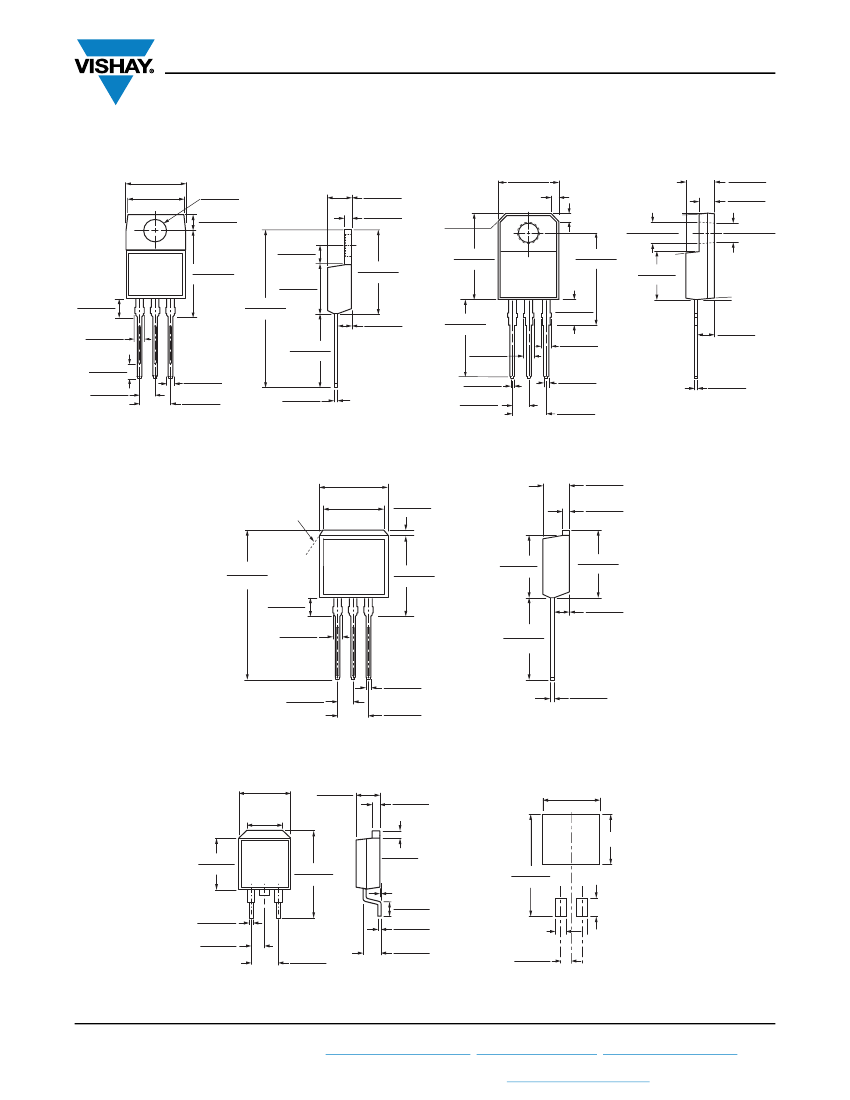

PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AB
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
3
0.603 (15.32)
0.573 (14.55)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.135 (3.43) DIA.
0.122 (3.08) DIA.
Vishay General Semiconductor
ITO-220AB
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.600 (15.24)
0.580 (14.73)
PIN
0.671 (17.04)
0.651 (16.54)
7° REF.
0.350 (8.89)
0.330 (8.38)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.104 (2.65)
0.096 (2.45)
PIN
2
1
2
3
7° REF.
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.025 (0.64)
0.015 (0.38)
0.105 (2.67)
0.095 (2.41)
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-262AA
0.411 (10.45) MAX.
0.250 (6.35) MIN.
K
0.055 (1.40)
0.047 (1.19)
0.185 (4.70)
0.175 (4.44)
0.055 (1.40)
0.045 (1.14)
30° (TYP.)
(REF.)
0.950 (24.13)
0.920 (23.37)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
PIN
2
0.510 (12.95)
0.470 (11.94)
3
0.350 (8.89)
0.330 (8.38)
0.401 (10.19)
0.381 (9.68)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.104 (2.65)
0.096 (2.45)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.35)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.33 (8.38) MIN.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 11-Sep-13
Document Number: 89164
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
