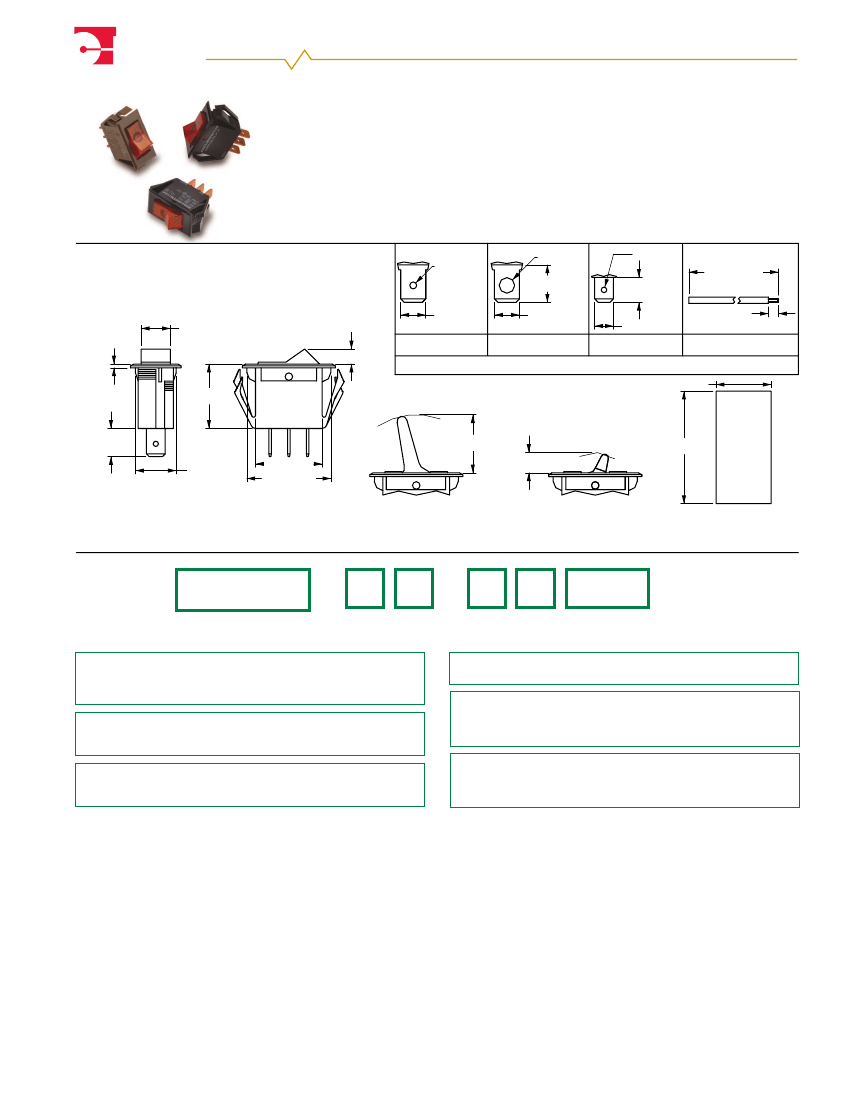

LTA-Series Single Pole Lighted Rocker Switches
™
LTA-Series Single Pole Lighted Rocker Switches
The illuminated predecessor to the Curvette series whose
versatility has allowed it to stand the test of time.
Traditional styling coupled with self cleaning contacts,
integrated wire leads, a multitude of circuits, ratings, and
actuator choices has made the LTA-Series appeal to a
wide range of markets including Appliance, HVAC, Food
service, Transportation, and sundry other markets as well.
Dielectric Strength
UL/CSA:
1000V - live to dead metal parts
750V - across open contacts
Electrical Life
100,000 cycles
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
.055[1.40]
DIA
6.000[152.40]
.250[6.35]
.500[12.70]
.187[4.74]
INTEGRATED WIRE LEAD
(no exposed conductors)
.069[1.75]
DIA
.156[3.96]
DIA
.375[9.52]
.250[6.35]
.390[9.77]
.050[1.27]
.250[6.35]
.250 TAB (Q.C.)
.250[6.35]
SOLDER LUG
.187 TAB (Q.C.)
TERMINAL TYPE
.550[13.97]
.860[21.84]
.375[9.52]
.890[22.60]
1.120[28.44]
PADDLE
.520 [13.20]
.275[6.98]
.544[13.81]
1.125[28.57]
SHORT PADDLE
MOUNTING HOLE
Panel Thickness:
.020[.508] min. to
.250[6.35] max.
LTA201
-
P R
-
B
-
A 125N
1
Base Part Number
2
Actuator
Style
3
Actuator
Color
4
Bezel
Color
5
Lens
Color
6
Lamp Voltage
1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING
1
/TERMINATION
10A 250VAC; 15A 125VAC; 3/4 HP 125-250VAC
Solder Lugs
.250 Tabs
.187 Tabs Wire Leads
OFF-NONE-ON
LTA200
LTA201
LTA203
LTA205
2 ACTUATOR STYLE
3
T
rocker
P
paddle
3 ACTUATOR COLOR
1
A
amber
C
clear
4 BEZEL COLOR
1
B
black
5 LENS COLOR
2,3
/
no lens
-A
amber
-C
clear
6 LAMP VOLTAGE
2
006V
6V incandescent
012V
12V incandescent
018V
18V incandescent
W
white
PS
short paddle
-G
-R
-LU
green
red
blue
R
G
red
green
2
024V
24V incandescent
125N
125V neon
250N
250V neon
NOTES
1
2
3
Additional ratings and colors are available. Consult factory for details.
Neon lamps not recommended with green or blue rocker/lenses.
Lens color is specified only if actuator style is P or PS. If style is T (rocker), then use / as the code in position 5.
