W-A5306-1N#01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> W-A5306-1N#01

W-A5306-1N#01: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE; CategoryThe connector The connector; File Size73KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

W-A5306-1N#01 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE

W-A5306-1N#01 Parametric

Parameter Name	Attribute value
Maker	SMK
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01
body width	0.236 inch
subject depth	0.63 inch
body length	1.437 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.039 inch
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MI-2
Plug contact pitch	0.197 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Maximum wire diameter	18 AWG
Minimum wire diameter	26 AWG

Preview

Download Datasheet

View All

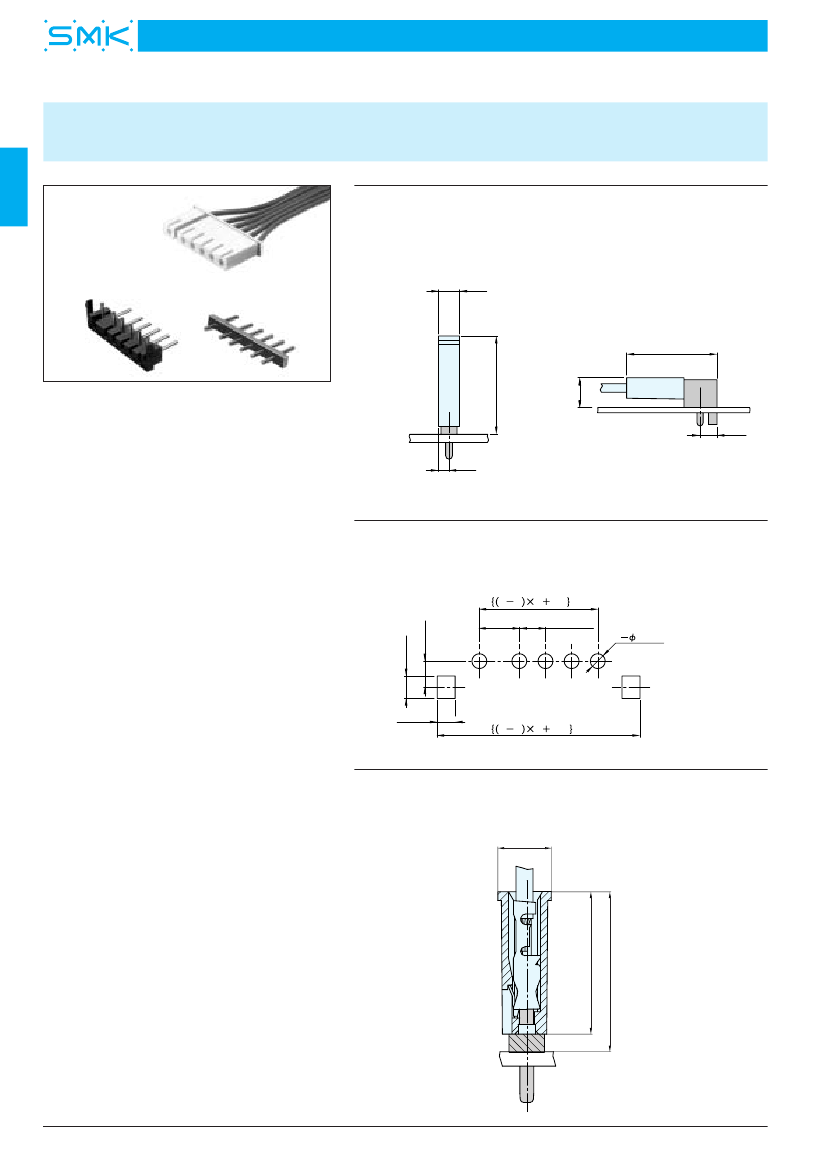

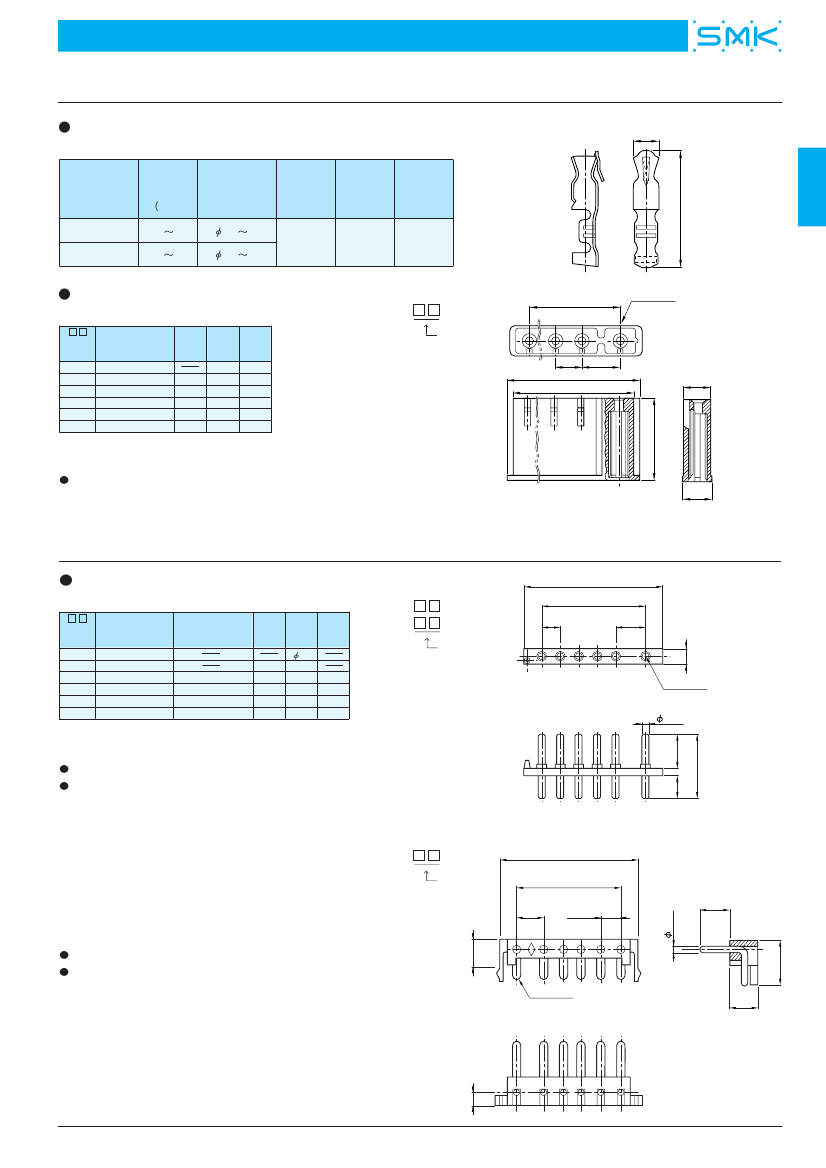

Crimp Connector

MI-2

Series

Crimp Connectors

5.0mm Spacing

■

Connection Diagram

Straight Type

6.0

Right-Angle Type

(2p for 18.5)

25.62

■

Features

1. Socket and plug connections for this model

measures 18.0mm high and 6.0mm thick.

2. Straight plug-in designs for plug connector

series are available in 6 different pin types.

3. A lead-free product.

7.0

3.65

2.8

■

Specifications

1. Rating : 5A 250V AC/DC

2. Contact Resistance : 20mΩ max.

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 1500V AC for one minute.

5. Operating Temperature Range : –25˚C to +85˚C

6. Applicable Wire Size : AWG18 to 26

(Sheath dia. ø1.0 to ø3.0mm)

7. Applicable P.C. Board Thickness : 1.6mm

■

Note

Custom made models will be available upon

request.

■

P.C. Board Dimension

2.56

0.1

7.5

0.1

7.5

0.1

(Excluding 1P)

5.0

0.1

(Spacing)

1.9

0.1

3.1

0.1

2.5

0.1

5 17.8

0.1

■

Structural Configuration Diagram

6.0

16.0

18.0

W-A5306-1N#01 Related Products

	W-A5306-1N#01	W-A5302-1N#01	W-A5303-1N#01	W-A5305-1N#01	W-A5301-1N#01	W-A5304-1N#01
Description	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE	Board Connector, 2 Contact(s), 1 Row(s), Female, 0.295 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE	Board Connector, 3 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE	Board Connector, 1 Contact(s), 1 Row(s), Female, Crimp Terminal, Natural Insulator, Socket, LEAD FREE	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.197 inch Pitch, Crimp Terminal, Natural Insulator, Socket, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01	COMPATIBLE CONTACTS: W-T0512-11#01; W-T0514-11#01
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.63 inch	0.63 inch	0.63 inch	0.63 inch	0.63 inch	0.63 inch
body length	1.437 inch	0.65 inch	0.846 inch	1.24 inch	0.315 inch	1.043 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Minimum insulation diameter	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	MI-2	MI-2	MI-2	MI-2	MI-2	MI-2
Plug information	MULTIPLE MATING PARTS AVAILABLE	W-P3002#02	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	W-P3001#01	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	6	2	3	5	1	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG	18 AWG
Minimum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Maker	SMK	-	SMK	SMK	SMK	SMK
Plug contact pitch	0.197 inch	0.295 inch	0.197 inch	0.197 inch	-	0.197 inch
polarization key	POLAR PIN POSITION	-	POLAR PIN POSITION	POLAR PIN POSITION	-	POLAR PIN POSITION
