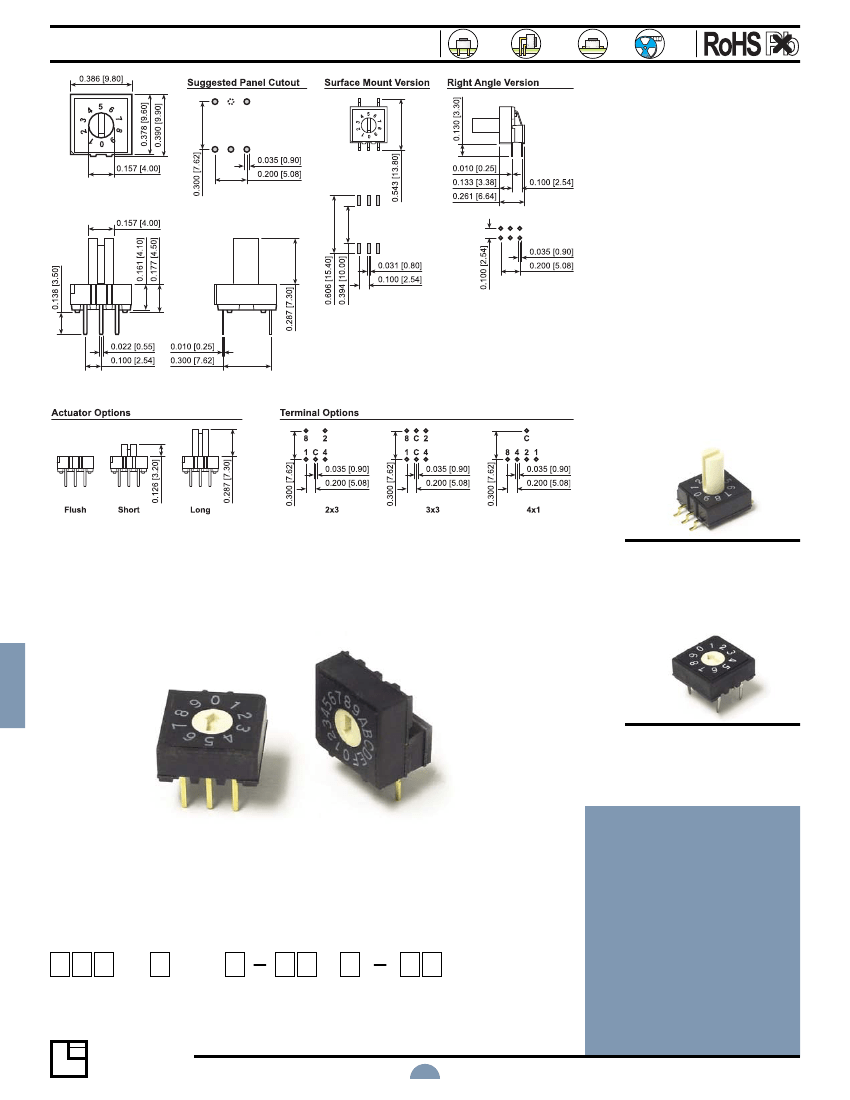

DR Series
Standard
PCB Mount
Right Angle
PCB Mount
Surface
Mount
Tape
and Reel
FEATURES:
• Through Hole, Right Angle, and SMT Option
• Tape and Reel Packaging
SPECIFICATIONS:
R
ATING
:
25mA 24VDC (Switching)
100mA 50VDC (Non-switching)
T
EMPERATURE
:
-25°C to 80°C (Operating)
-40°C to 85°C (Storage)
E
LECTRICAL
L
IFE
:
15,000 Cycles
D
IELECTRIC
S
TRENGTH
:
250VAC for 1 Minute
I
NSULATION
R
ESISTANCE
:
100M Min. at 250VDC
C
ONTACT
R
ESISTANCE
:
100m Max.
C
APACITANCE
:
5pF
V
IBRATION
T
EST
:
Mil-Std-202F Method 201A
S
HOCK
T
EST
:
Mil-Std-202F Method 213B
O
PERATION
F
ORCE
:
200gf•cm
MATERIALS:
B
ASE
:
Nylon, UL94 V-0
C
OVER
:
Nylon, UL94 V-0
A
CTUATOR
:
Liquid Crystal Polymer, UL94 V-0
C
ONTACTS
:
Gold Over Nickel Plated Copper
T
ERMINALS
:
Gold Plated Brass
DR3MH-10R
DR2-10R
DR3-10R
DR4A-16R
EXAMPLE PART NUMBERS:
DR2-10R
DR3-10R
DR3-16R
DR3A-10R
10 Position
10 Position
16 Position
10 Position
10 Position
10 Position
16 Position
10 Position
2x3, Through Hole, Flush, Real Code
3x3, Through Hole, Flush, Real Code
3x3, Through Hole, Flush, Real Code
3x3, Right Angle, Flush, Real Code
Series
Terminal
Type
Actuator
Type
Number of
Positions
Encoding
Type
Packaging
DR3AH-10R
DR3H-10R
3x3, Right Angle, Long, Real Code
DR2
- 2x3 Terminal Pattern
DR3
- 3x3 Terminal Pattern
DR4
- 4x1 Terminal Pattern
None
- Through Hole
None
- Flush
A
- Right Angle
H
- Long
M
- Surface Mount
S
- Short (*)
S
- Snap-In Through Hole
10
- 10 Positions
16
- 16 Positions
R
- Real Codes
None - Bulk
B
- Tube
TR
- Tape and Reel (**)
3x3, Through Hole, Long, Real Code
DR3H-16R
DR3M-10R
3x3, Through Hole, Long, Real Code
Notes:
* = Available with 3x3 Terminal Pattern Only.
**= Available with Surface Mount Terminals Only.
LAMB
INDUSTRIES
3x3, SMT, Flush Actuator, Real Code
Ph: 503-297-8878
• Fax:
503-297-8879
56
P.O. Box 25110 • Portland, OR 97298 USA • www.lambind.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
