Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company
PNP SILICON PLANAR TRANSISTOR
PIN CONFIGURATION (PNP)
1 = BASE
2 = EMITTER
3 = COLLECTOR

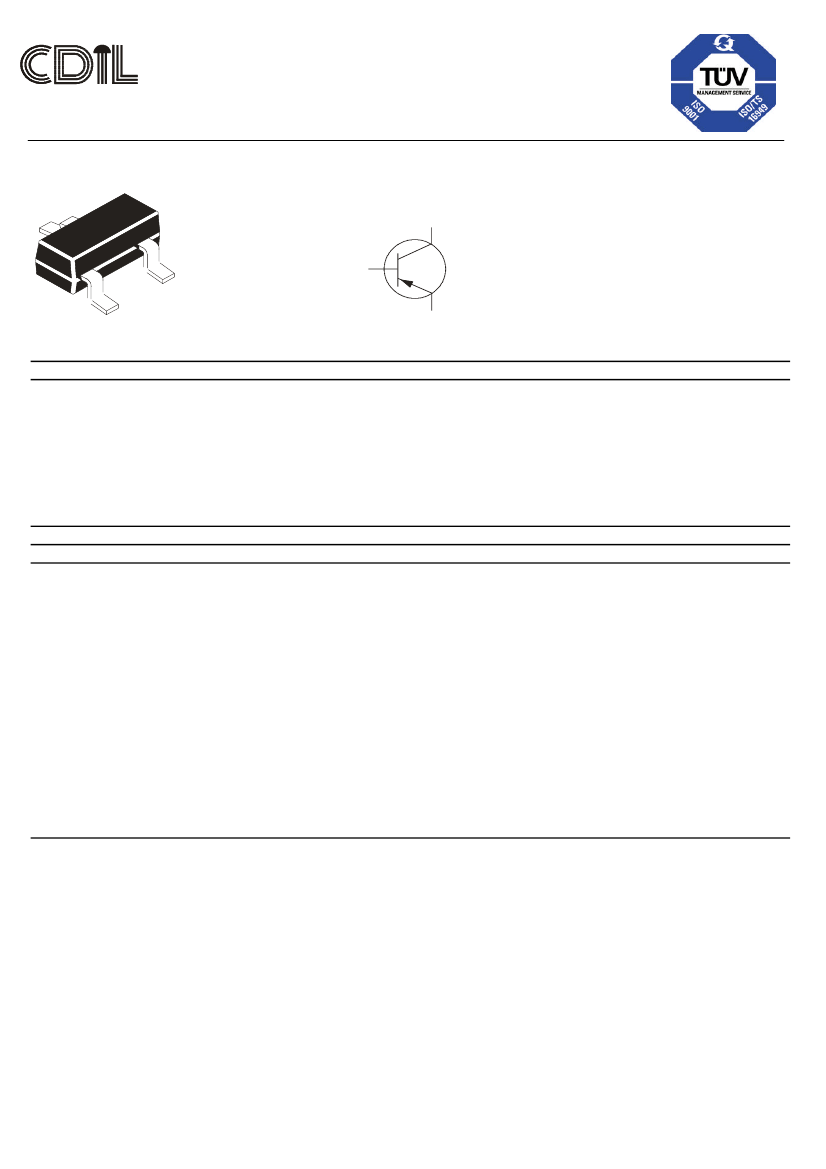

CMBT 9012
SOT-23
MARKING: AS BELOW
3
1
2
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
Collector -Base Voltage
Collector -Emitter Voltage
Emitter Base Voltage
Collector Current Continuous
Collector Dissipation
Operating And Storage Junction
Temperature Range
SYMBOL
VCBO
VCEO
VEBO
IC
PC
Tj, Tstg
VALUE
35
30
5.0
500
250
-55 to +150
UNIT
V
V
V
mA
mW
deg C
ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified)
DESCRIPTION
SYMBOL TEST CONDITION
VCBO
IC=100uA, IE=0
Collector -Base Voltage
VCEO
IC=1mA, IB=0
Collector -Emitter Voltage
VEBO
IE=100uA, IC=0
Emitter Base Voltage
ICBO
VCB=25V, IE=0
Collector Cut off Current
IEBO
VEB=3V, IC=0
Emitter Cut off Current
hFE
IC=50mA,VCE=1V *
DC Current Gain
IC=300mA,VCE=1V
VCE(Sat) IC=150mA,IB=15mA
Collector Emitter Saturation Voltage
IC=300mA,IB=30mA
VBE(Sat) IC=150mA,IB=15mA
Base Emitter Saturation Voltage
IC=300mA,IB=30mA
Dynamic Characteristics
ft
VCE=10V,IC=50mA,
Transition Frequency
f=100MHz
CLASSIFICATION
hFE*
MARKING
G/H/I
118-305
2GI
MIN
35
30
5.0
-
-
118
40
-
-
-
-
140
TYP
-
-
-
-
-
-
-
-
-
-
-
-
MAX
-
-
-
100
500
305
-
0.20
0.60
1.0
1.20
-
UNIT
V
V
V
nA
nA
V
V
V
V
MHz
Continental Device India Limited
Data Sheet
Page 1 of 3

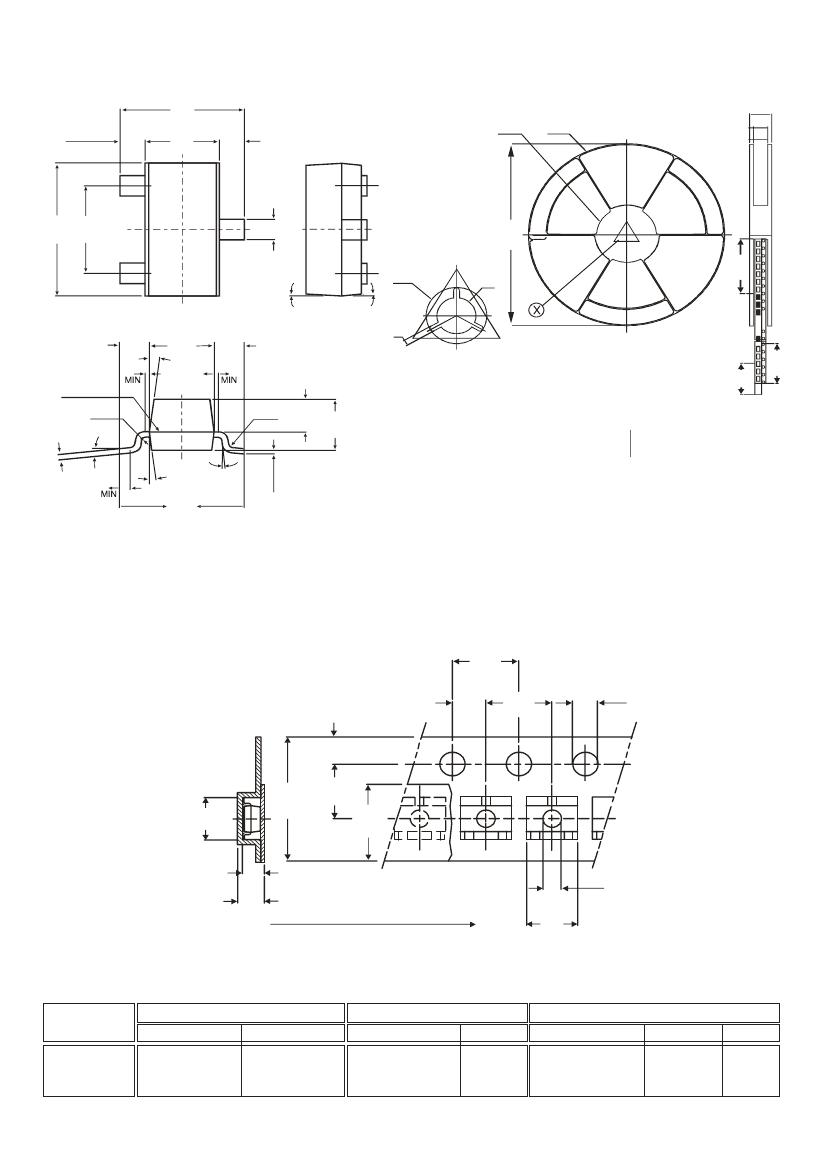

SOT-23 Formed SMD Package
±0.05
2.50
± 0.02
0.60
±0.025
1.30
±0.02
0.60
SOT-23 Package Reel Information
Reel specifications for W" Packing (13" reel)
14.4
MAX
ø100.0± 0.5 / ø 54.5 ± 0.5
ø329.2± 0.5 / 178 ± 0.5
7.9 – 10.9
9.2± 0.5
±0.025
2.90
±0.05
1.90
0.40
+0.08
-0.02
1
cL
3
+0.5
–0.2
ø13.0
180
or
330
TRAILER
2
ø20.2 MIN
3°
3°
DETAIL X
±0.02
0.60
PARTING LINE
RO.08
±0.01
0.12
±4"
±3"
±0.04
0.06
R0.08
±0.025
0.95
All dime nsion s in m m
330 / 180 mm – A ntistatic C oated Plastic R eel
N O TES :
N o. of D evices
1.
2.
3.
4.
5.
8m m Ta pe
Size of Ree l
330 mm (13")
10,000 Pcs
8m m Ta pe
Size of Ree l
180 mm (7")
3,000 Pcs
6°
0.21
7°
±0.05
2.50
5°
The ba ndolier of 330 mm reel contains at least 1 0,000 devices.
The ba ndolier of 180 mm reel contains at least 3 ,000 device s.
N o m ore than 0.5% missing de vices / reel. 50 e mpty compartm ents for 330 mm reel.
15 em pty com partmen ts for 180 m m ree l.
Three consecutive empty places m ight be found provided this gap is follow ed by 6
conse cutive device s.
The carrier ta pe (le ader) starts with a t least 75 em pty positio ns (equivalent to 3 30
m m). In order to fix the carrier tape a self a dhesive tap e of 2 0 to 5 0 m m is app lied. At
the en d of the bandolie r at le ast 40 em pty positions (e quiva lent to 160 m m) are the re.
Tape Specification for SOT-23 Surface Mount Device
± 0.1
4.0
± 0.05
± 0.1
2.0
4.0
± 0.1
1.75
+0.3 ± 0.05
- 0.1 3.5
8.0
5.75
MAX
± 0.05
± 0.05
1.55
± 0.10
2.77
± 0.1
1.22
1.6
MAX
1.0
± 0.10
3.15
D irection of Unreeling
All dimensions in mm
Packing Detail
PACKAGE
Details
SOT-23 T&R
3K/reel
10K/reel
STANDARD PACK
Net Weight/Qty
136 gm/3K pcs
415 gm/10K pcs
Size
3" x 7.5" x 7.5"
9" x 9" x 9"
13" x 13" x 0.5"
Data Sheet
INNER CARTON BOX
Qty
12.0K
51.0K
10.0K
Size
OUTER CARTON BOX
Qty
192.0K
408.0K
300.0K
Gr Wt
12 kgs
28 kgs
16 kgs
17" x 15" x 13.5"
19" x 19" x 19"
17" x 15" x 13.5"
Continental Device India Limited
Page 2 of 3
FIXING
TAPE
0.08
LEADER
± 0.02
0.60
1.30
7°
0.08
± 0.02
0.60
2.0± 0.5
Customer Notes
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished on the CDIL Web
Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete
information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product;
neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life
saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
email@cdil.com
www.cdilsemi.com
Continental Device India Limited
Data Sheet
Page 3 of 3
