BSV79
BSV80
N-CHANNEL
SILICON JFETS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR BSV79 and BSV80
are silicon N-Channel JFETs designed for switching
applications.
MARKING: FULL PART NUMBER
TO-18 CASE
MAXIMUM RATINGS:
(TA=25°C)
Drain-Source Voltage
Drain-Gate Voltage
Reverse Gate-Source Voltage
Gate Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VDS
VDG
VGS
IG
PD
TJ, Tstg
JA
UNITS
V
V
V
mA
mW
°C
°C/W
40
40
40
50
350
-65 to +175
430
BSV80
MIN
MAX
-
0.25
-
10
-
-
1.0
0.75
-
-
-
-
-
0.5
-
0.25
0.5
5.0
4.0
-
325
60
10
5.0
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
BSV79
SYMBOL
TEST CONDITIONS
MIN
MAX
IGSS
VGS=20V, VDS=0
-
0.25
IGSS
IDSS
ID(OFF)
ID(OFF)
VGS(OFF)
VGS
VDS(ON)
VDS(ON)
rds(ON)
Crss
Ciss
VGS=20V, VDS=0, TA=150°C
VDS=15V, VGS=0
VDS=15V, VGS=12V
VDS=15V, VGS=12V, TA=150°C
VDS=15V, ID=1.0nA
VDS=15V, ID=1.5μA
ID=10mA, VGS=0
ID=5.0mA, VGS=0
VGS=0, ID=0, f=1.0kHz
VGS=10V, VDS=0, f=1.0MHz
VGS=10V, VDS=0, f=1.0MHz
-
20
-
-
2.0
1.75
-
-
-
-
-
0.5
-
0.25
0.5
7.0
6.0
400
-
40
10
5.0
UNITS
nA
μA
mA
nA
μA
V
V
mV
mV
Ω
pF
pF
R0 (12-December 2018)
BSV79
BSV80
N-CHANNEL
SILICON JFETS

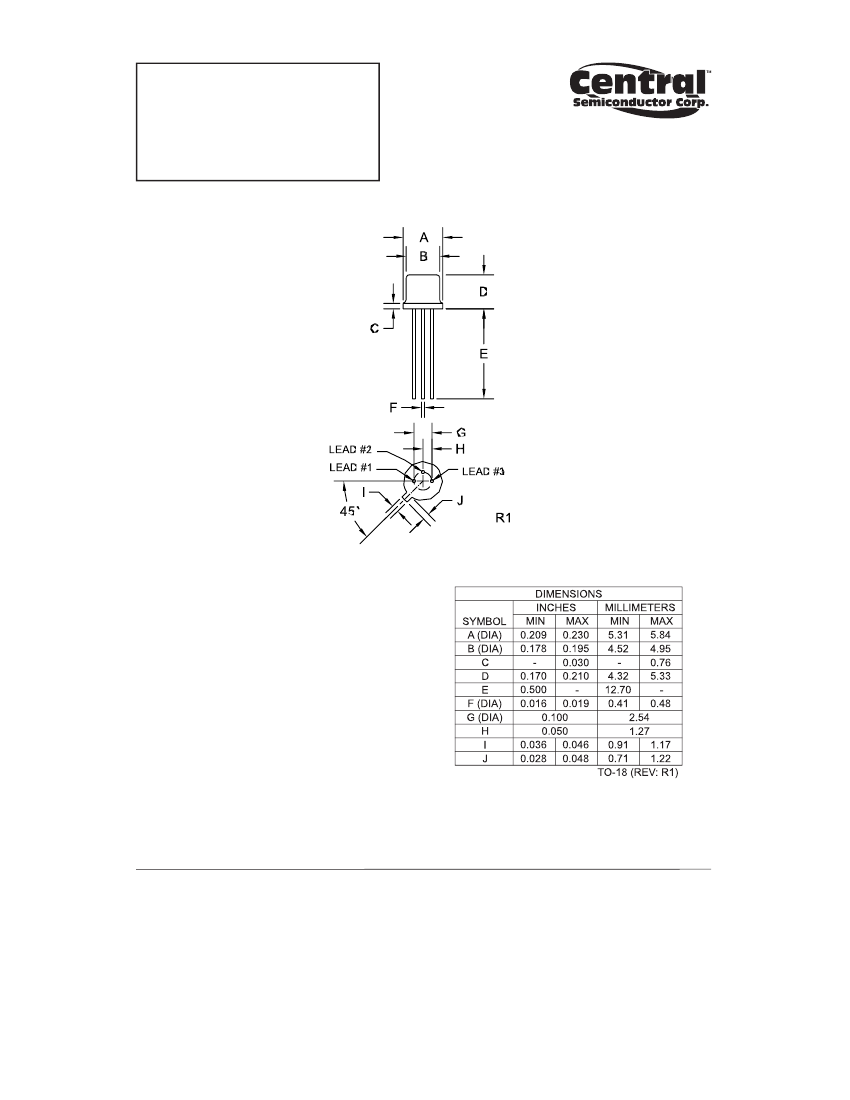

TO-18 CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Source
2) Drain
3) Gate
MARKING: FULL PART NUMBER
