CR150-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CR150-100

CR150-100: DescriptionRectifier Diode, 1 Phase, 1 Element, 150A, 1000V V(RRM), Silicon, DO-8,; CategoryDiscrete semiconductor diode; File Size37KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CR150-100 Overview

Rectifier Diode, 1 Phase, 1 Element, 150A, 1000V V(RRM), Silicon, DO-8,

CR150-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-8
JESD-30 code	O-MUPM-H1
JESD-609 code	e0
Maximum non-repetitive peak forward current	3000 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	200 °C
Maximum output current	150 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

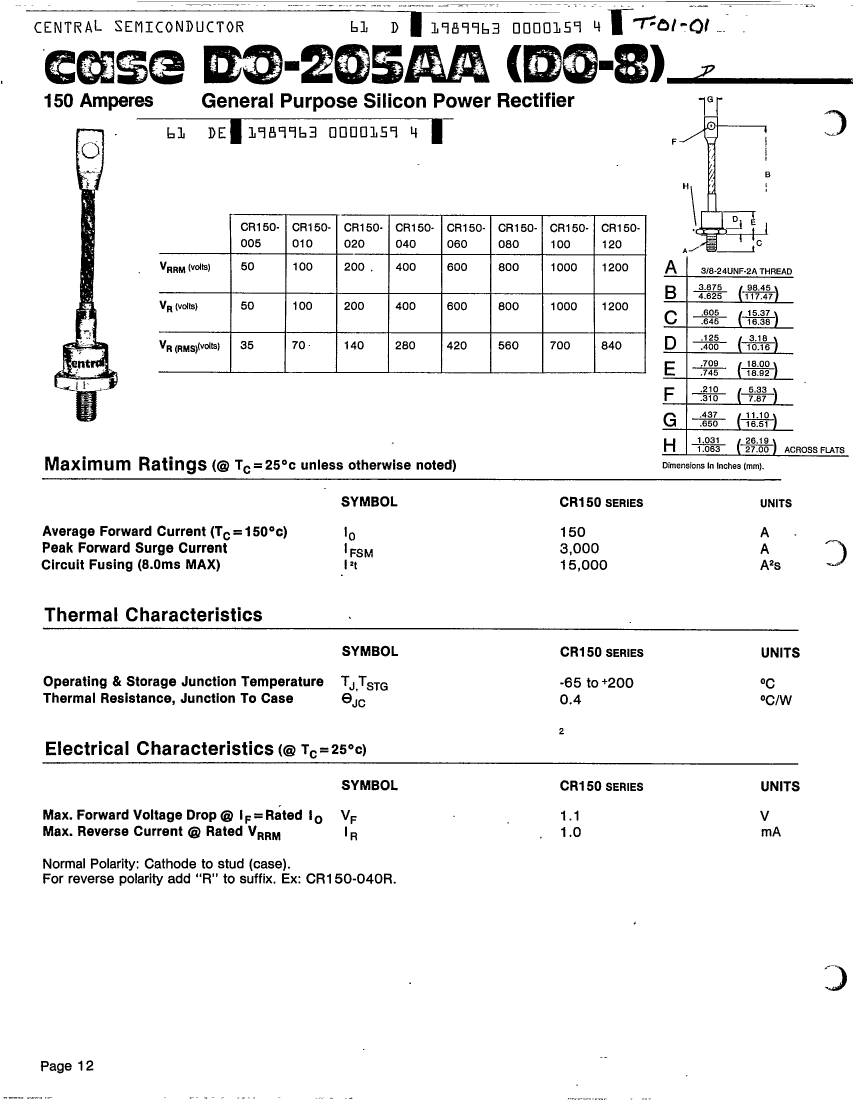

Preview

Download Datasheet

View All

CR150-100 Related Products

	CR150-100	CR150-120	CR150-060
Description	Rectifier Diode, 1 Phase, 1 Element, 150A, 1000V V(RRM), Silicon, DO-8,	Rectifier Diode, 1 Phase, 1 Element, 150A, 1200V V(RRM), Silicon, DO-8,	Rectifier Diode, 1 Phase, 1 Element, 150A, 600V V(RRM), Silicon, DO-8,
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor
Reach Compliance Code	not_compliant	not_compliant	unknown
ECCN code	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-8	DO-8	DO-8
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
JESD-609 code	e0	e0	e0
Maximum non-repetitive peak forward current	3000 A	3000 A	3000 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C
Maximum output current	150 A	150 A	150 A
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	1200 V	600 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
