BDR2D15-220M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> BDR2D15-220M

BDR2D15-220M: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size150KB，4 Pages; Manufacturer3L Electronic Corporation

Download Datasheet Parametric View All

BDR2D15-220M Overview

General Purpose Inductor,

BDR2D15-220M Parametric

Parameter Name	Attribute value
Maker	3L Electronic Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	BDR

Preview

Download Datasheet

View All

BDR SERIES

UNSHIELDED SMT POWER INDUCTOR

Applications :

．Hand

phone of new generation.

．DSC,

DVC , PDA ,MP3, Hard disk drives products.

．DC

to DC converters, etc.

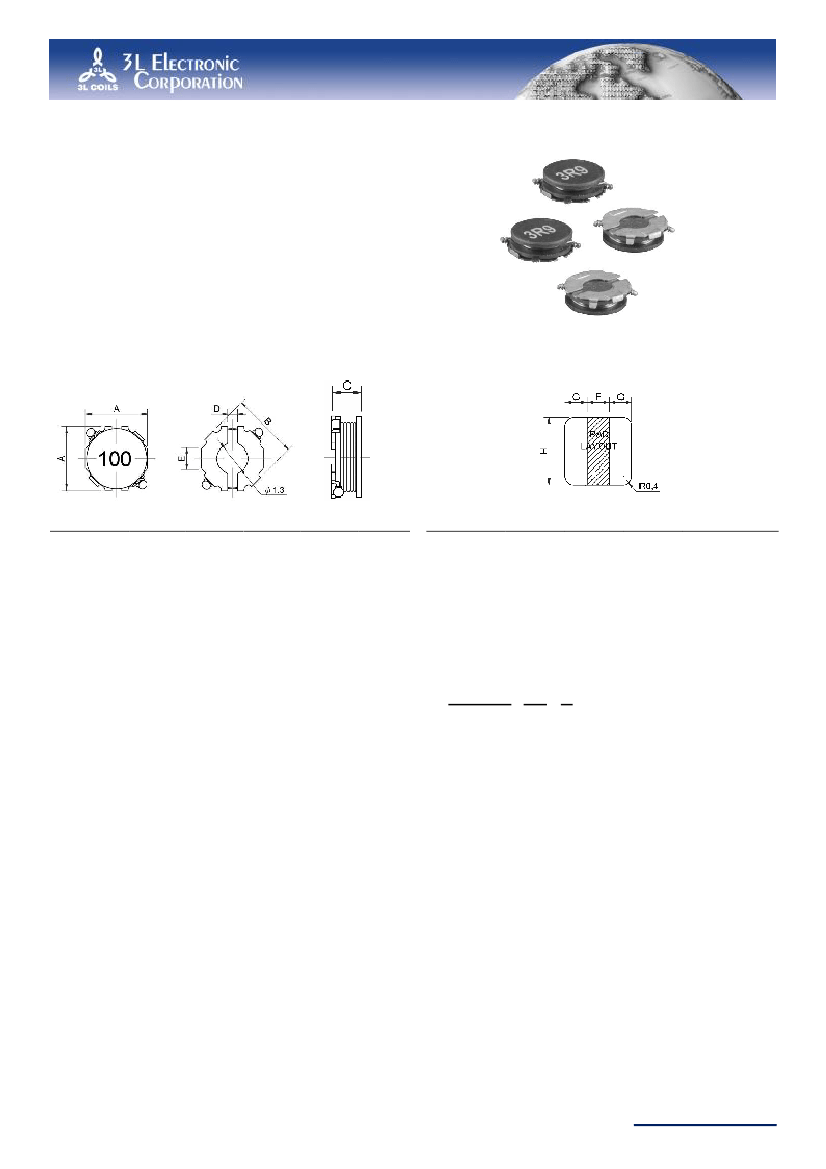

Shape and Dimensions (Dimensions are in mm) :

Item

BDR2D10

BDR2D12

BDR2D15

3.0±0.2

3.2

C Max.

1.0

1.2

1.5

0.5

1.0

Item

BDR2D10

BDR2D12

BDR2D15

1.0

3.0

Features :

．Automatic

process.

．New

designed terminal for low cost.

．Low

profile and high current.

．Magnetically

unshielded construction.

．Ideal

for digital equipment and hand phone of new

generation.

．RoHS

compliant.

Product identification :

BDR2D10 - 100

(1)

(2)

(3)

(1) Type : Surface mountable type.

Style : Copper

Base

with

core.

is 3.0mm square and

is about 1.0mm height.

(2) Inductance :

100

for

10.0

uH.

(3) Inductance tolerance :

20%.

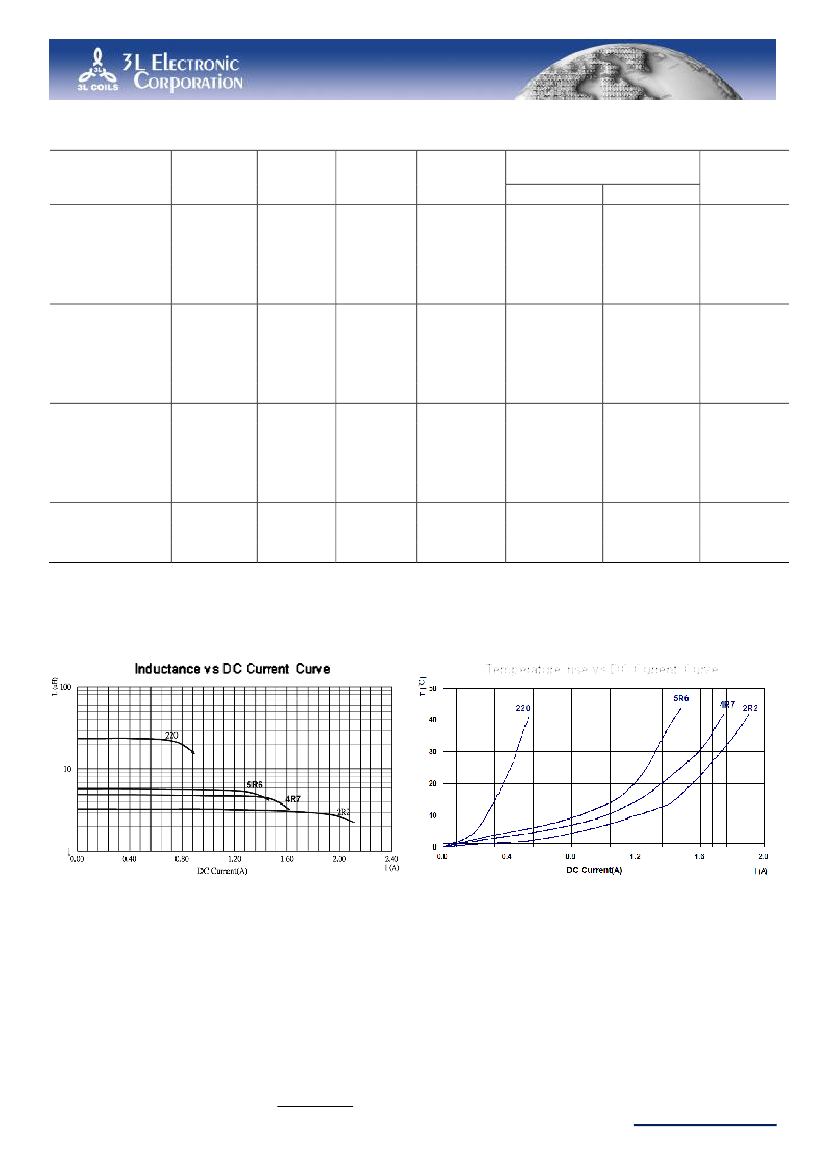

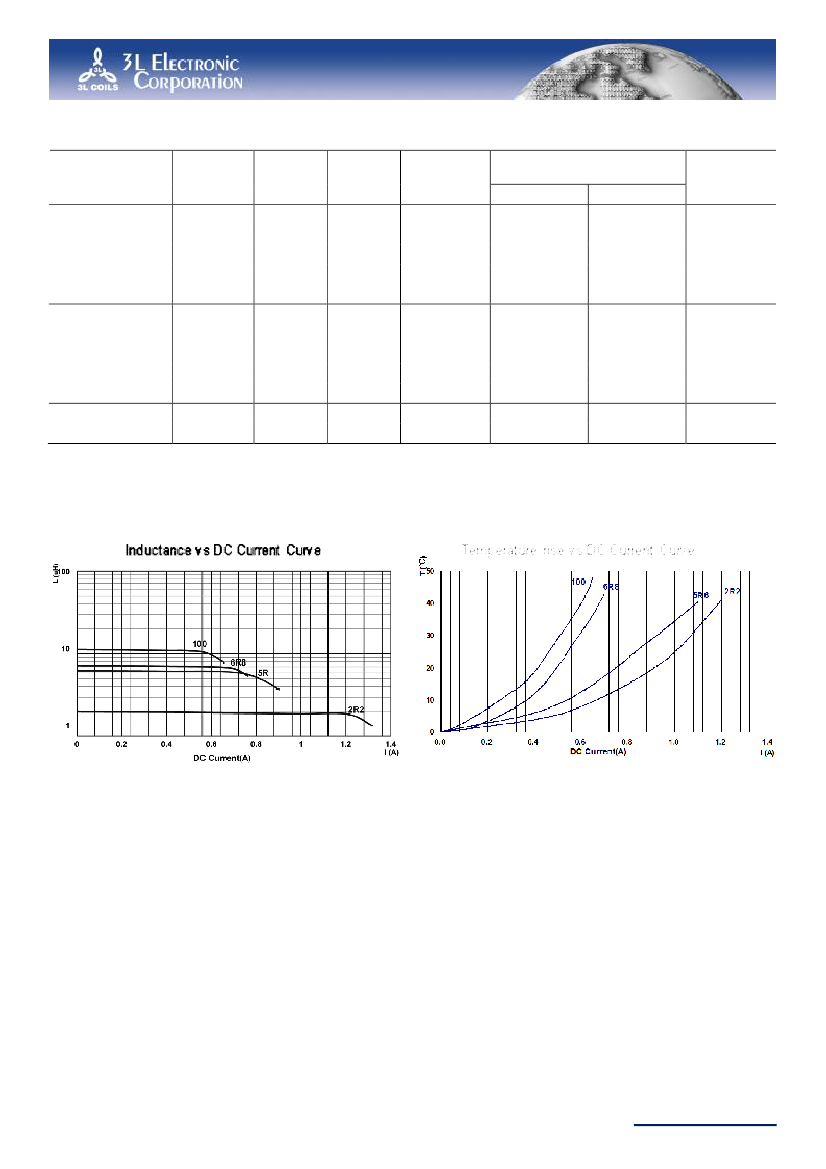

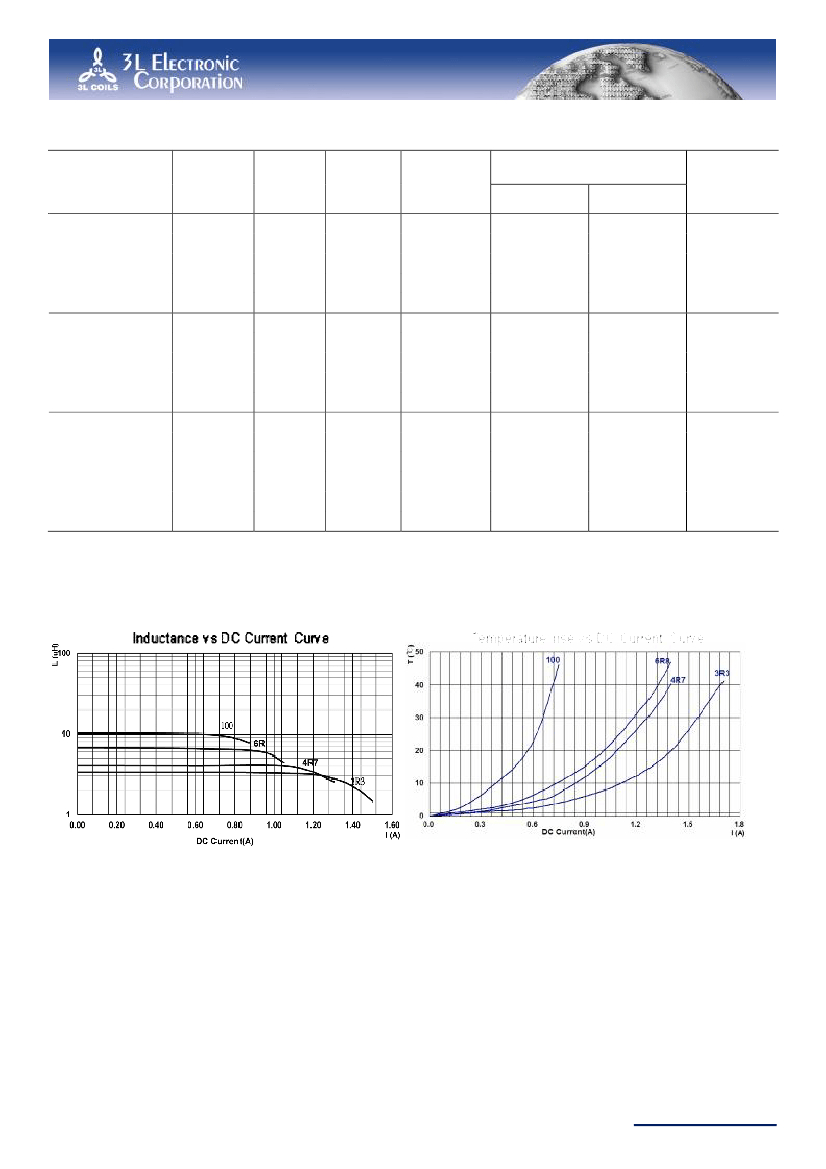

Characteristics :

．Saturation

Rated Current (Isat): The current when the

inductance becomes 30% lower than its initial value.

(Ta=20℃)

．Temperature

Rise Current (Irms): The current when

temperature of coil increases up to Max.

△

T=40℃.

(Ta=20℃)

．Operating

temperature : -40℃ to 105℃.

Test equipments :

．Inductance

measured at 0Adc on HP 4284A LCR

meter or equivalent.

．DCR

measured on Chroma 16502 micro-ohmmeter

or equivalent.

．Electrical

specifications at 25℃.

Lasting. Leaning. Leading

3L Electronic Corp.

2.1

Web : http://www.3lcoil.com
