VSSA210
Vishay General Semiconductor
Surface Mount Trench MOS Barrier Schottky Rectifier

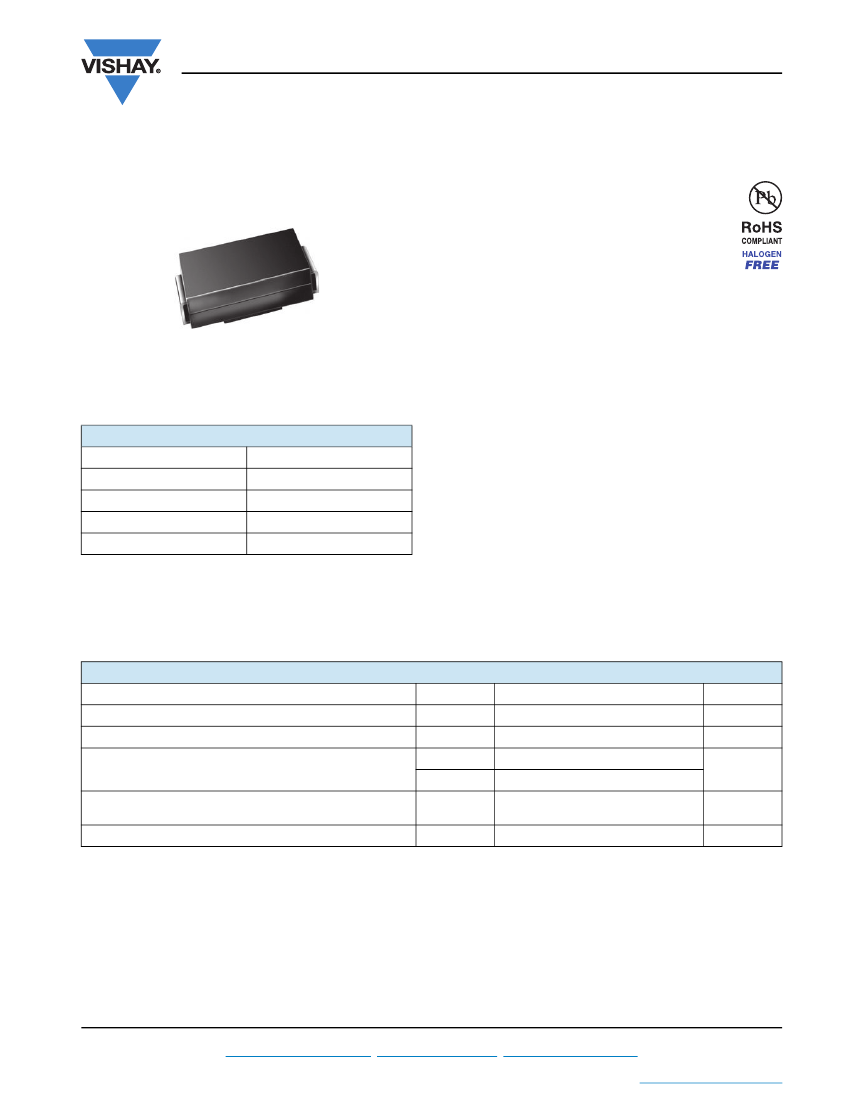

FEATURES
TMBS
®
• Low profile package
• Ideal for automated placement
• Trench MOS Schottky technology
• Low power losses, high efficiency
• Low forward voltage drop
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
DO-214AC (SMA)
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
•
Halogen-free according to IEC 61249-2-21 definition
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 2.0 A
T
J
max.
2.0 A
100 V
60 A
0.56 V
150 °C
For use in low voltage, high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS compliant, and
commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes the cathode end
per
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum DC forward current
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range
Notes
(1)
Mounted on 8 mm x 8 mm pad areas, 1 oz. FR4 PCB
(2)
Free air, mounted on recommended copper pad area
V
RRM
I
F (1)
I
F (2)
I
FSM
T
J
, T
STG
SYMBOL
VSSA210
V2B
100
2.0
A
1.7
60
- 40 to + 150
A
°C
V
UNIT
Document Number: 89404
Revision: 19-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
New Product
VSSA210
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Breakdown voltage
Instantaneous forward voltage
TEST CONDITIONS
I
R
= 1.0 mA
I
F
= 2.0 A
T
A
= 25 °C
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
C
J
I
R (2)
SYMBOL
V
BR
V
F (1)
TYP.
100 (minimum)
0.61
0.56
1.0
0.95
3.5
2.2
175
MAX.
-
0.70
0.65
-
-
150
15
-
μA
mA
μA
mA
pF
V
UNIT
V
R
= 70 V
Reverse current
V
R
= 100 V
Typical junction capacitance
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JM
(2)
VSSA210
135
°C/W
25
UNIT
Notes
(1)
Free air, mounted on recommended PCB 1 oz. pad area; thermal resistance R
JA
- junction to ambient
(2)
Units mounted on PCB with 8 mm x 8 mm copper pad areas; R
JM
- junction to mount
ORDERING INFORMATION
(Example)
PREFERRED P/N
VSSA210-M3/61T
VSSA210-M3/5AT
UNIT WEIGHT (g)
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
BASE QUANTITY
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel

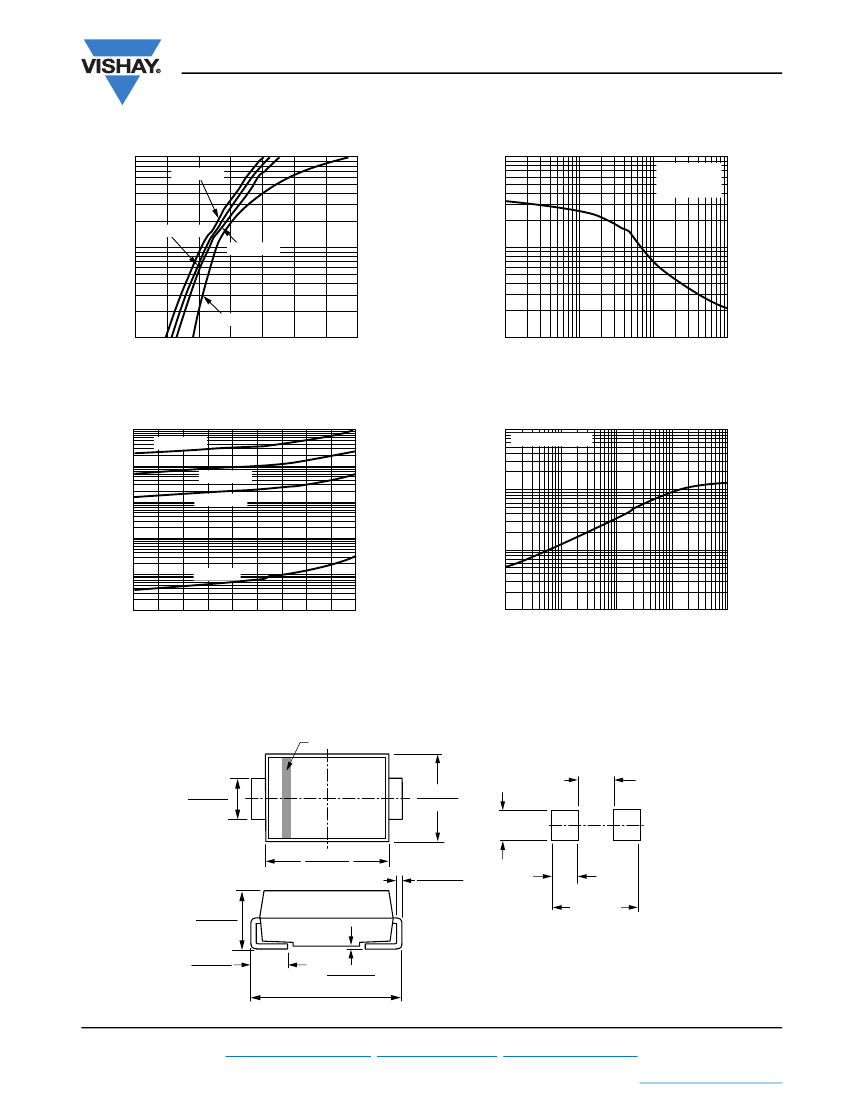

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
2.4
1.6
D = 0.5
Average Forward Rectified Current (A)
2.0
1.4
D = 0.8
D = 0.3
D = 0.2
Average Power Loss (W)
1.2
1.0
D = 0.1
D = 1.0
1.6
1.2
0.8
0.6
T
0.8
0.4
0.2
D = t
p
/T
t
p
0.4
T
M
Measured at Terminal
0
0
25
50
75
100
125
150
0
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
T
M
- Mount Temperature (°C)
Average Forward Current (A)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 2 - Forward Power Loss Characteristics
www.vishay.com
2
For technical questions within your region, please contact one of the following:
Document Number: 89404
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Revision: 19-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
New Product
VSSA210
Vishay General Semiconductor
10
1000
T
A
= 150 °C
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Instantaneous Forward Current (A)
T
A
= 125 °C
1
T
A
= 100 °C
Junction Capacitance (pF)
100
T
A
= 25 °C
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
10
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 5 - Typical Junction Capacitance
10
T
A
= 150 °C
1
T
A
= 125 °C
0.1
T
A
= 100 °C
1000
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Current (mA)
Junction to Ambient
100
0.01
10
0.001
T
A
= 25 °C
0.0001
10
20
30
40
50
60
70
80
90
100
1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AC (SMA)
Cathode Band
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Document Number: 89404
Revision: 19-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
