SMF5V0A-M to SMF51A-M
www.vishay.com
Vishay Semiconductors
Surface Mount ESD Protection Diodes
FEATURES
•
•
•
•
•
20278
17249
1
2
•
•
•
22623
MARKING
(example only)
Bar = cathode marking
YY = type code (see table below)
XX = date code
•
•
•
•
•
•
For surface mounted applications
Low-profile package
Optimized for LAN protection applications
Ideal for ESD protection of data lines in
accordance with IEC 61000-4-2 (IEC 801-2)
Ideal for EFT protection of data lines in
accordance with IEC 61000-4-4 (IEC 801-4)
ESD-protection acc. IEC 61000-4-2
± 30 kV contact discharge
± 30 kV air discharge
Low incremental surge resistance, excellent clamping
capability
200 W peak pulse power capability with a 10/1000 μs
waveform, repetition rate (duty cycle): 0.01 %
Very fast response time
High temperature soldering guaranteed: 260 °C/10 s at
terminals
e3 - Sn
AEC-Q101 qualified
Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
Halogen-free according to IEC 61249-2-21 definiton
ORDERING INFORMATION
SMF5V0A-M-xx
08 = 3K per 7" reel (8 mm tape), 30K/box
18 = 10K per 13" reel (8 mm tape), 50K/box
Environmental suffix -M- defines halogen-free
Part number
PACKAGE DATA
DEVICE NAME
SMF5V0A-M
SMF6V5A-M
SMF7V0A-M
SMF7V5A-M
SMF8V0A-M
SMF8V5A-M
SMF9V0A-M
SMF10A-M
SMF11A-M
SMF12A-M
SMF13A-M
SMF14A-M
SMF15A-M
SMF16A-M
SMF17A-M
SMF18A-M
SMF20A-M
SMF22A-M
SMF24A-M
Rev. 1.1, 30-Nov-11
SMF
PACKAGE
NAME
TYPE CODE
NE
NK
NM
NP
NR
NT
NV
NX
NZ
OE
OG
OK
OM
OP
OR
OT
OV
OX
OZ
15 mg
UL 94 V-0
MSL level 1
(according J-STD-020)
260 °C/10 s at terminals
WEIGHT
MOLDING
COMPOUND
FLAMMABILITY
RATING
MOISTURE SENSITIVITY SOLDERING CONDITIONS
LEVEL
Document Number: 83355
1
For technical questions, contact:
ESDprotection@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
XX
YY
SMF5V0A-M to SMF51A-M
www.vishay.com
PACKAGE DATA
DEVICE NAME
SMF26A-M
SMF28A-M
SMF30A-M
SMF33A-M
SMF36A-M
SMF40A-M
SMF43A-M
SMF45A-M
SMF48A-M
SMF51A-M
SMF
PACKAGE
NAME
TYPE CODE
PE
PG
PK
PM
PP
PR
PT
PV
PX
PZ
15 mg
UL 94 V-0
MSL level 1
(according J-STD-020)
260 °C/10 s at terminals
WEIGHT
MOLDING
COMPOUND
FLAMMABILITY
RATING
MOISTURE SENSITIVITY
SOLDERING CONDITIONS
LEVEL
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Peak pulse current
Peak pulse power
Peak forward surge current
ESD immunity
Thermal resistance
Forward clamping voltage
Operating temperature
Storage temperature
TEST CONDITIONS
t
p
= 10/1000 μs waveform acc. IEC 61000-4-5
t
p
= 8/20 μs waveform acc. IEC 61000-4-5
t
p
= 10/1000 μs waveform acc. IEC 61000-4-5
8.3 ms single half sine-wave
Contact discharge acc. IEC 61000-4-2; 10 pulses
Air discharge acc. IEC 61000-4-2; 10 pulses
Mounted on epoxy glass PCB with 3 mm x 3 mm,
Cu pads (
40
μm thick)
I
F
= 12 A
Junction temperature
SYMBOL
I
PPM
P
PP
I
FSM
V
ESD
R
thJA
V
F
T
J
T
STG
VALUE
see “Electrical
Characteristics”
1000
200
20
± 30
± 30
180
3.5
- 55 to + 150
- 55 to + 150
UNIT
A
W
W
A
kV
kV
K/W
V
°C
°C
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PART
NUMBER
REVERSE
BREAKDOWN
VOLTAGE
at I
T
, t
p
5 ms
V
BR
MIN.
(V)
SMF5V0A-M
SMF6V0A-M
SMF6V5A-M
SMF7V0A-M
SMF7V5A-M
SMF8V0A-M
SMF8V5A-M
SMF9V0A-M
SMF10A-M
SMF11A-M
SMF12A-M
SMF13A-M
SMF14A-M
SMF15A-M
SMF16A-M
SMF17A-M
SMF18A-M
Rev. 1.1, 30-Nov-11
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
REVERSE REVERSE
TEST
WORKING CURRENT
CURRENT VOLTAGE
at V
RWM
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
V
RWM
(V)
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
I
R
(μA)
400
400
250
100
50
25
10
5
2.5
2.5
2.5
1
1
1
1
1
1
MAXIMUM
REVERSE
PEAK PULSE CLAMPING CAPACITANCE PROTECTION
CURRENT
VOLTAGE
at V
R
= 0 V,
PATHS
t
p
= 10/1000 μs
at I
PPM
f = 1 MHz
I
PPM
(A)
21.7
19.4
17.9
16.7
15.5
14.7
13.9
13.5
11.8
11
10.1
9.3
8.6
8.2
7.7
7.2
5.8
V
C
(V)
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
C
D
TYP.
(pF)
1030
1010
850
750
730
670
660
620
570
460
440
420
370
350
340
310
305
N
channel
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Document Number: 83355
2
For technical questions, contact:
ESDprotection@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMF5V0A-M to SMF51A-M
www.vishay.com
Vishay Semiconductors
MAXIMUM
REVERSE
PEAK PULSE CLAMPING CAPACITANCE PROTECTION
CURRENT
VOLTAGE
at V
R
= 0 V,
PATHS
t
p
= 10/1000 μs
at I
PPM
f = 1 MHz
I
PPM
(A)
6.2
5.6
5.1
4.8
4.4
4.1
3.8
3.4
3.1
2.9
2.8
2.6
2.4
V
C
(V)
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
C
D
TYP.
(pF)
207
265
240
225
210
205
190
180
165
160
155
150
145
N
channel
1
1
1
1
1
1
1
1
1
1
1
1
1
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PART
NUMBER
REVERSE
BREAKDOWN
VOLTAGE
at I
T
, t
p
5 ms
V
BR
MIN.
(V)
SMF20A-M
SMF22A-M
SMF24A-M
SMF26A-M
SMF28A-M
SMF30A-M
SMF33A-M
SMF36A-M
SMF40A-M
SMF43A-M
SMF45A-M
SMF48A-M
SMF51A-M
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
REVERSE REVERSE
TEST
WORKING CURRENT
CURRENT VOLTAGE
at V
RWM
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
V
RWM
(V)
20
22
24
26
28
30
33
36
40
43
45
48
51
I
R
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
10
I
PPM
- Peak Pulse Current, % I
RSM
P
PP
- Peak Pulse Power (kW)
Non-repetitive pulse
waveform shown in fig. 3
T
A
= 25 °C
150
t
r
=10 µs
T
J
= 25 °C
pulse width (t
d
) is
defined as the point
where the peak current
decays to 50 % of I
PPM
100
Peak value
I
PPM
Half value I
PPM
I
PPM
2
1
50
10/100 s waveform
as defined by R.E.A.
0.1
0.1 µs 1.0 µs 10 µs 100 µs 1.0 ms 10 ms
17250
0
0
17252
t
d
1
2
t - Time (ms)
3
4
t
d
- Pulse Width (s)
Fig. 1 - Peak Pulse Power Rating
Fig. 3 - Pulse Waveform
Peak Pulse Power (P
PP
) or Current (I
PPM
)
Derating in Percentage (%)
100
75
50
25
0
0
25
50
75 100 125 150 175 200
17251
T
A
- Ambient Temperature
Fig. 2 - Pulse Derating Curve
Rev. 1.1, 30-Nov-11
Document Number: 83355
3
For technical questions, contact:
ESDprotection@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMF5V0A-M to SMF51A-M
www.vishay.com
PACKAGE DIMENSIONS
in millimeters (inches):
SMF
Vishay Semiconductors
0.85 (0.033)
0.35 (0.014)
0.25 (0.010)
0.05 (0.002)
0.1 (0.004)
5
1.9 (0.075)
1.7 (0.067)
1.2 (0.047)
0.8 (0.031)
0 (0.000)
Detail Z
enlarged
1.08 (0.043)
2.9 (0.114)
2.7 (0.106)
3.9 (0.154)
3.5 (0.138)
0.88 (0.035)
Foot print recommendation:
1.3 (0.051)
1.3 (0.051)
Created - Date: 15. February 2005
Rev. 3 - Date: 13. March 2007
Document no.:S8-V-3915.01-001 (4)
17247
1.4 (0.055)
2.9 (0.114)
Rev. 1.1, 30-Nov-11
Document Number: 83355
4
For technical questions, contact:
ESDprotection@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
5
SMF5V0A-M to SMF51A-M
www.vishay.com

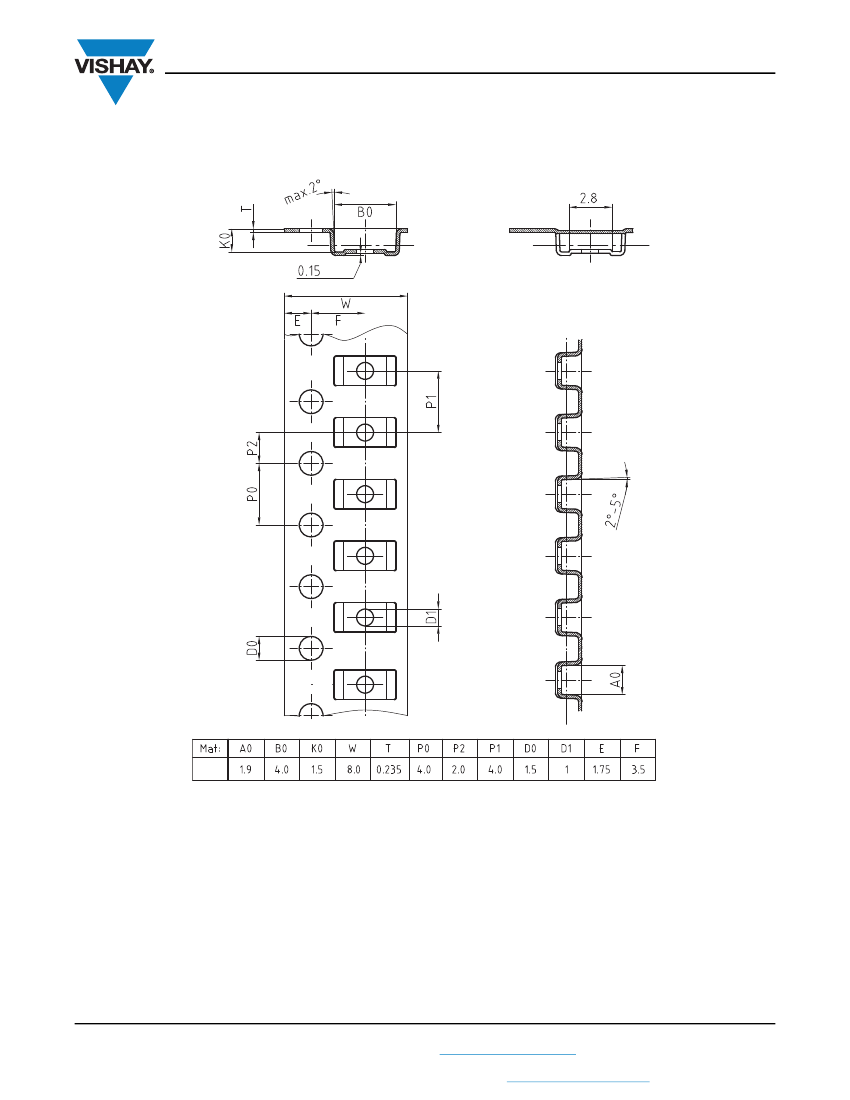

BLISTERTAPE DIMENSIONS
in millimeters (inches)
Vishay Semiconductors
PS
Document-No.: S8-V-3717.02-001 (3)
18513
Rev. 1.1, 30-Nov-11
Document Number: 83355
5
For technical questions, contact:
ESDprotection@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
