Light Touch Switches/EVQP2/3P2
4.7 mm 3.5 mm SMD Light Touch Switches
Type:
EVQP2/EVQ3P2
■
Features
●
External dimensions : 4.7 mm 3.5 mm,
Height : Middle Push Travel 2.5 mm
Short Push Travel 2.1 mm, 2.5 mm
●
High operating force and long operational life
●
High mountability with J-bent (4 terminals)
■
Recommended Applications
●
Operation switches for portable electronic equipment
(Mobile phones, Digital still cameras, Camcorders,
Portable audio players, etc.)
●
Keyless entry systems (automotive)
●
Car audio equipment
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
E
V
Product Code
Q
P
3
Type
2
P
Height
Push Plate Color
■
Specifications
Travel Type
Type
Rating
Contact Resistance
Electrical
Insulation Resistance
Dielectric Withstanding Voltage
Bouncing
Operating Force
Mechanical
Travel
Endurance
Operating Life
0.70 mm±0.15 mm
2.5 N:1000000 cycles min.
3.5 N: 500000 cycles min.
5.0 N: 200000 cycles min.
Middle Push Travel
Short Push Travel
Snap action / Push-on type SPST
10 µA 2 Vdc to 20 mA 15 Vdc (Resistive load)
100 m
100 M
max.
min.
250 Vac (1 minute)
10 ms max. (ON, OFF)
2.5 N, 3.5 N, 5.0 N
1.0 N, 1.6 N, 2.4 N, 3.5 N
0.25 mm
–0.15
mm
1.0 N, 1.6 N: 1000000 cycles min.
2.4 N: 500000 cycles min.
3.5 N: 200000 cycles min.
+0.05
Operating Temperature
Storage Temperature
Minimum Quantity/Packing Unit
Quantity/Carton
4000 pcs.
–40 °C to +85 °C
–40 °C to +85 °C (Bulk)
–20 °C to +60 °C (Taping)
Embossed Taping (Reel Pack)
20000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2008
Light Touch Switches/EVQP2/3P2
■

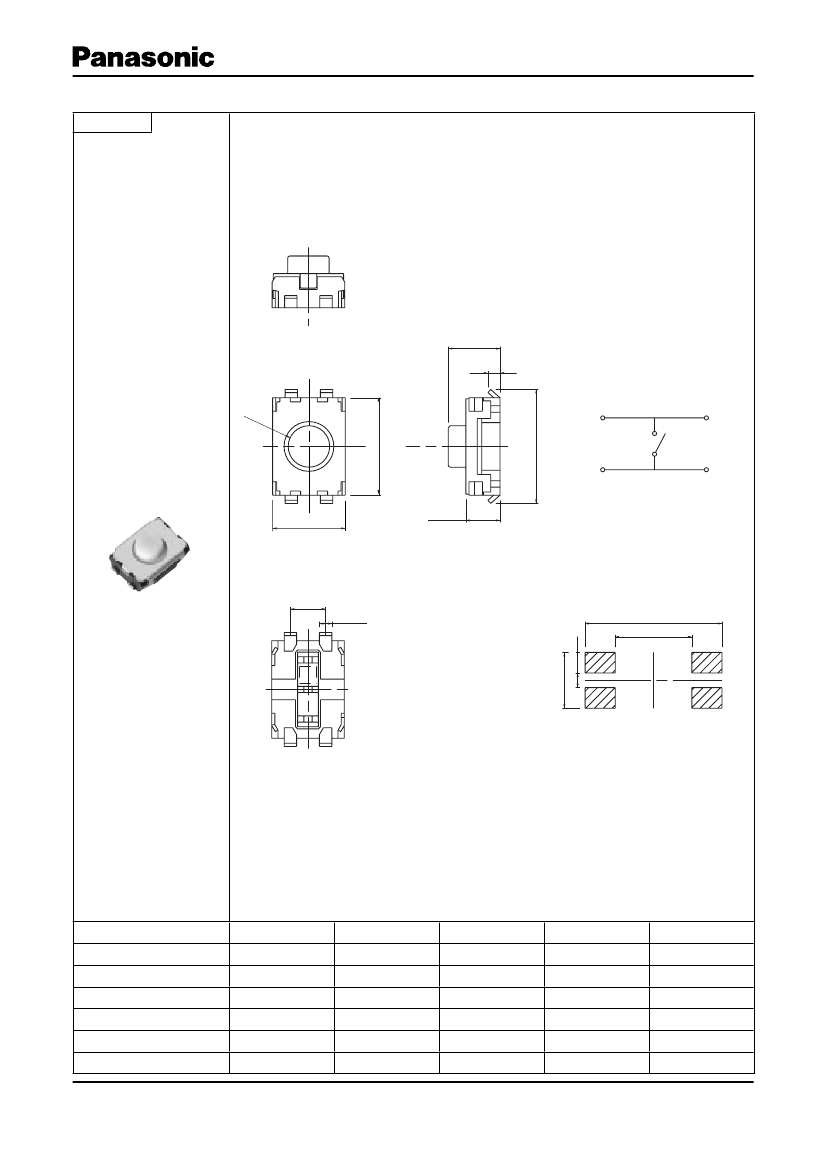

Dimensions in mm (not to scale)
No. 1
EVQP2
EVQ3P2
Middle push travel
With J-bent terminals
(With Ground terminal)
2.5
+0.2
–0.1
0.6
1
φ
1.
2
8
3
4.7±0.1
5.5
–0.3
+0
1
4
Circuit diagram
4
3
3.5±0.1
1.65±0.1
2
1.7±0.1
0.6±0.1
2.7±0.1
0.7±0.1
6.6±0.1
3.7±0.1
PWB land pattern for reference
Part Numbers
EVQP2B02B
EVQP2D02Q
EVQP2F02K
EVQP2H02B
EVQP2K02Q
EVQ3P202K
Ground Terminal Operating Force
With
With
With
Without
Without
Without
2.5 N
3.5 N
5.0 N
2.5 N
3.5 N
5.0 N
Height
2.5 mm
2.5 mm
2.5 mm
2.5 mm
2.5 mm
2.5 mm
Push Plate Color
Blue
Grey
Black
Blue
Grey
Black
Operating Life
1000000 cycles
500000 cycles
200000 cycles
1000000 cycles
500000 cycles
200000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Apr. 2008
Light Touch Switches/EVQP2/3P2
■

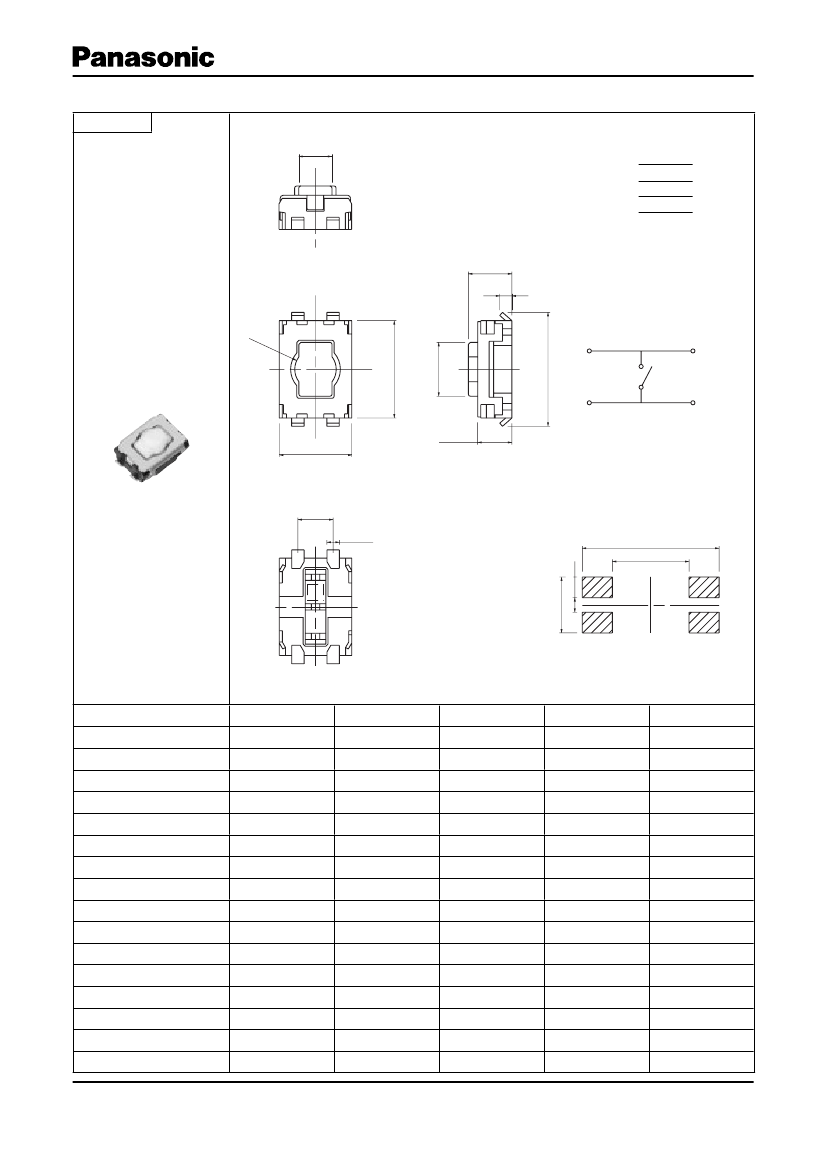

Dimensions in mm (not to scale)
No. 2
EVQP2
Short push travel
With J-bent terminals
(With Ground terminal)
1.6
H
2.1
+0.2
–0.1
2.5
+0.2
–0.1
H
0.6
1
φ
2
2
4.7±0.1
5.5
–0.3
3
1
2.6
+0
4
2
Circuit diagram
3
4
1.65±0.1
3.5
±0.1
1.7±0.1
0.6±0.1
6.6±0.1
3.7±0.1
2.7±0.1
0.7±0.1
PWB land pattern for reference
Part Numbers
EVQP2P02M
EVQP2P02W
EVQP2R02M
EVQP2R02W
EVQP2T02M
EVQP2T02W
EVQP2V02M
EVQP2V02W
EVQP2002M
EVQP2002W
EVQP2202M
EVQP2202W
EVQP2402M
EVQP2402W
EVQP2602M
EVQP2602W
Ground Terminal Operating Force
With
With
With
With
With
With
With
With
Without
Without
Without
Without
Without
Without
Without
Without
1.0 N
1.0 N
1.6 N
1.6 N
2.4 N
2.4 N
3.5 N
3.5 N
1.0 N
1.0 N
1.6 N
1.6 N
2.4 N
2.4 N
3.5 N
3.5 N
H=Height
2.1 mm
2.5 mm
2.1 mm
2.5 mm
2.1 mm
2.5 mm
2.1 mm
2.5 mm
2.1 mm
2.5 mm
2.1 mm
2.5 mm
2.1 mm
2.5 mm
2.1 mm
2.5 mm
Push Plate Color
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Natural
Operating Life
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
500000 cycles
500000 cycles
200000 cycles
200000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
1000000 cycles
500000 cycles
500000 cycles
200000 cycles
200000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Apr. 2008
Light Touch Switches/EVQP2/3P2
■

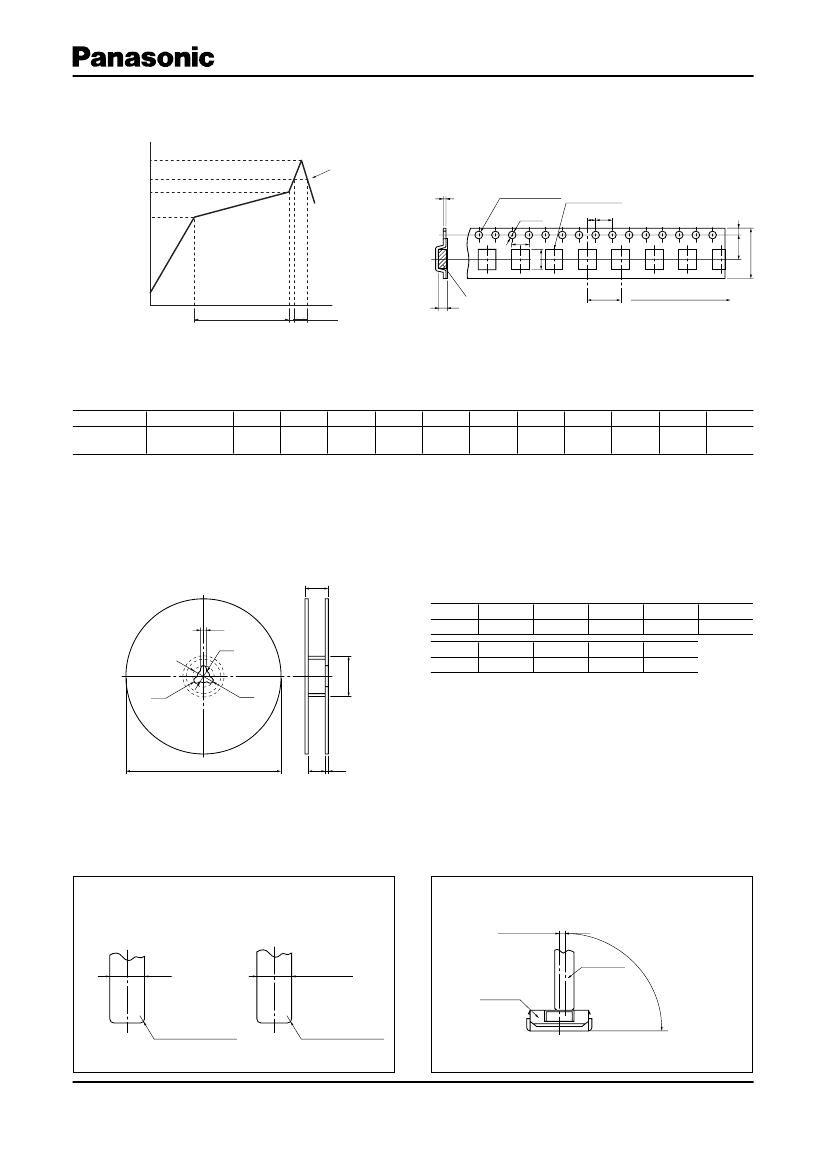

Recommended Reflow Soldering Conditions
MAX.
260
Operation Top (°C)
230
180
150
●
Embossed Carrier Taping
Fan or Normal Temp.
Tape width=12.0 mm
t
1
Feeding hole
φD
0
A
B
F
W
P
1
Tape running direction
Unit: mm
P
0
4.0±0.1
D
0
Dia.
1.5
–0
+0.1
Chip pocket
P
2
P
0
E
(Normal Temp.)
90±30
Soldering Time (s)
40±10
t
2
Chip component
Part No.
EVQP2
EVQ3P2
Height
2.1
2.5
A
6.0±0.2
B
4.7±0.2
W
12.0±0.3
F
E
P
1
P
2
2.0±0.1
t
1
0.3±0.1
t
2
2.7±0.2
5.5±0.1 1.75±0.10 8.0±0.1
●
Standard Reel Dimensions in mm (not to scale)
T
Item
E
C
B
A
B
C
D
φ21.0±1.0
r
1.0±0.5
E
2.0±0.5
Rate (mm)
φ370.0±2.0 φ50.0
min.
φ13.0±0.5
Item
W
T
—
t
1.0 to 3.0
Rate (mm) 14.0±1.5
r
D
A
W
t
■
Recommended Shape of Test Pole
■
Recommended Operating Conditions
2.1 mm Type
2.5 mm Type
0.3 mm max.
Leaning angle range
90 ˚±4 ˚
(vertical direction)
φ1.2
φ3.3
to
φ3.7
Switch
Test pole
R0.1 mm±0.05 mm
R0.1 mm±0.05 mm
Mounting surface
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2008
