2SB772SL-Q-T92-K datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB772SL-Q-T92-K

2SB772SL-Q-T92-K: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, LEAD FREE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size252KB，3 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric View All

2SB772SL-Q-T92-K Overview

Small Signal Bipolar Transistor, 3A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, LEAD FREE PACKAGE-3

2SB772SL-Q-T92-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	80 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

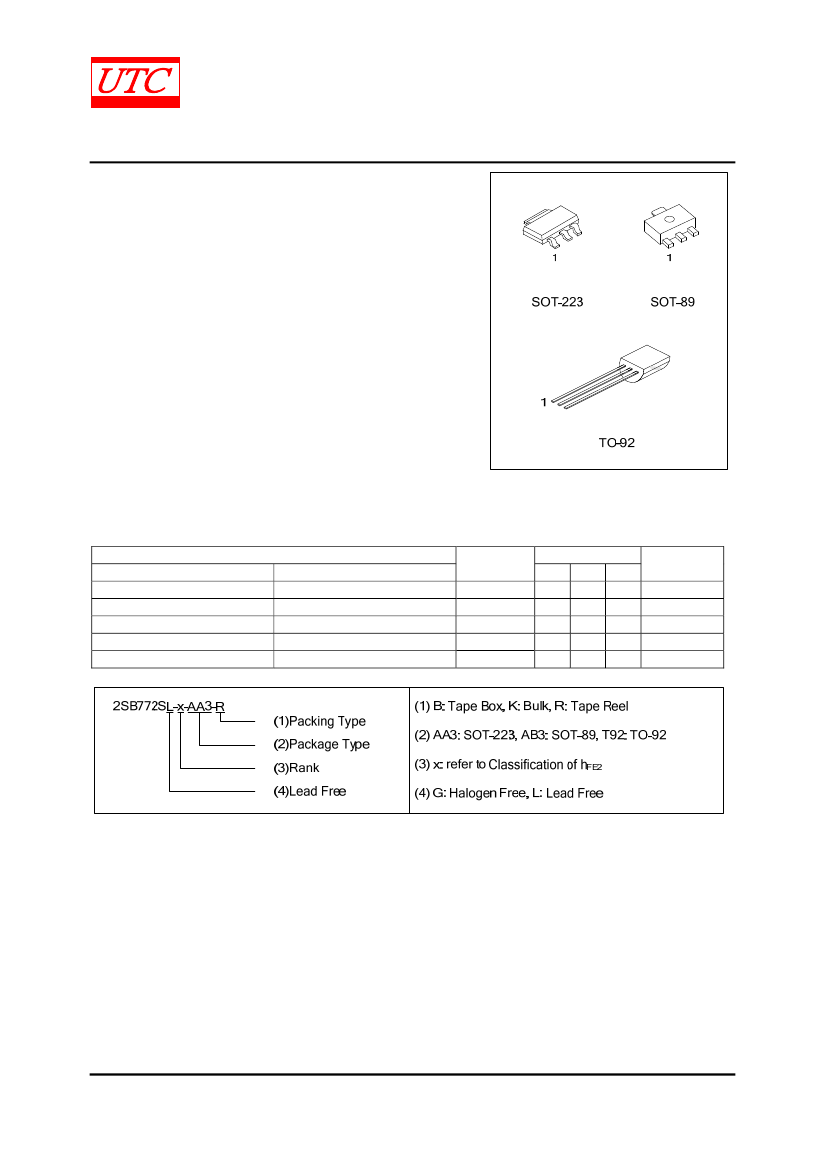

UNISONIC TECHNOLOGIES CO., LTD

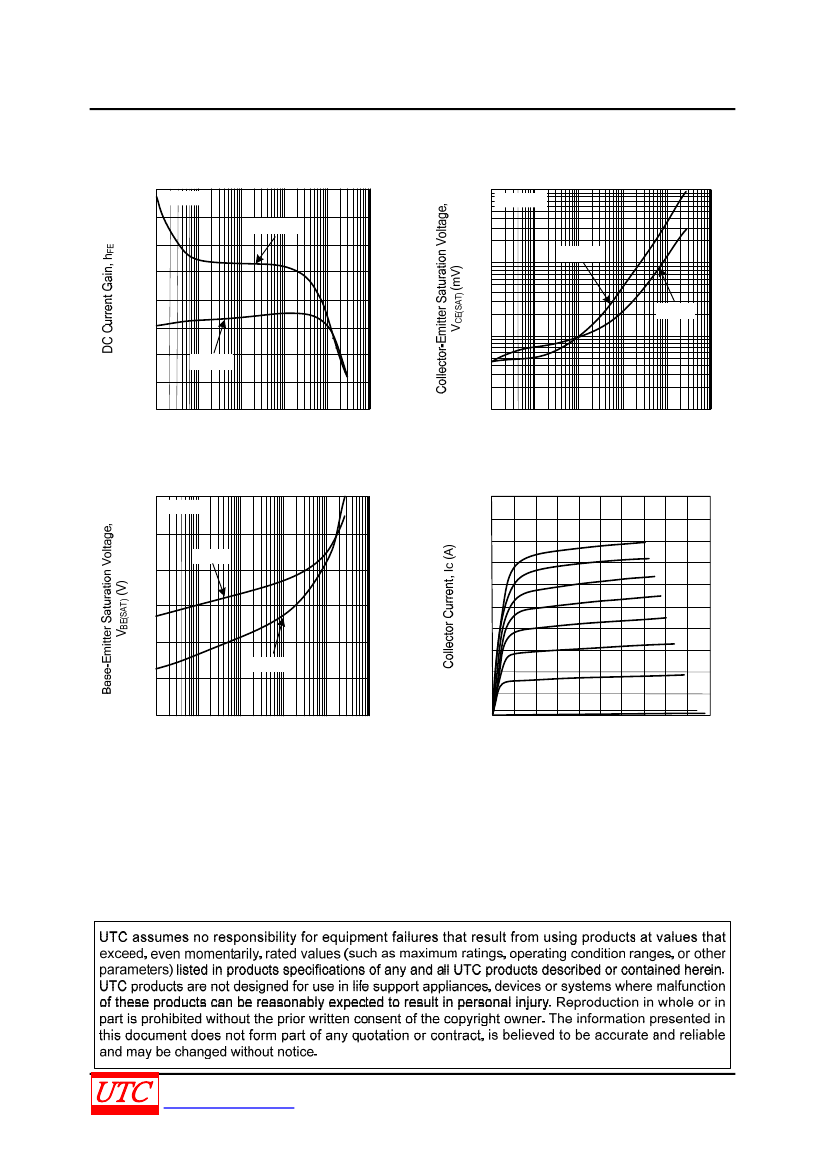

2SB772S

MEDIUM POWER LOW

VOLTAGE TRANSISTOR

DESCRIPTION

The UTC

2SB772S

is a medium power low voltage transistor,

designed for audio power amplifier, DC-DC converter and voltage

regulator.

PNP SILICON TRANSISTOR

FEATURES

* High current output up to 3A

* Low saturation voltage

* Complement to 2SD882S

ORDERING INFORMATION

Ordering Number

Lead Free

2SB772SL-x-AA3-R

2SB772SL-x-AB3-R

2SB772SL-x-T92-B

2SB772SL-x-T92-K

2SB772SL-x-T92-R

Halogen Free

2SB772SG-x-AA3-R

2SB772SG-x-AB3-R

2SB772SG-x-T92-B

2SB772SG-x-T92-K

2SB772SG-x-T92-R

Package

SOT-223

SOT-89

TO-92

Pin Assignment

Packing

Tape Reel

Tape Box

Bulk

Tape Reel

www.unisonic.com.tw

1 of 3

QW-R208-002.F
