FS1610DJ00TU

Description
Silicon Controlled Rectifier, 16A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-220AB, TO-220AB, 3 PIN
CategoryAnalog mixed-signal IC    Trigger device
File Size285KB，4 Pages
ManufacturerFagor Electrónica
Environmental Compliance
Download Datasheet Parametric Compare View All

FS1610DJ00TU Overview

Silicon Controlled Rectifier, 16A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-220AB, TO-220AB, 3 PIN

FS1610DJ00TU Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFagor Electrónica
Parts packaging codeTO-220AB
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codecompliant
Other featuresSENSITIVE GATE
Shell connectionISOLATED
ConfigurationSINGLE
Maximum DC gate trigger current25 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum rms on-state current16 A
Off-state repetitive peak voltage400 V
Repeated peak reverse voltage400 V
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR

Preview

Download Datasheet

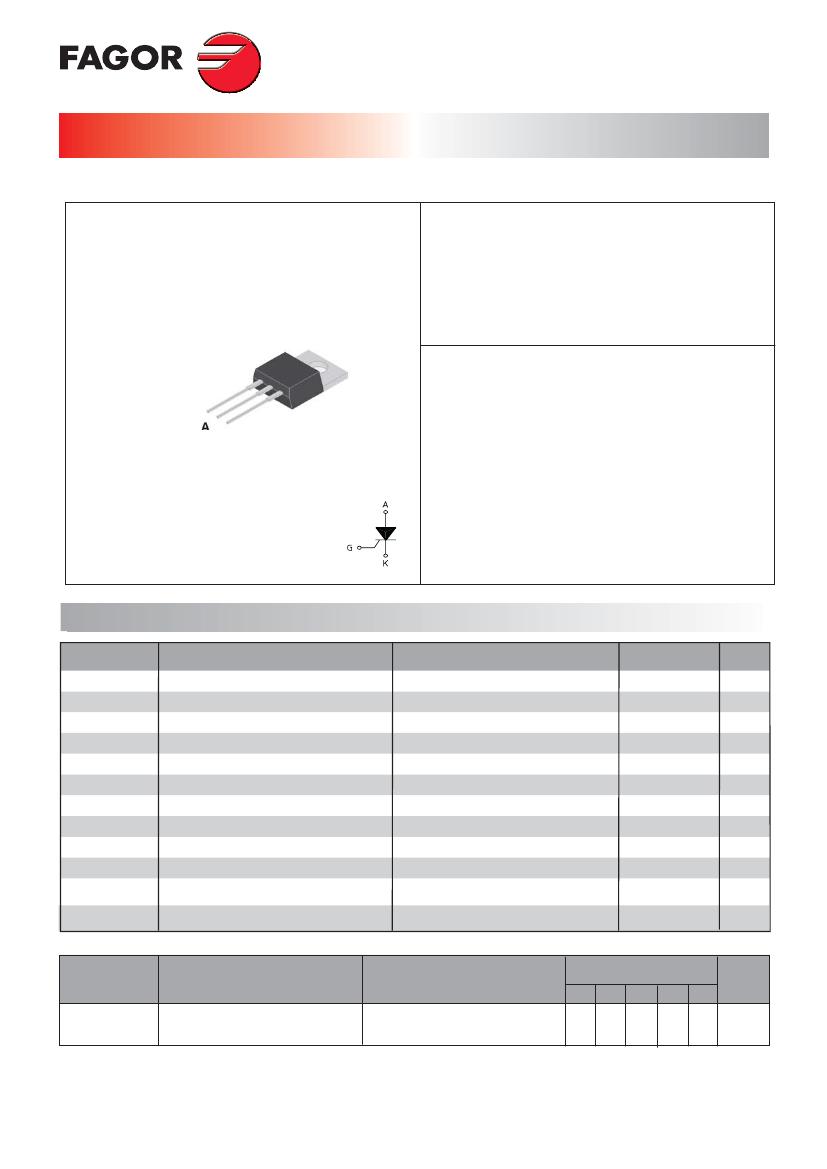

FS16...J
INSULATED
STANDARD SCR
INSULATED TO-220AB
On-State Current
16 Amp
Gate Trigger Current
2 mA to 40 mA
Off-State Voltage
200 V ÷ 800 V
These series of
Silicon Controlled Rectifier
use
a high performance PNPN technology.
K
A
G
These parts are intended for general purpose
applications where high gate sensitivity is
required. The FS....J series provides an isolated
tab (rated at 2500 Vrms).
* Low thermal resistance with clip bounding
* Low thermal resistance isolation
ceramic for FS....J
Absolute Maximum Ratings, according to IEC publication No. 134
SYMBOL
PARAMETER
On-state Current
Average On-state Current
Non-repetitive On-State Current
Non-repetitive On-State Current
Fusing Current
Peak Gate Current
Peak Gate Dissipation
Gate Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
Reverse Gate Voltage
PARAMETER
Repetitive Peak Off State
Voltage
CONDITIONS
R
GK
= 1 k
W
CONDITIONS
180º Conduction Angle, T
c
= 110 ºC
Half Cycle,
Q
= 180 º, T
C
= 110 ºC
Half Cycle, 60 Hz
Half Cycle, 50 Hz
t
p
= 10ms, Half Cycle
20 µs max.
20 µs max.
20ms max.
Value
16
10
200
190
180
4
10
1
(-40
to
+125)
(-40
to
+150)
260
5
VOLTAGE
B
D M
S
N
200 400 600 700 800
Unit
A
A
A
A
A
2
s
A
W
W
ºC
ºC
ºC
V
Unit
V
I
T(RMS)
I
T(AV)
I
TSM
I
TSM
I
2
t
I
GM
P
GM
P
G(AV)
T
j
T
stg
T
sld
V
RGM
SYMBOL
10s max.
V
DRM
V
RRM
Jul - 11

FS1610DJ00TU Related Products

FS1610DJ00TU FS1610BJ00TU FS1610MJ00TU FS1610NJ00TU FS1610SJ00TU
Description Silicon Controlled Rectifier, 16A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, TO-220AB, TO-220AB, 3 PIN Silicon Controlled Rectifier, 16A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element, TO-220AB, ISOLATED TO-220AB, 3 PIN Silicon Controlled Rectifier, 16A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element, TO-220AB, TO-220AB, 3 PIN Silicon Controlled Rectifier, 16A I(T)RMS, 800V V(DRM), 800V V(RRM), 1 Element, TO-220AB, TO-220AB, 3 PIN Silicon Controlled Rectifier, 16A I(T)RMS, 700V V(DRM), 700V V(RRM), 1 Element, TO-220AB, ISOLATED TO-220AB, 3 PIN
Maker Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica
Parts packaging code TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB
package instruction FLANGE MOUNT, R-PSFM-T3 ISOLATED TO-220AB, 3 PIN FLANGE MOUNT, R-PSFM-T3 TO-220AB, 3 PIN FLANGE MOUNT, R-PSFM-T3
Contacts 3 3 3 3 3
Reach Compliance Code compliant compliant compliant compliant compliant
Other features SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE SENSITIVE GATE
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum DC gate trigger current 25 mA 25 mA 25 mA 25 mA 25 mA
JEDEC-95 code TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Number of components 1 1 1 1 1
Number of terminals 3 3 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Maximum rms on-state current 16 A 16 A 16 A 16 A 16 A
Off-state repetitive peak voltage 400 V 200 V 600 V 800 V 700 V
Repeated peak reverse voltage 400 V 200 V 600 V 800 V 700 V
surface mount NO NO NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE
Trigger device type SCR SCR SCR SCR SCR
Is it Rohs certified? conform to - conform to conform to -
Peak Reflow Temperature (Celsius) NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED -
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED -
