Model the Gate Charge, Transient, and Diode Reverse Recovery
Characteristics
DESCRIPTION
The attached spice model describes the typical electrical
characteristics of the p-channel vertical DMOS. The subcircuit
model is extracted and optimized over the
−55
to 125°C
temperature ranges under the pulsed 0-V to 5-V gate drive. The
saturated output impedance is best fit at the gate bias near the
threshold voltage.
A novel gate-to-drain feedback capacitance network is used to model
the gate charge characteristics while avoiding convergence difficulties
of the switched C
gd
model. All model parameter values are optimized
to provide a best fit to the measured electrical data and are not
intended as an exact physical interpretation of the device.
SUBCIRCUIT MODEL SCHEMATIC
This document is intended as a SPICE modeling guideline and does not constitute a commercial product data sheet. Designers should refer to the appropriate
data sheet of the same number for guaranteed specification limits.
Document Number: 74212
S-61686Rev. A, 01-Jan-07
www.vishay.com
1
SPICE Device Model Si4465ADY
Vishay Siliconix
SPECIFICATIONS (T
J
= 25°C UNLESS OTHERWISE NOTED)
Parameter
Static
Gate Threshold Voltage
On-State Drain Current
a
V
GS(th)
I
D(on)
V
DS
= V
GS
, I
D
=
−250 µA
V
DS
≤ −5
V, V
GS
=
−4.5
V
V
GS
=
−4.5
V, I
D
=
−14
A
Drain-Source On-State Resistance
a
Symbol
Test Condition
Simulated
Data
0.61
410
0.0074
0.0092
0.012
43
−0.82
Measured
Data
Unit
V
A
0.0075
0.0092
0.013
58
−0.57
S
V
Ω
r
DS(on)
V
GS
=
−2.5
V, I
D
=
−12
A
V
GS
=
−1.8
V, I
D
=
−10
A
Forward Transconductance
Diode Forward Voltage
a
a
g
fs
V
SD
V
DS
=
−10
V, I
D
=
−14
A
I
S
=
−2.1
A
Dynamic
b
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Q
g
Q
gs
Q
gd
V
DS
=
−4
V, V
GS
=
−4.5
V, I
D
=
−14
A
49
6
10
55
6
10
nC
Notes
a. Pulse test; pulse width
≤
300
µs,
duty cycle
≤
2%.
b. Guaranteed by design, not subject to production testing.
www.vishay.com
2
Document Number: 74212
S-61686Rev. A, 01-Jan-07
SPICE Device Model Si4465ADY
Vishay Siliconix

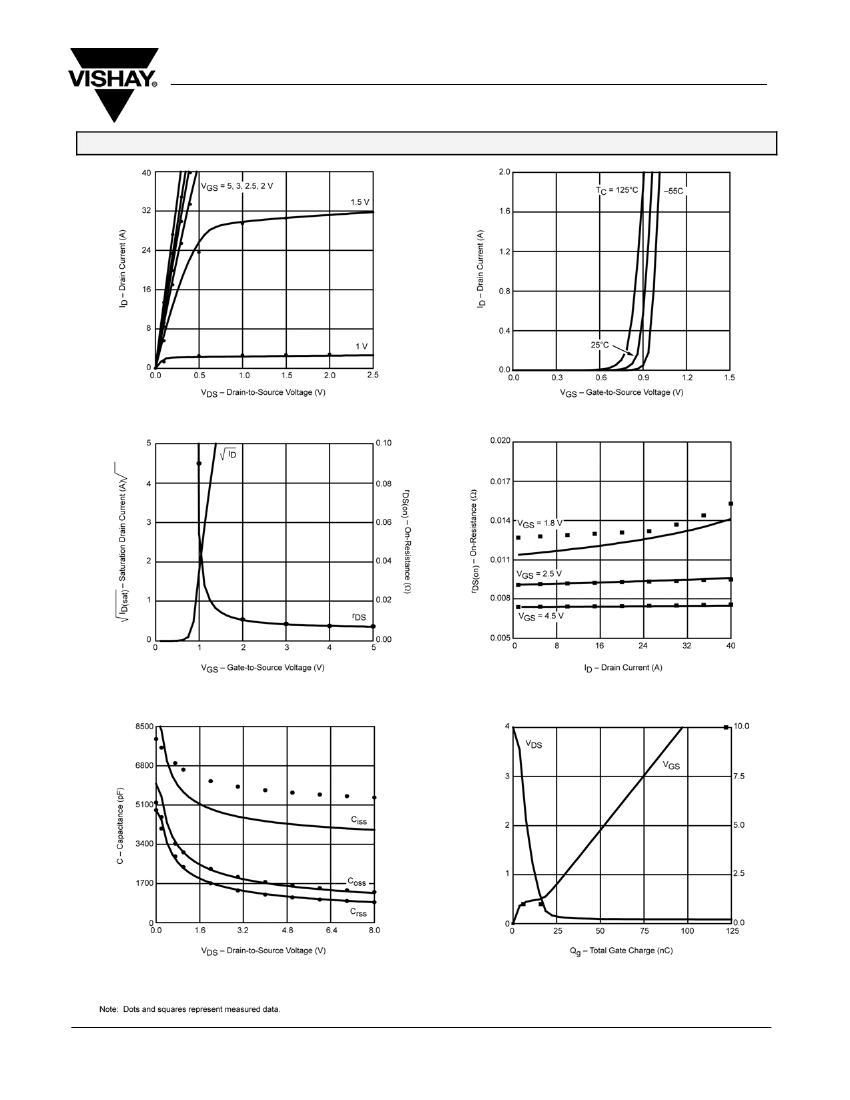

COMPARISON OF MODEL WITH MEASURED DATA (T
J
=25°C UNLESS OTHERWISE NOTED)
Document Number: 74212
S-61686Rev. A, 01-Jan-07
www.vishay.com
3
