SE15Pb thru SE15PJ
Vishay General Semiconductor
Surface Mount ESD Capability Rectifiers
eSMP
Series
®
FEATURES
• Very low profile - typical height of 1.0 mm
• Ideal for automated placement
• Oxide planar chip junction
• Low forward voltage drop
• Typical I
R
less than 0.1 μA
• ESD capability
• Meets MSL level 1, per
LF maximum peak of 260 °C
• AEC-Q101 qualified
1.5 A
100 V to 600 V
5 μA
0.868 V
175 °C
DO-220AA (SMP)
J-STD-020,
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
R
V
F
at I
F
= 1.0 A
T
J
max.
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
•
Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case:
DO-220AA (SMP)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS compliant, and
commercial grade
Base P/NHM3 - halogen-free, RoHS compliant, and
automotive grade
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 1A whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
TYPICAL APPLICATIONS
General purpose, polarity protection, and rail-to-rail
protection in both consumer and automotive applications.
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Average forward current (fig. 1)
Peak forward surge current 10 ms single half
sine-wave superimposed on rated load
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
T
J
, T
STG
SYMBOL
SE15PB
15B
100
SE15PD
15D
200
1.5
30
- 55 to + 175
SE15PG
15G
400
SE15PJ
15J
600
V
A
A
°C
UNIT
Document Number: 89025
Revision: 19-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
New Product
SE15Pb thru SE15PJ
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum reverse current
Maximum reverse recovery time
Typical junction capacitance
TEST CONDITIONS
I
F
= 1.5 A
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
SYMBOL
V
F (1)
TYP.
0.968
0.868
-
5.4
900
9.5
MAX.
1.05
V
0.95
5.0
μA
50
-
-
ns
pF
UNIT
Rated V
R
I
R (2)
t
rr
C
J
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °c unless otherwise noted)
PARAMETER
SYMBOL
R
JA
(1)
Typical thermal resistance
R
JL
(1)
R
JC
(1)
(1)
SE10PB
SE10PD
105
25
30
SE10PG
SE10PJ
UNIT
°C/W
Note
Thermal resistance from junction to ambient and junction to lead mounted on PCB with 5.0 mm x 5.0 mm copper pad areas. R
JL
- is
measured at the terminal of cathode band. R
JC
is measured at the top center of the body.
IMMUNITY TO ELECTRICAL STATIC DISCHARGE TO THE FOLLOWING STANDARDS
(T
A
= 25 °C unless otherwise noted)
STANDARD
AEC-Q101-001
AEC-Q101-002
JESD22-A114
JESD22-A114
IEC 61000-4-2
(2)
TEST TYPE
Human body model (contact mode)
Machine model (contact mode)
Human body model (contact mode)
Machine model (contact mode)
Human body model (contact mode)
Human body model (air-discharge mode)
(1)
TEST CONDITIONS
C = 100 pF, R = 1.5
C = 200 pF, R = 0
C = 150 pF, R = 1.5
C = 200 pF, R = 0
C = 150 pF, R = 150
C = 150 pF, R = 150
V
C
SYMBOL
CLASS
H3B
M4
3B
C
4
4
VALUE
> 8 kV
> 400 kV
> 8 kV
> 400 kV
> 8 kV
> 15 kV
Notes
Immunity to IEC 61000-4-2 air discharge mode has a typical performance > 30 kV
(2)
System ESD standard
(1)
ORDERING INFORMATION
(Example)
PREFERRED P/N
SE10PJ-M3/84A
SE10PJ-M3/85A
SE10PJHM3/84A
(1)
SE10PJHM3/85A
(1)
(1)
UNIT WEIGHT (g)
0.024
0.024
0.024
0.024
PREFERRED PACKAGE CODE
84A
85A
84A
85A
BASE QUANTITY
3000
10 000
3000
10 000
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
Automotive grade
www.vishay.com
2
For technical questions within your region, please contact one of the following:
Document Number: 89025
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Revision: 19-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
New Product
SE15Pb thru SE15PJ
Vishay General Semiconductor

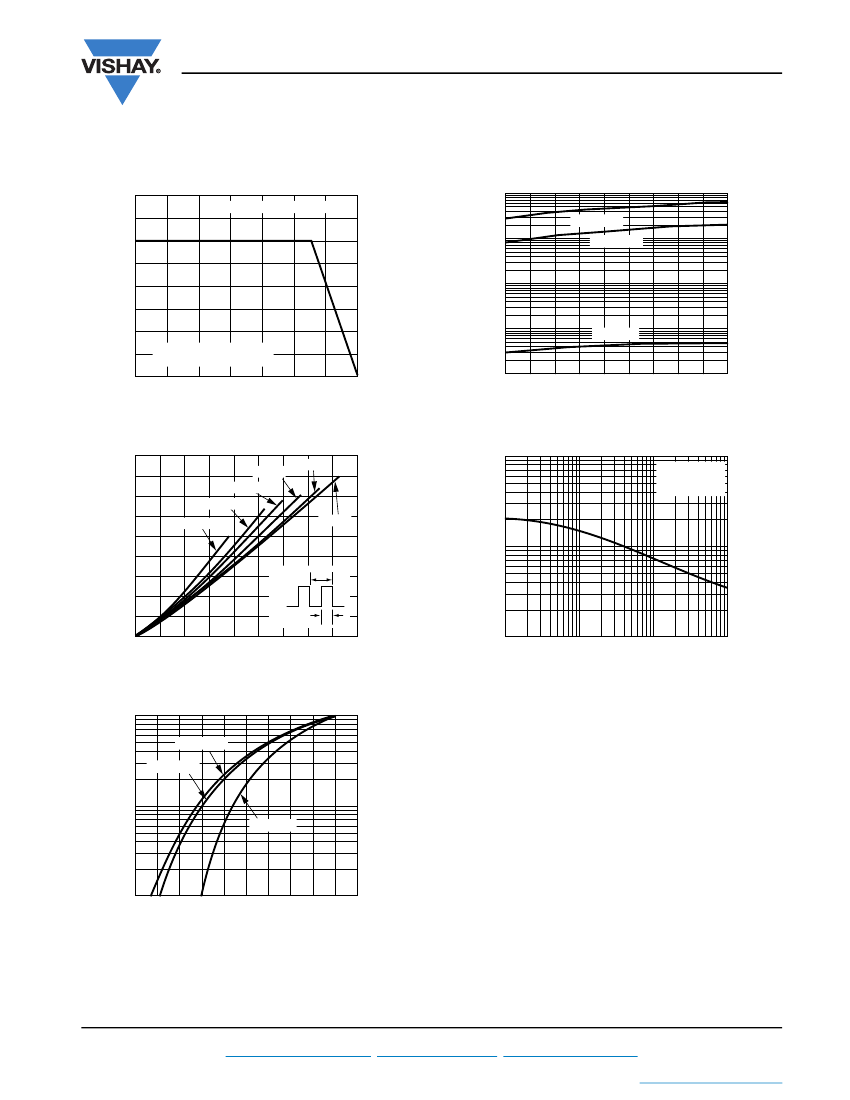

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25
C
unless otherwise noted)
2.0
Resistive or Inductive Load
100
Instantaneous Reverse Current (µA)
Average Forward Current (A)
T
J
= 175 °C
10
T
J
= 150 °C
1.5
1.0
1
0.5
T
L
Measured
at the Cathode Band Terminal
0
0
25
50
75
100
125
150
175
0.1
T
J
= 25 °C
0.01
10
20
30
40
50
60
70
80
90
100
Lead Temperature (°C)
Percent of Rated Peak Reverse
Voltage
(%)
Fig. 1 - Maximum Forward Current Derating Curve
1.8
1.6
D = 0.5
D = 0.3
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
D = t
p
/T
t
p
T
D = 0.2
D = 0.1
D = 1.0
D = 0.8
Fig. 4 - Typical Instantaneous Forward Characteristics
100
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
Junction Capacitance (pF)
Average Power Loss (W)
10
1
0.1
1
10
100
Average Forward Current (A)
Reverse
Voltage
(V)
Fig. 2 - Forward Power Loss Characteristics
10
Fig. 5 - Typical Instantaneous Forward Characteristics
Instantaneous Forward Current (A)
T
J
= 175 °C
T
J
= 150 °C
1
T
J
= 25 °C
0.1
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
Instantaneous Forward
Voltage
(V)
Fig. 3 - Forward Power Loss Characteristics
Document Number: 89025
Revision: 19-Apr-11
For technical questions within your region, please contact one of the following:
www.vishay.com
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
New Product
SE15Pb thru SE15PJ
Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-220AA (SMP)
Cathode Band
0.012 (0.30) REF.
0.086 (2.18)
0.074 (1.88)
0.053 (1.35)
0.041 (1.05)
0.036 (0.91)
0.024 (0.61)
0.142 (3.61)
0.126 (3.19)
0.158 (4.00)
0.146 (3.70)
0.103 (2.60)
0.087 (2.20)
0.032 (0.80)
0.016 (0.40)
0.105
(2.67)
0.013 (0.35)
0.004 (0.10)
0.045 (1.15)
0.033 (0.85)
0.012 (0.30) 0.018 (0.45)
0.000 (0.00) 0.006 (0.15)
0.100
(2.54)
0.025 0.030
(0.635) (0.762)
0.050
(1.27)
www.vishay.com
4
For technical questions within your region, please contact one of the following:
Document Number: 89025
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
Revision: 19-Apr-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
