B10-015-050-BGAMH

Description
Rectangular Connector, Plug
CategoryThe connector    The connector
File Size68KB,2 Pages
ManufacturerMitsumi Electric Co., Ltd.
Download Datasheet Parametric View All

B10-015-050-BGAMH Overview

Rectangular Connector, Plug

B10-015-050-BGAMH Parametric

Parameter NameAttribute value
MakerMitsumi Electric Co., Ltd.
Reach Compliance Codeunknown
Body/casing typePLUG
Connector typeRECTANGULAR CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberCAM-B10
OptionsGENERAL PURPOSE

B10-015-050-BGAMH Preview

MITSUMI
Detach Connectors
CAM-B10, B11 Series
Connectors
FEATURES
1. This connector allows for dismounting and
remounting of the front panel of car audio
equipment mainly to prevent burglary.
It is also suitable to the circuit connection between
various electronic units.
2. A fitting positioning guide provided on socket side
can absorb the play when fitting.
3. Socket connector which can be mounted directly
on the main circuit board reduces the cost of the
connector proper. Anti-static metal cover
provided.
CAM-B11(Socket)
CAM-B10(Plug)
HOW TO ORDER
1. CAM-B10 Series (Plug)
2. CAM-B11 Series (Socket)
B10-015-05 0-B G G A H
1
2
3
4
5
6
7
8
9
1
2
3 4 5 6 7 8 9
Series No. (B10)
No. of contacts (015 : 15pins)
Housing Material (05 : 46 Nylon)
Housing UL grade (0 : UL94V-0)
Contact finish
(B : Contacts/Gold plating, Read pin/Solder plating)
Contact pin plating thickness (G : 0.3µm)
Contact read style (A : Straight, G : Angle SMT)
Socket accessories (A : Non, M : Shielded case)
Plug accessories (A : Non, H : Wing)
B11-012-02 0-B G A M A
1
2
3
4
5
6
7
8
9
1
2
3 4 5 6 7 8 9
Series No. (B11)
No. of contacts (015 : 15pins)
Housing Material (02 : PBT resin)
UL grade (0 : UL94V-0)
Contact finish
(B : Contacts/Gold plating, Reads/Solder plating)
Contact pin plating thickness (G : 0.3µm)
Contact read style (A : Straight, G : Angle SMT)
Socket accessories (A Non, M : Shielded case)
Plug accessories (A : Non, H : Wing)
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
14V DC
1A
500V AC (rms) 1minute
100MΩ min. (at 500V DC)
50mΩ max.
MITSUMI
Detach Connectors
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
10,000 times
11.8N (1.2kgf ) max.
2~49N (0.2~5kgf )
-20~+80˚C
MATERIAL & FINISH
Component parts
Housing
CAM-B10
Contact
Wing
Housing
CAM-B11
Contact
Cover
Material
46 Nylon
Copper Alloy
Copper Alloy
PBT resin
Copper Alloy
Copper Alloy
Finish
——
Gold selective plating
Solder plating
——
Gold selective plating
Tin reflow plating

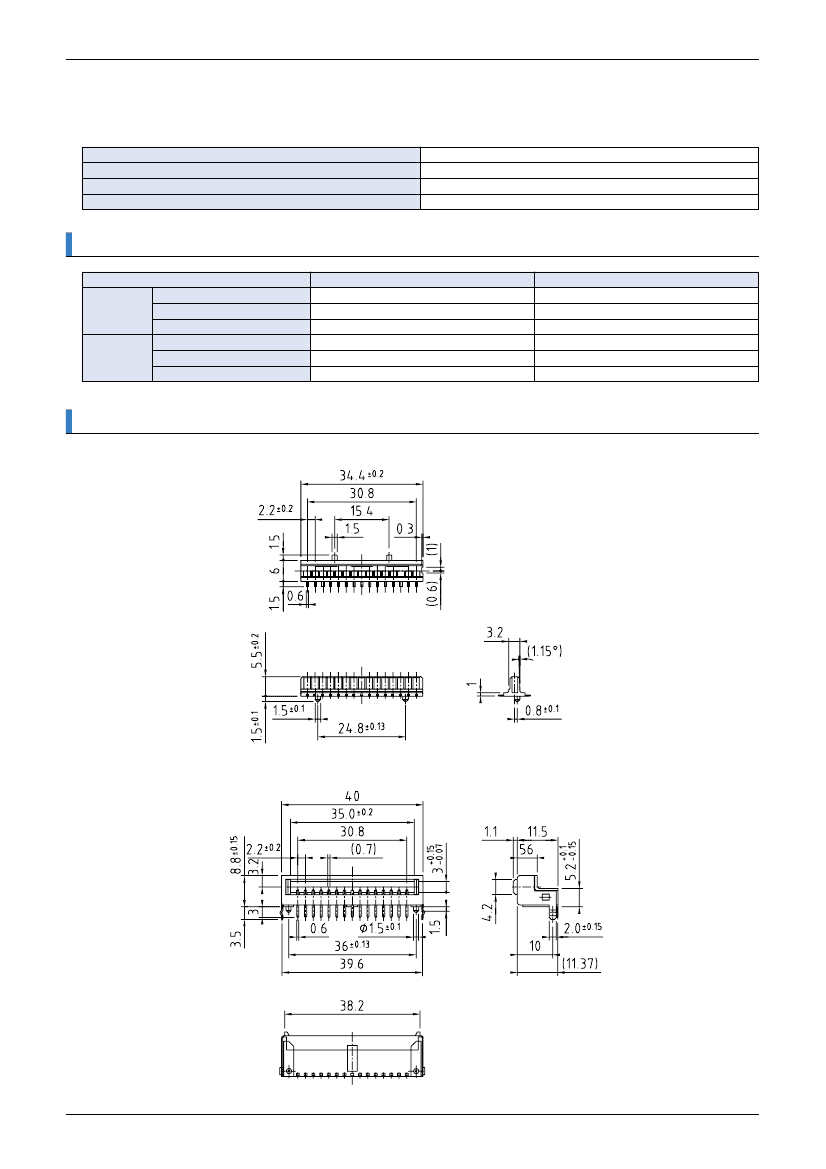

DIMENSIONS
CAM-B10 Series (Plug)
CAM-B11 Series (Socket)
Unit : mm
