Board to Board
Connectors
Female

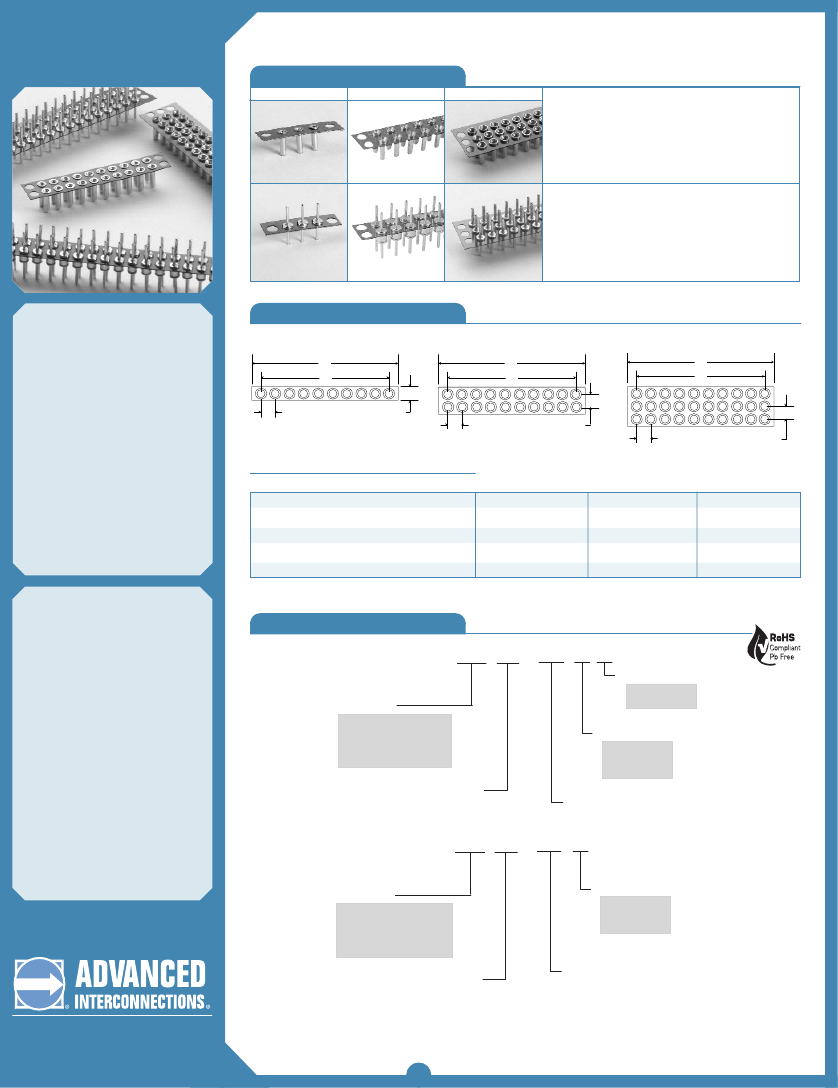

.079/(2.00mm) Pitch Board to Board Connectors
Peel-A-Way Insulators
Table of Models
Single Row
Dual Row
Triple Row
®
Description:
Peel-A-Way
®
(KMS, KMD, KMT)
Material: Polyimide Film
Index: -269°C to 400°C (-452°F to 752°F)
KMS
KMD
KMT
Male
Description:
Peel-A-Way
®
(KMA, KMB, KMC)
Material: Polyimide Film
Index: -269°C to 400°C (-452°F to 752°F)
KMA
KMB
KMC
Features:
• Supplied in high temperature Peel-
A-Way
®
removable terminal carrier.
• Male and female connectors are
designed in mating pairs.
• .079/(2.00mm) row to row pitch.
• High reliability screw-machined
terminals with closed-end
construction for 100% anti-wicking
of solder.
• For surface mount board to board
options consult factory.
• Reliable mechanical support.
• Custom configurations available.
Dimensional Information
Single Row
X
Y
.079 Typ.
(2.00)
.100 Typ.
(2.54)
Dual Row
X
Y
Triple Row
X
Y
.079 Typ.
(2.00)
.079 Typ.
(2.00)
.079 Typ.
(2.00)
.079 Typ.
(2.00)
Total # of Pins per Connector
Single
010
020
030
040
050
Dual
020
040
060
080
100
Triple
030
060
090
120
150
# of Pins
Per Row
10
20
30
40
50
1.654/(42.00)
2.441/(62.00)
4.016/(102.00)
3.228/(82.00)
X
in. (mm)
.866/(22.00)
1.496/(38.00)
2.283/(58.00)
3.071/(78.00)
3.858/(98.00)
Y
in. (mm)
.709/(18.00)
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Contacts:
Beryllium Copper
(C17200) ASTM-B-194
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Gold per ASTM-B-488
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
Multiply number of rows by number of pins per row for total pin count in part number.
How To Order
Female
KMT 090 - 85
M G
Contact Plating
RoHS Compliant:
Body Type
RoHS Compliant Insulators:
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
KMS - Single Row
KMD - Dual Row
KMT - Triple Row
Total Number of Pins
(no. of pins per row x no. of rows)
Std. pins per row = 10, 20, 30, 40 & 50
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options
Male
KMC 090 - 165
M
Terminal Plating
RoHS Compliant:
Body Type
RoHS Compliant Insulators:
KMA - Single Row
KMB - Dual Row
KMC - Triple Row
Total Number of Pins
(no. of pins per row x no. of rows)
Std. pins per row = 10, 20, 30, 40 & 50
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16A
G - Gold
M - Matte Tin
T - Tin/Lead
Terminal Type
See options
Note: Terminals plated with Matte Tin are available only with Gold plated contacts.
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
inch/(mm)
.079/(2.00mm) Pitch Board to Board Connectors
Peel-A-Way Insulators
Standard Female Terminals
Peel-A-Way
®
only
.058 Dia.
(1.47)
®
Additional standard and custom terminals available.
See Terminals section or consult factory.
Peel-A-Way
®
only
.058 Dia.
(1.47)
Board to Board
Connectors
Type -85
Peel-A-Way
®
only
.058 Dia.
(1.47)
Type -176
Type -210
Peel-A-Way
®
only
.058 Dia.
(1.47)
Type -95
.031
(.79)
.155
(3.94)
.031
(.79)
.155
(3.94)
.015
(.38)
.155
(3.94)
.155
(3.94)
PCB
.038 Dia.
(.97)
.125
(3.18)
.038 Dia.
(.97)
.034 Dia.
(.86)
.034 Dia.
(.86)
PCB
.020 Dia.
(.51)
Standard Male Terminals
Peel-A-Way
®
only
.018 Dia.
(.46)
.058 Dia.
(1.47)
Type -165
Peel-A-Way
®
only
.018 Dia.
(.46)
Type -339
Peel-A-Way
®
only
.018 Dia.
(.46)
Type -340
Peel-A-Way
®
only
.018 Dia.
(.46)
Type -525
.125
(3.18)
.058 Dia.
(1.47)
.070
(1.78)
.125
(3.18)
.058 Dia.
(1.47)
.085
(2.16)
.125
(3.18)
.129
(3.28)
.031
(.79)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.018 Dia.
(.46)
.125
(3.18)
.040 Dia.
(1.02)
.018 Dia.
(.46)
.031
(.79)

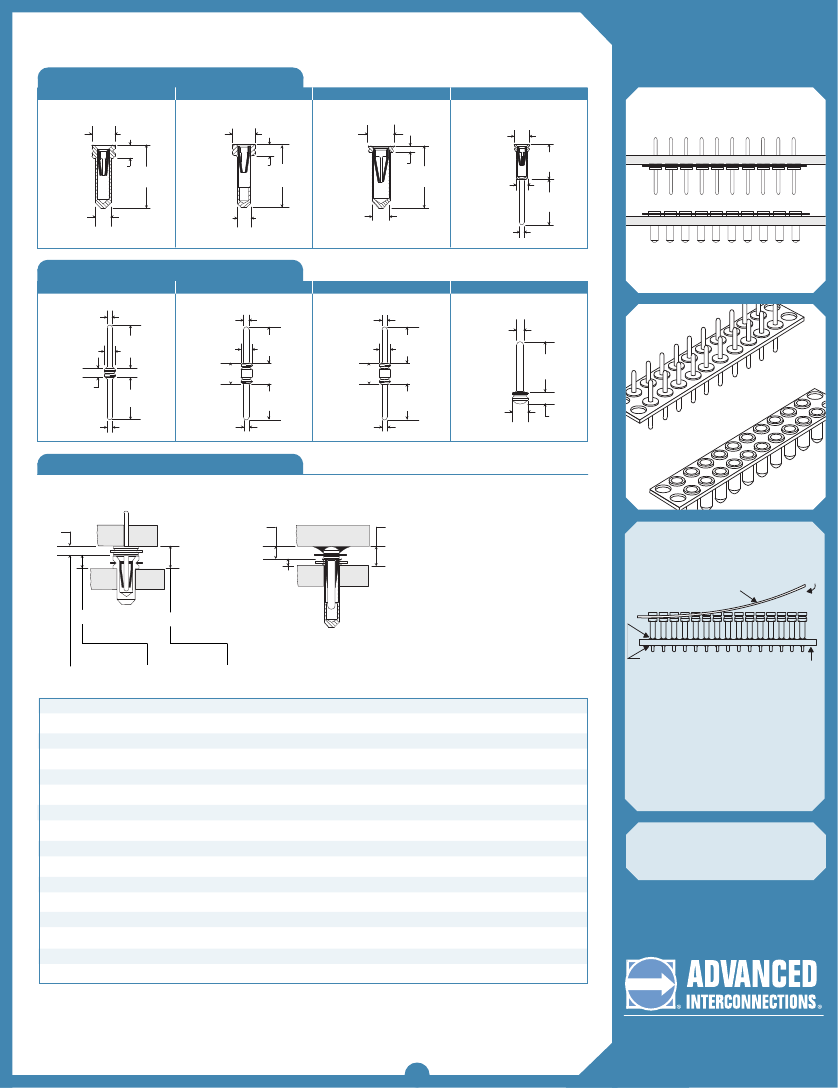

Dimensional Information
Figure 1
Thru-Hole
Figure 2
Surface Mount
B
B
A
A
Peel-A-Way Removable
Carriers
Peel away
C
C
C
Polyimide Film
after soldering
to PCB.
®
A
Order one each Male & Female
to get the required “A” dim.
Male Part #
KMB020-165G
KMB020-525G
KMB020-165G
KMB020-525G
KMB020-165G
KMB020-525G
KMB020-321G
KMB020-322G
KMB020-321G
KMB020-321G
KMB020-322G
KMB020-322G
KMB020-165G
KMB020-525G
KMB020-321G
KMB020-322G
Female Part #
KMD020-210MG
KMD020-210MG
KMD020-85MG
KMD020-85MG
Fig. #
1
2
1
2
1
2
1
1
1
1
1
1
1
2
1
1
Solder fillets visible both sides
for inspection and cleaning.
B
in./(mm)
.031/(.79)
.031/(.79)
.031/(.79)
.031/(.79)
.031/(.79)
.031/(.79)
.070/(1.78)
.085/(2.16)
.070/(1.78)
.070/(1.78)
.085/(2.16)
.085/(2.16)
.031/(.79)
.031/(.79)
C
in./(mm)
.015/(.38)
.015/(.38)
.031/(.79)
.031/(.79)
.031/(.79)
.031/(.79)
.015/(.38)
.015/(.38)
.031/(.79)
.031/(.79)
.031/(.79)
.031/(.79)
.155/(3.94)
.155/(3.94)
.155/(3.94)
.155/(3.94)
A
in./(mm)
.046/(1.17)
.046/(1.17)
.062/(1.57)
.062/(1.57)
.062/(1.57)
.062/(1.57)
.085/(2.16)
.100/(2.54)
.101/(2.57)
.101/(2.57)
.116/(2.95)
.116/(2.95)
PCB
1. Place socket on PC board.
2. Send PC board and socket through
soldering operation.
3. Peel away polyimide film carrier
for complete solder joint visibility
or leave in place for added
stability.
KMD020-176MG
KMD020-176MG
KMD020-210MG
KMD020-210MG
KMD020-85MG
KMD020-85MG
KMD020-95MG
KMD020-95MG
KMD020-95MG
KMD020-95MG
KMD020-176MG
KMD020-176MG
Available Online:
• RoHS Qualification Test Report
.186/(4.72)
.186/(4.72)
.225/(5.72)
.240/(6.10)
.070/(1.78)
.085/(2.16)
20 position dual row part numbers shown. See How To Order section for ordering information.
If required “A” dimension is not shown, consult factory.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16A
