312 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 312

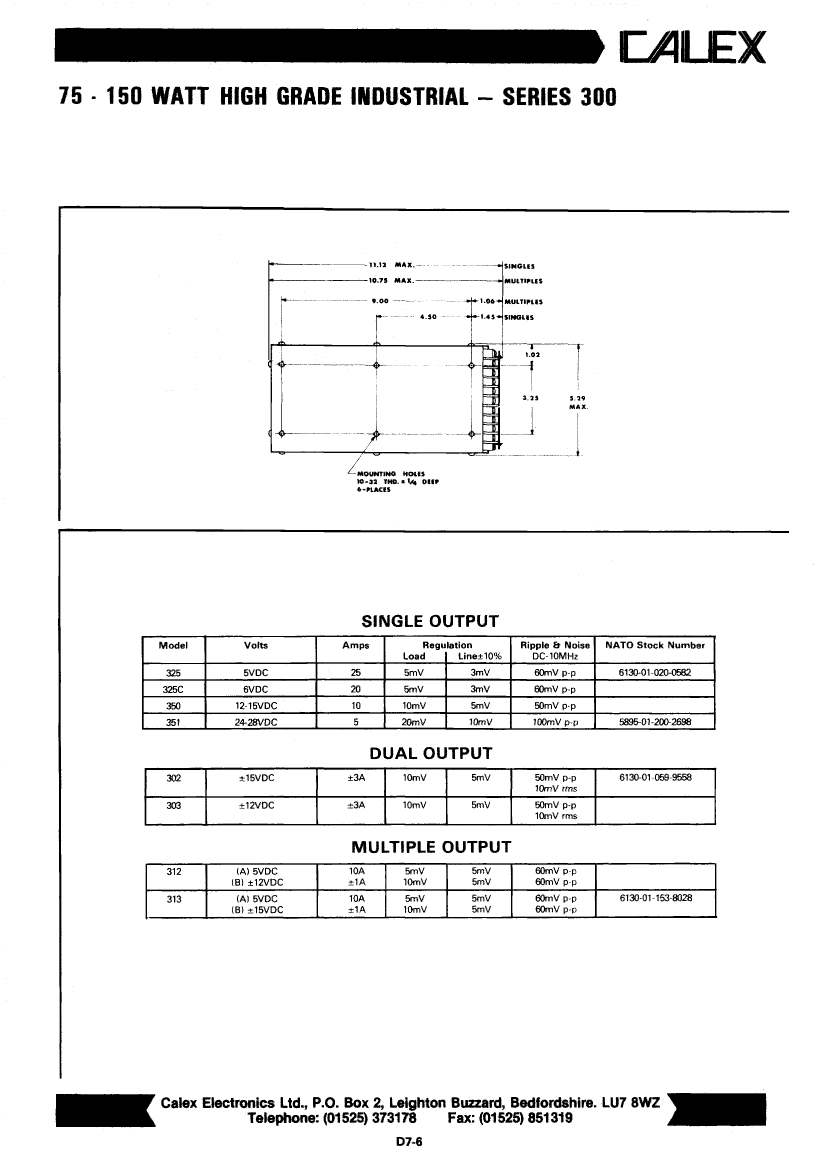

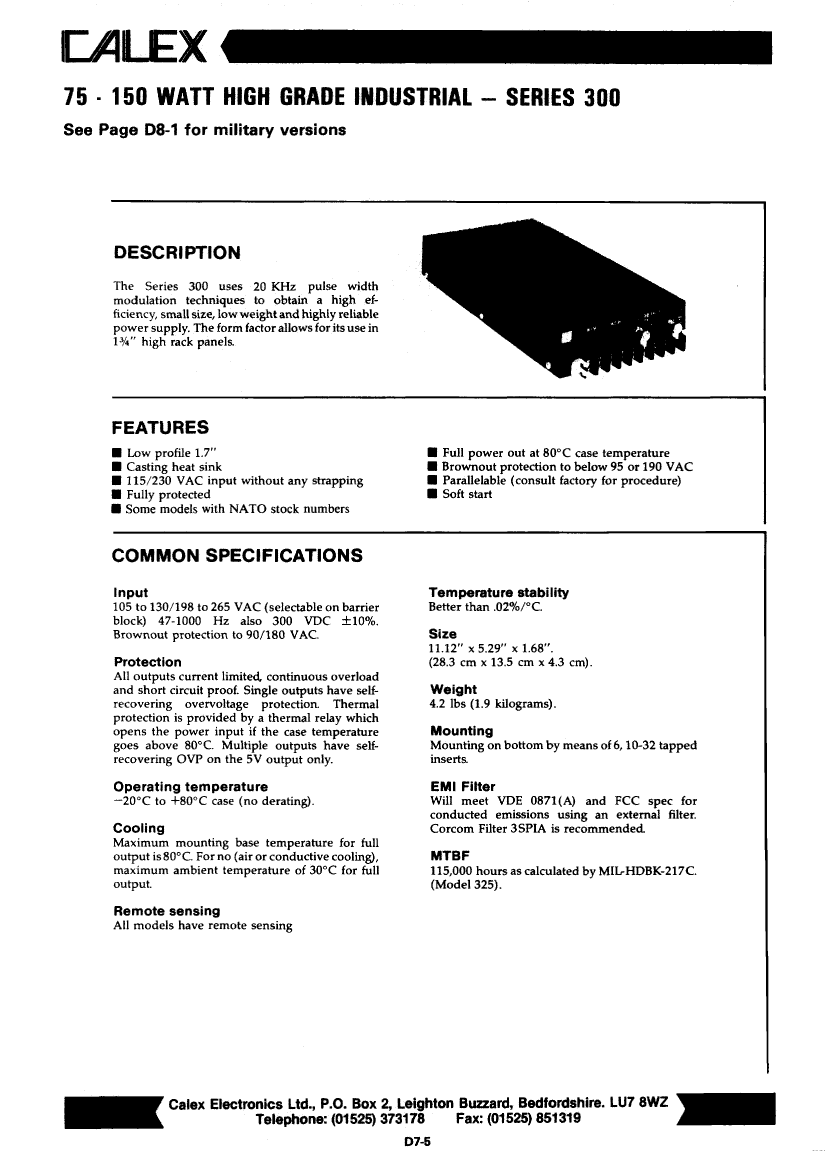

312: DescriptionAC-DC Regulated Power Supply Module, 3 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE; CategoryPower/power management The power supply circuit; File Size73KB，2 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

312 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	312	-	-	View	Buy Now

312 Overview

AC-DC Regulated Power Supply Module, 3 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE

312 Parametric

Parameter Name	Attribute value
Maker	Calex Mfg Co Inc.
Parts packaging code	MODULE
package instruction	11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IT AVAILABLE 198 TO 265 VAC
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	130 V
Minimum input voltage	105 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X
Maximum load regulation	0.1%
Number of functions	1
Output times	3
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Temperature level	COMMERCIAL EXTENDED
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

312 Related Products

	312	325C	313	302	303
Description	AC-DC Regulated Power Supply Module, 3 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	AC-DC Regulated Power Supply Module, 1 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	AC-DC Regulated Power Supply Module, 3 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	AC-DC Regulated Power Supply Module, 2 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	AC-DC Regulated Power Supply Module, 2 Output, 11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE
Maker	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.	Calex Mfg Co Inc.
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE	11.120 X 5.290 INCH, 1.680 INCH HEIGHT, LOW PROFILE, MODULE
Reach Compliance Code	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	IT AVAILABLE 198 TO 265 VAC	IT AVAILABLE 198 TO 265 VAC	IT AVAILABLE 198 TO 265 VAC	IT AVAILABLE 198 TO 265 VAC	IT AVAILABLE 198 TO 265 VAC
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	130 V	130 V	130 V	130 V	130 V
Minimum input voltage	105 V	105 V	105 V	105 V	105 V
Nominal input voltage	115 V	115 V	115 V	115 V	115 V
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
Maximum load regulation	0.1%	0.083%	0.1%	0.067%	0.083%
Number of functions	1	1	1	1	1
Output times	3	1	3	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Nominal output voltage	5 V	6 V	5 V	15 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
