LBSW-426316118

Description
Switch, 2X2 Port, LC Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-10
CategoryWireless rf/communication    Optical fiber
File Size420KB,5 Pages
ManufacturerLaser Components USA Inc.
Environmental Compliance
Download Datasheet Parametric View All

LBSW-426316118 Overview

Switch, 2X2 Port, LC Connector, Through Hole Mount, ROHS COMPLIANT, PACKAGE-10

LBSW-426316118 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerLaser Components USA Inc.
Reach Compliance Codeunknown
body height8.5 mm
Body length or diameter30 mm
Connection TypeLC CONNECTOR
Crosstalk35 dB
Fiber optic equipment typesSWITCH
Fiber type62.5/125, MMF
Installation featuresTHROUGH HOLE MOUNT
Maximum operating temperature70 °C
Minimum operating temperature
Nominal operating wavelength650 nm
Maximum optical input power300 mW
optical life10000000 Cycle(s)
Port configuration2X2
surface mountNO
Switch actionNON-LATCHING
switching speed3 ms

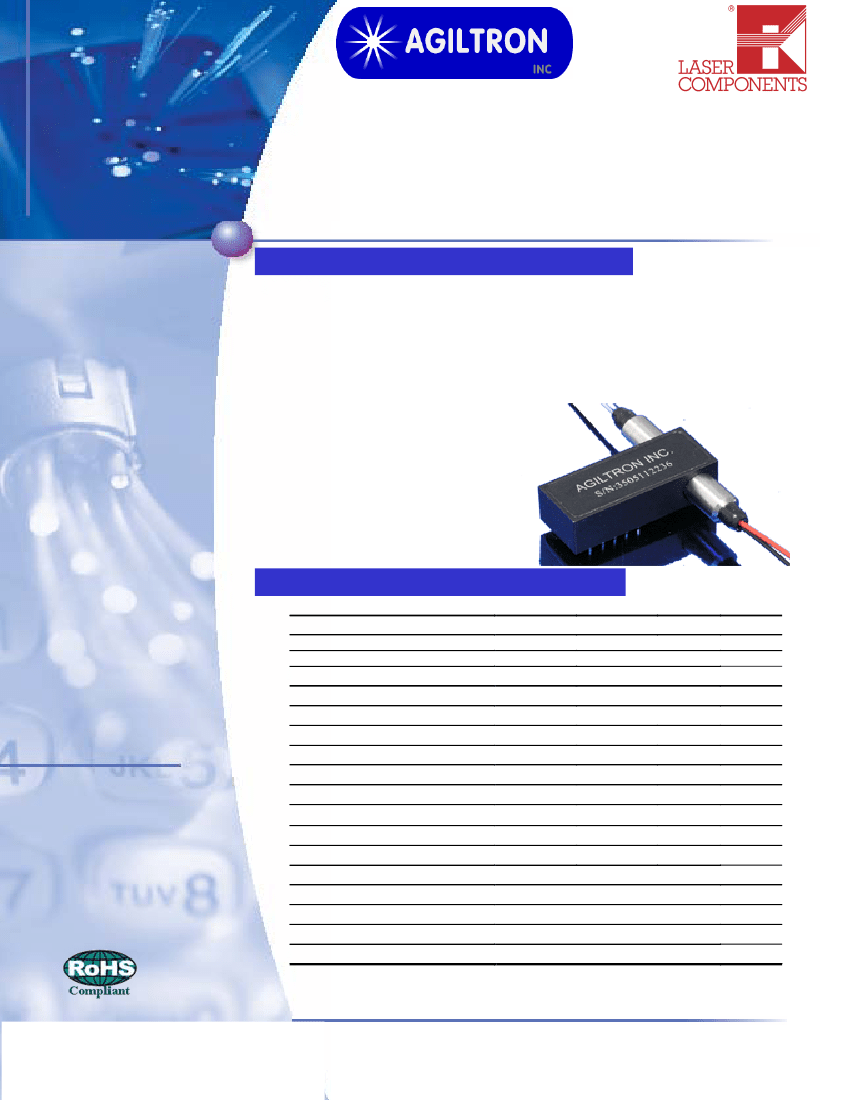

LightBend
TM

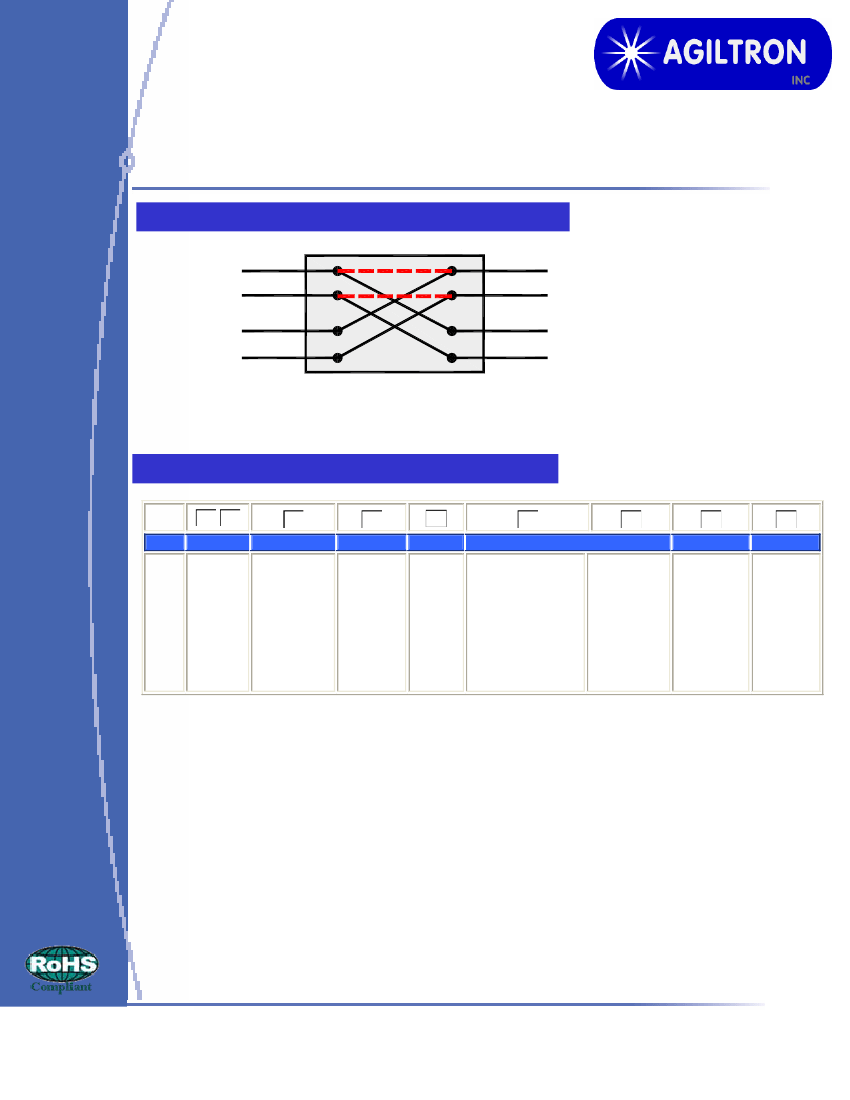

Dual 2x2 Bypass
Multimode Fiberoptic Switch
(Protected by U.S. patent 6823102 and pending patents)
Product Description
The LB Dual 2x2 Bypass Multimode Fiberoptic switch is a highly integrated
single device with 8 fiber ports. Based on an Agiltron’s pending patent, the
switch is designed especially for protection and restoration applications. The
switch is activated by a 5V pulse between two states, and the latching
operation preserves the selected optical path after the drive signal has been
removed. The switch has integrated electrical contact based position sensors.
The simple design significantly reduces moving part position sensitivity,
offering unprecedented high stability as well as an unmatched low cost.
Electronic driver is available for this series of switches.
Features
Low Optical Distortions
8 Ports Integration
High Isolation
High Reliability
Fail-Safe Latching
Epoxy-Free Optical Path
Low Cost
Performance Specifications
LB Dual 2x2 Bypass Switch
Wavelength
Insertion Loss
1,2
Wavelength Dependent Loss
Return Loss
1,2
Cross Talk
1
Min
850
Typical
Max
1310, ,1410, 1550
0.7
1.0
0.25
Unit
nm
dB
dB
dB
dB
35
35
3
10
7
300
5
(Square)
Switching Time
Repeatability
Durability
Operating Optical Power
Operating Voltage
Operating Current
Switching Type
Operating Temperature
Optical Power Handling
Storage Temperature

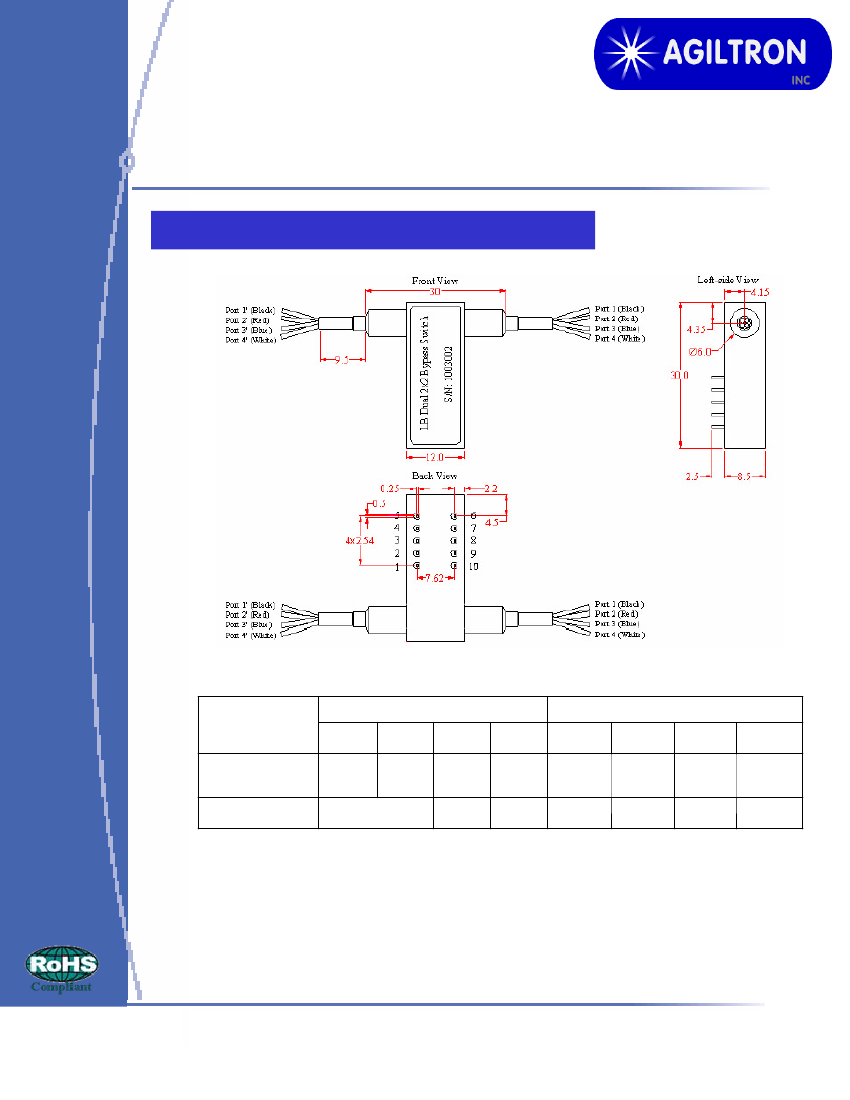

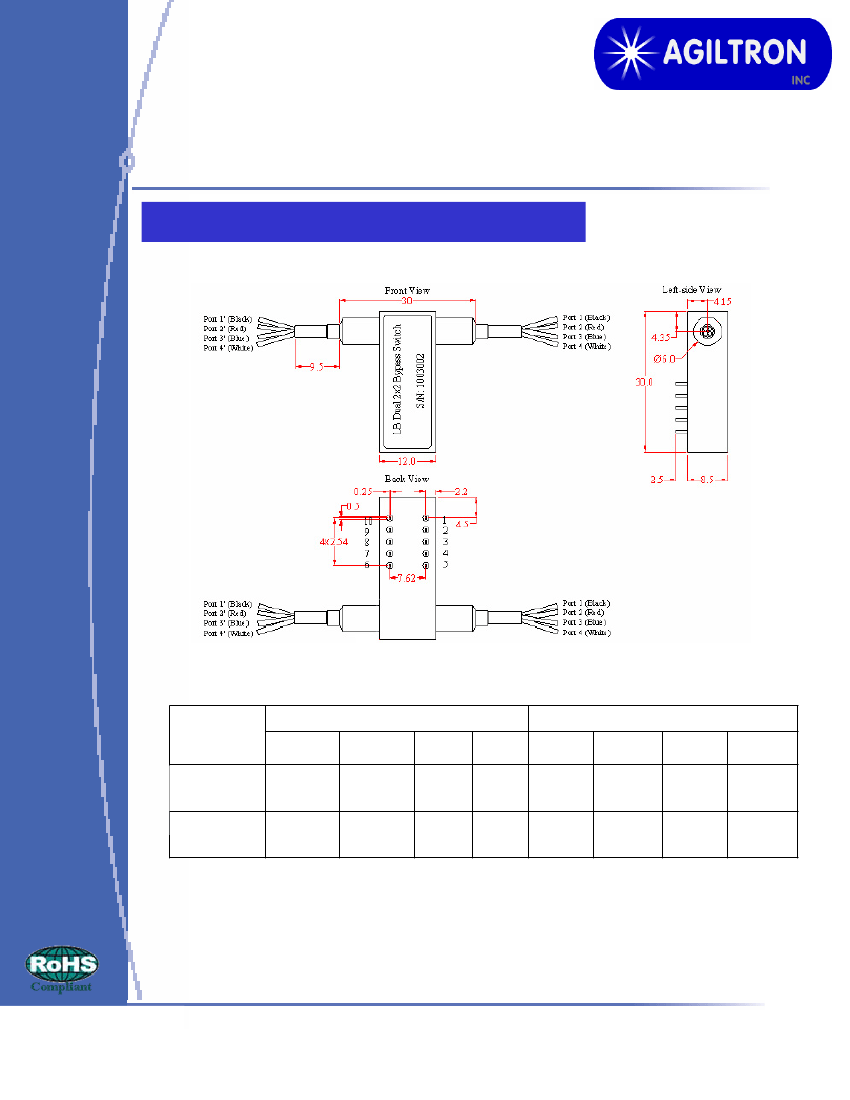

Package Dimension
(Latching/Non-Latching)
10
±0.02
500
7
60
ms
dB
Cycles
mW
VDC
mA
ms
o

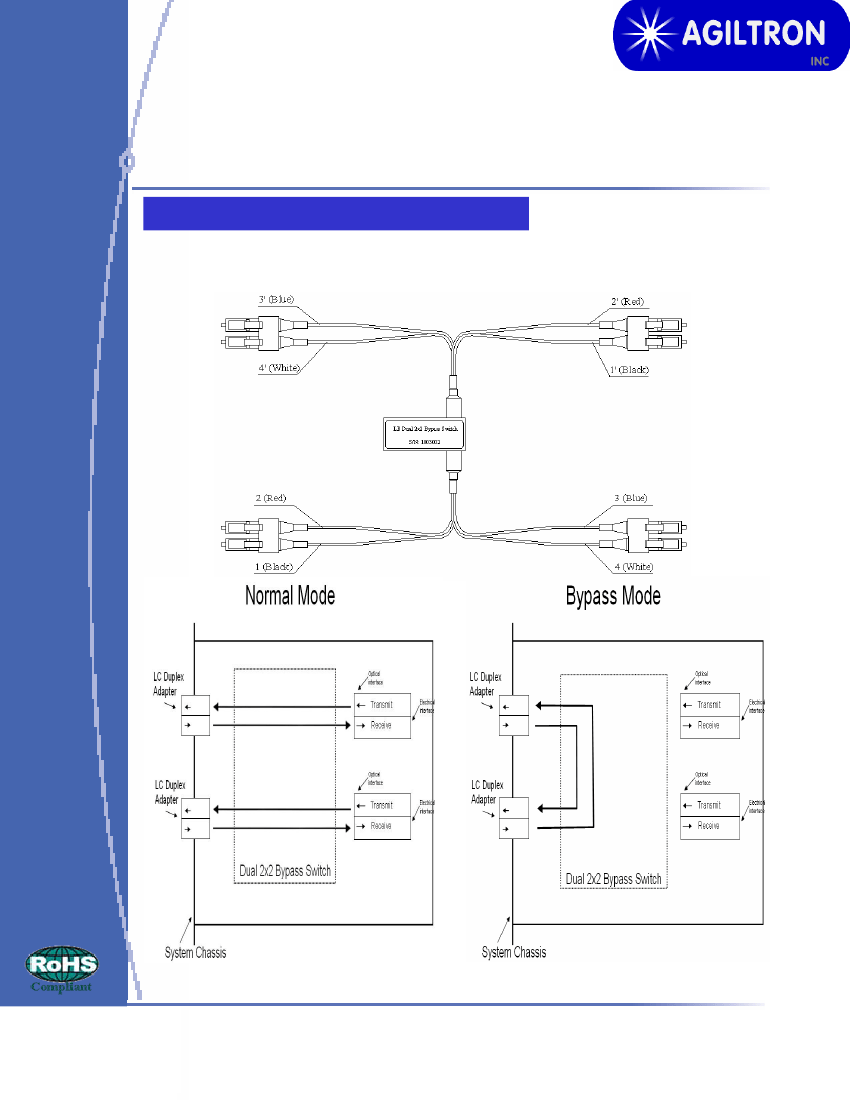

Applications
Protection
Instrumentation
5
30
20
Voltage Pulse Width
Latching / Non-Latching
0 ~ 70
300
-40 ~ 85
30.0L x 30.0W x 8.5H
500
mW
o
C
C
mm
Notes:
1
Within operating temperature and with light source CPR <14dB.
2
Excluding Connectors.
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
