RL-7700-1C
DESCRIPTION
• Standard Chip Inductor
RL-7700-2C, RL-7700-3C, RL-7700-4C
STANDARD CERAMIC WIREWOUND
CHIP INDUCTORS
Ceramic core wirewound construction
No batch-to-batch variations in inductance
High reliability due to ceramic wirewound construction
Widely used in the communication applications such as cellular
phones and other high frequency electronic devices
FEATURES & APPLICATIONS
•
•
•
•
ENVIRONMENTAL DATA
• Storage temperature range:
-55°C to +130°C
• Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 490
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

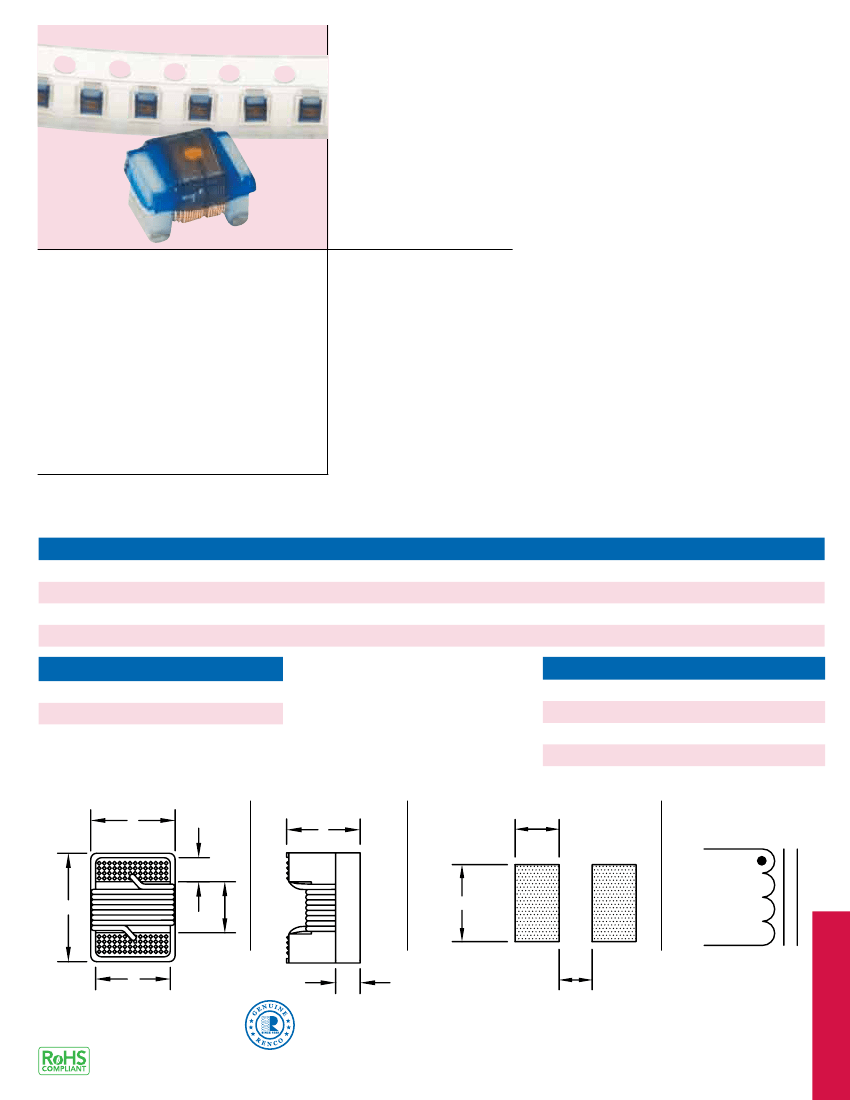

MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-7700-1C
RL-7700-2C
RL-7700-3C
RL-7700-4C
A (MAX.)
0.050 (1.27)
0.070 (1.80)
0.090 (2.29)
0.120 (2.92)
B (MAX.)
0.030 (0.76)
0.040 (1.12)
0.070 (1.73)
0.110 (2.79)
C (MAX.)
0.020 (0.61)
0.040 (1.02)
0.060 (1.52)
0.080 (2.03)
D (REF.)
0.010 (0.15)
0.014 (0.38)
0.020 (0.51)
0.030 (0.65)
E (MAX.)
0.020 (0.51)
0.030 (0.76)
0.050 (1.27)
0.080 (2.03)
F (MAX.)
0.009 (0.23)
0.012 (0.33)
0.017 (0.44)
0.020 (0.51)
G (MAX.)
0.022 (0.56)
0.030 (0.86)
0.040 (1.02)
0.060 (1.52)
PART NUMBER
RL-7700-1C, 2C
RL-7700-3C, 4C
PART WEIGHT
0.12g (0.004oz)
0.13g (0.005oz)
H (REF.)
0.030 (0.66)
0.040 (1.02)
0.070 (1.78)
0.100 (2.54)
I (REF.)
0.019 (0.50)
0.030 (0.64)
0.040 (1.02)
0.040 (1.02)
J (REF.)
0.018 (0.46)
0.030 (0.64)
0.030 (0.76)
0.050 (1.27)
BOTTOM VIEW
B
SIDE VIEW
C
RECOMMENDED LAND PATTERN
SCHEMATIC
J
ST
F
H
A
G
FN
E
D
