2687-2-36-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2687-2-36-1

2687-2-36-1: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2687-2-36-1 Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

2687-2-36-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.285 inch
subject depth	0.685 inch
body length	1.9 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2687
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36

Preview

Download Datasheet

View All

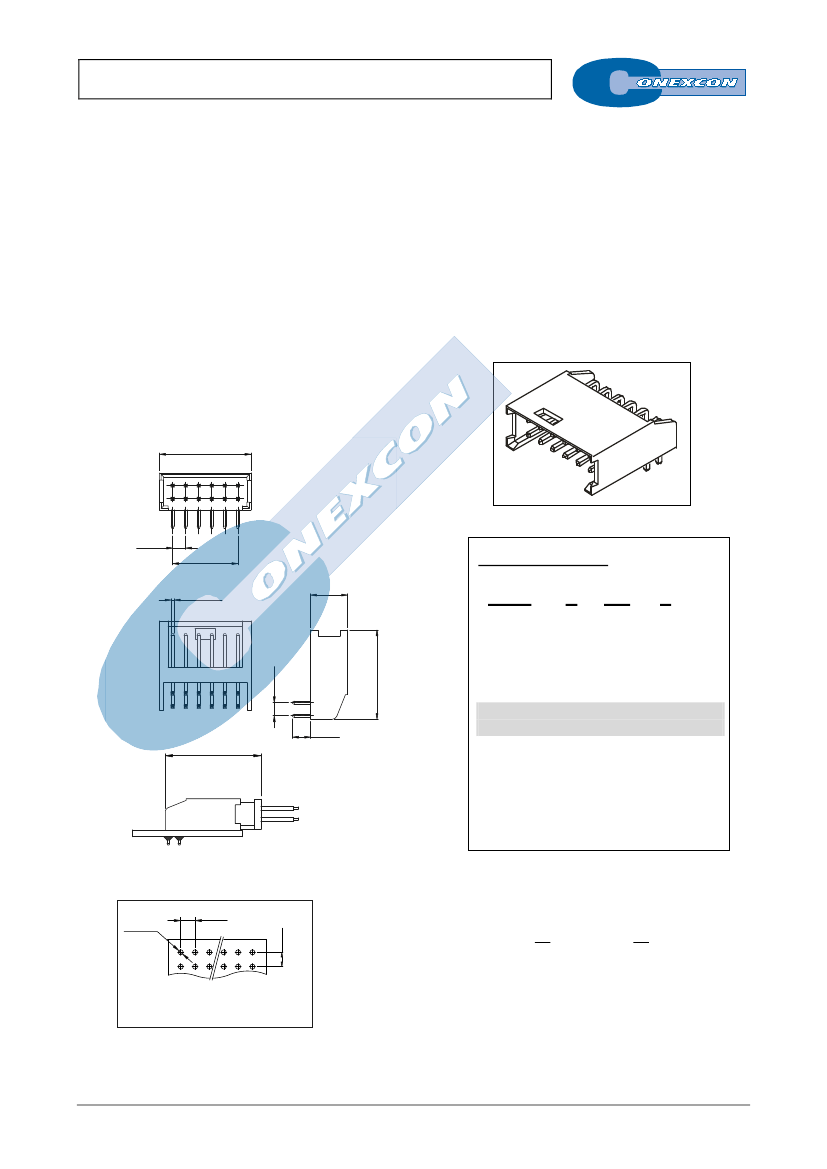

DUAL ROW SIDE ENTRY HEADER

2687 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 8, 10, 12, 16, 18, 24, 30 and 36 circuits

Mates with 2.54 mm crimp housing 2685 series

0,64 mm. square pin tin plated

Fully shrouded with positive lock



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PBT UL 94 V-0

Contact: Tin plated brass

Operating temperature: -25ºC to +85ºC

RoHS compliant



Pin retention force to insulator: > 1.00 Kgf



Durability: 25 cycles

Dimension Information

2.54

.100

Ordering Information:

7.25

.285

0.64

.025

2687 -

T-

XX-

17.4

2.54

.100

.685

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

22.12

.871

3.5

.138

Recommended Finish



T =

Gold flash over nickel



T =

15µ” gold over nickel



T =

30µ” gold over nickel

3. (XX) Number of circuits



Available in 8 through 36 circuits

Matting dimensions

ø1.0

±0.1

2.54

.100

2.54

.100

DIMENSIONS

2.54



ø .039





−













2.54



 +

2.54





(XX) = Number of circuits

RECOMMENDED HOLE PATTERN

Thickness: 1.0 ~ 1.6mm.

E-XX

FULL LINE CATALOGUE
