3880-2-11-1: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), 0.156 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

3880-2-11-1 Overview

Board Connector, 11 Contact(s), 1 Row(s), 0.156 inch Pitch, Crimp Terminal, Locking

3880-2-11-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.366 inch
subject depth	0.669 inch
body length	1.709 inch
Connector type	BOARD CONNECTOR
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3880
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	11

Preview

Download Datasheet

View All

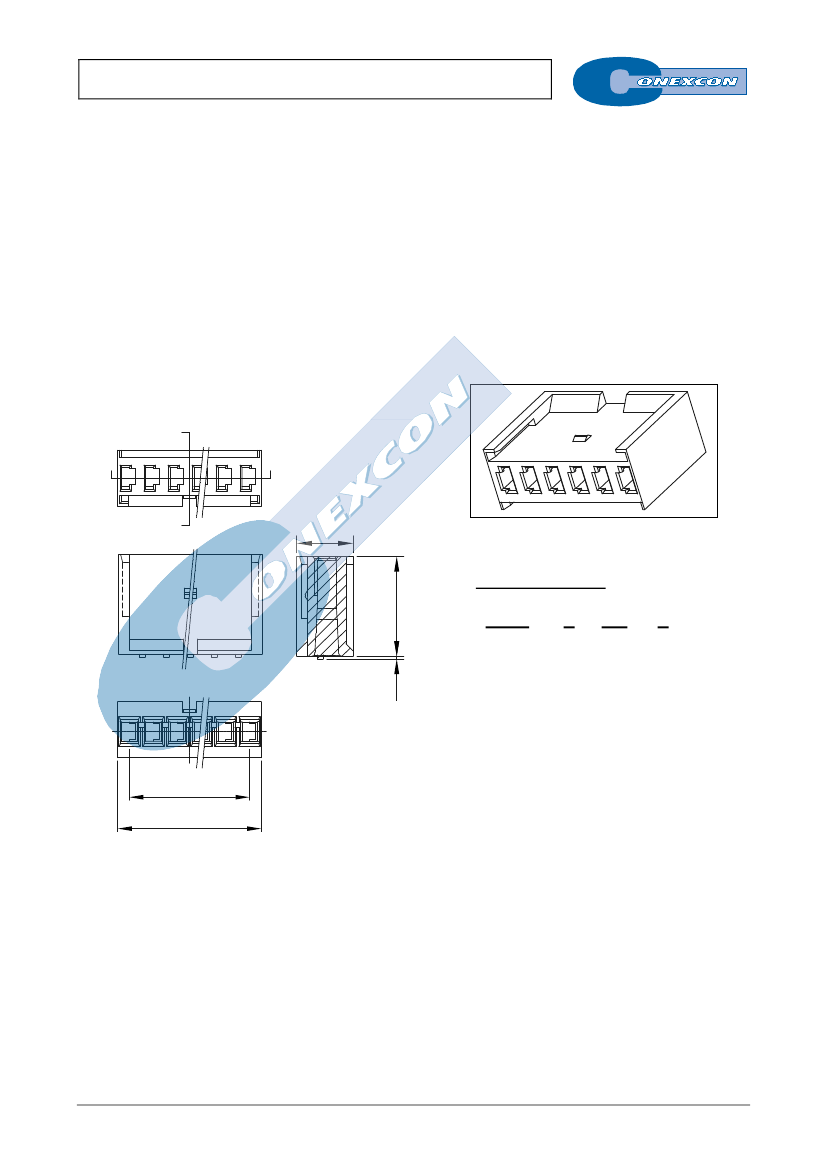

SINGLE ROW CRIMP CONNECTOR HOUSING

3880 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2, , 4, 6, 8, 10 and 12 circuits

Mates with 3.96 mm pitch pin headers 3882 and 3883

Polarised with locking ramp

Use crimp terminal 3881 series



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PBT UL 94 V-0



Operating temperature: -40ºC to +85ºC



RoHS compliant

Dimension Information



Durability: 25 cycles

9.3

Ordering Information:

16.5

3880 -

XX-

0.5

1. Connector Series

3. (XX) Number of circuits



Available in 2 through 12 circuits

Dimensions:

(In mm.)

= 3.96 x (XX*-1)

= 3.96 x (XX)-0.14

* XX

(Number of circuits)

E-XX
