5087-2-16-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5087-2-16-5

5087-2-16-5: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5087-2-16-5 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal

5087-2-16-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.236 inch
subject depth	0.126 inch
body length	3.2 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5087
Plug contact pitch	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

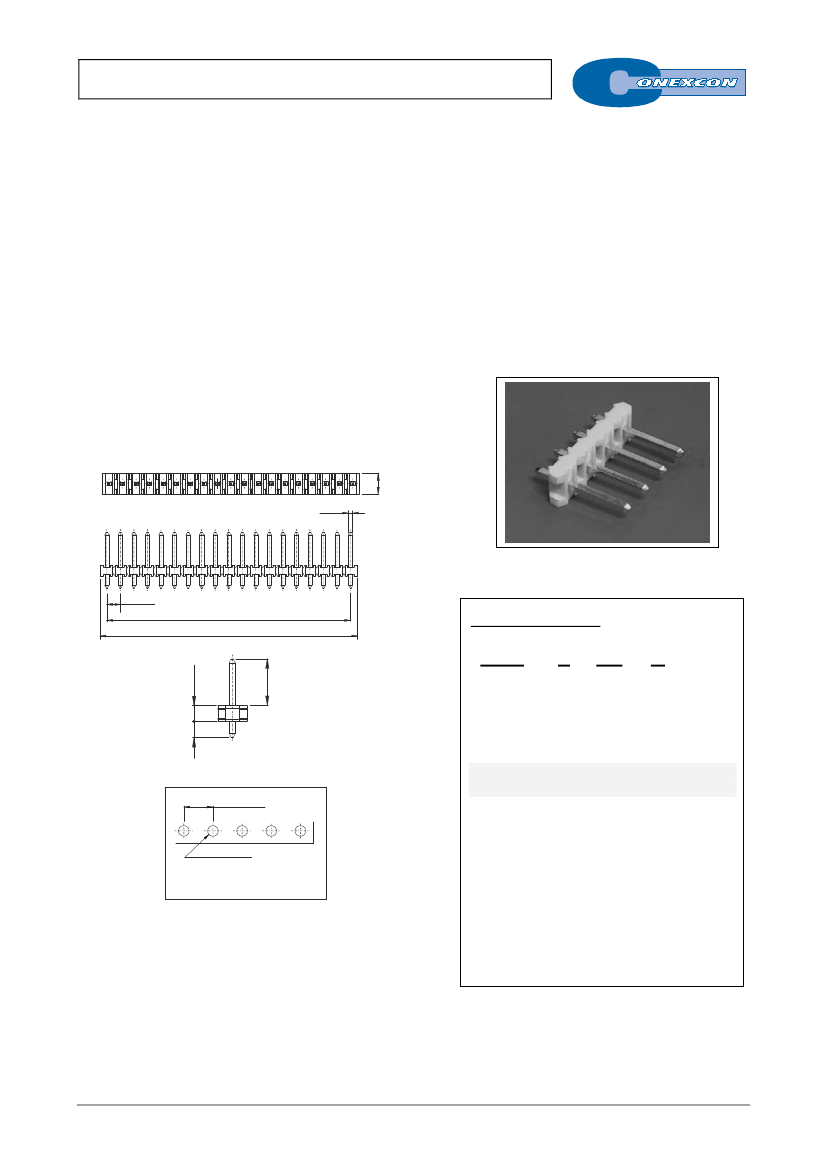

SINGLE ROW VERTICAL PIN HEADER

5087 SERIES.

5.08 mm (0.200”) pitch.

General Features

Electrical Features



Available in 2 through 20 circuits



Mates with Pcb sockets 5.08 mm pitch 1507, 1508, 1509,

5069, 5070 series and wire housing 5080 and 5081 series



1.14 mm. square pin with different pin length



With standoff to minimise flux retention



Contact sales Office

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Glass filled Polyester UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +85ºC

RoHS compliant



Pin retention force to insulator: > 0,50 Kgf



Durability: 25 cycles

Dimensional Information

1.14

.045

5.08

.200

.236

6.0

Ordering Information:

5087 -

3.2

.126

T-

XX-

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

5.08±0.05

.200±.002

Recommended Finish

3. (XX) Number of circuits



Available in 2 through 20 circuits

1.80±0.10

.071±004

RECOMMENDED HOLE PATTERN

5. (C) Pin Dimensions



C =

Dim.

= 10.25 mm. ;

=3.50 mm

C =

Dim.

= 16.16 mm. ;

=3.50 mm

C =

Dim.

= 23.20 mm. ;

=3.50 mm

C =

Dim.

= 15.60 mm. ;

=5.00 mm

C =

Dim.

= 6.50 mm. ;

=3.50 mm

Dimensions:

(In mm.)

= 5.08 x (XX*-1)

= 5.08 x (XX*)

* XX

(Number of circuits)

E-XX
