NJU7306D datasheet, PDF - EEWORLD Datasheet

NJU7306D: DescriptionEqualizer Circuit, CMOS, PDIP40; CategoryAnalog mixed-signal IC Consumption circuit; File Size201KB，3 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

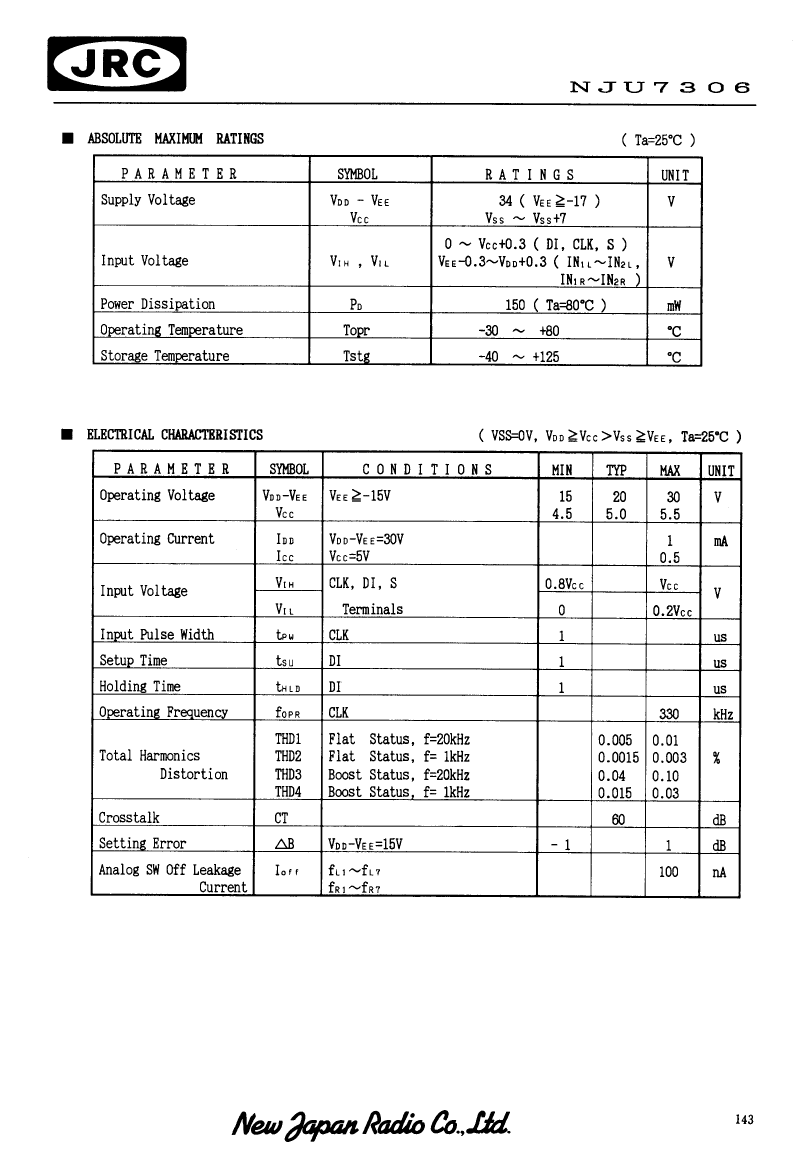

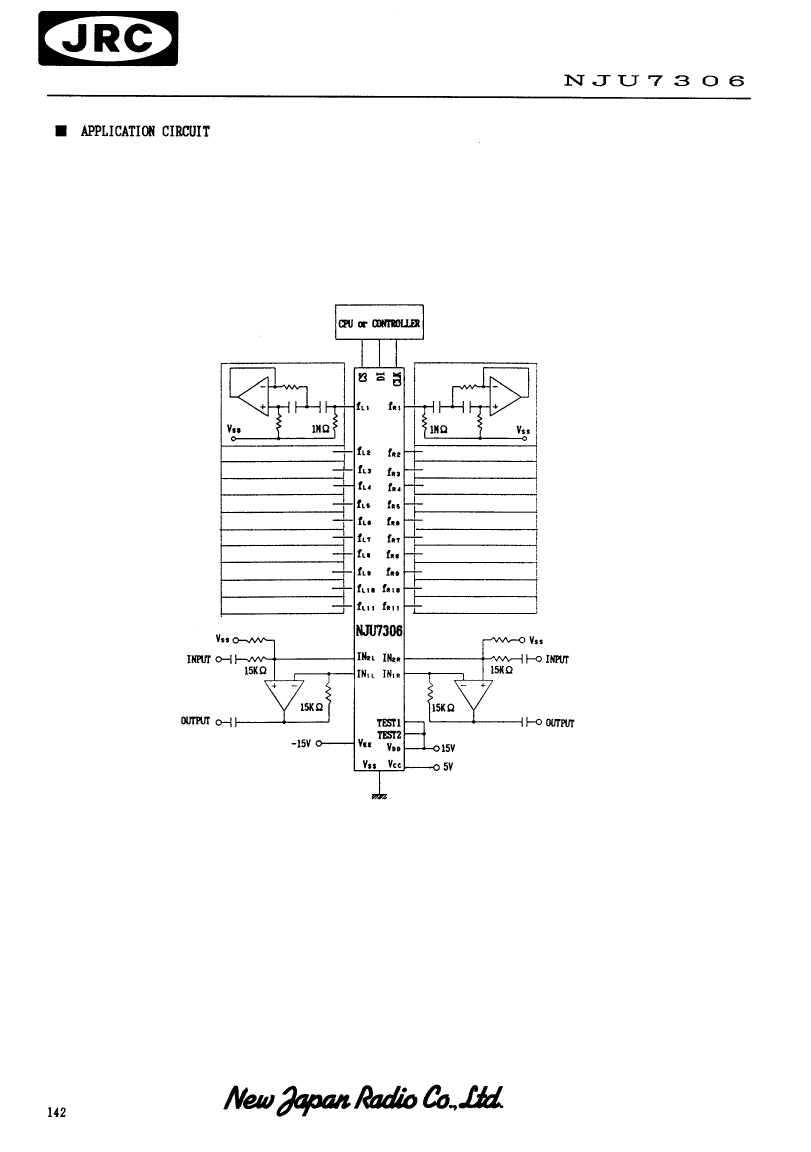

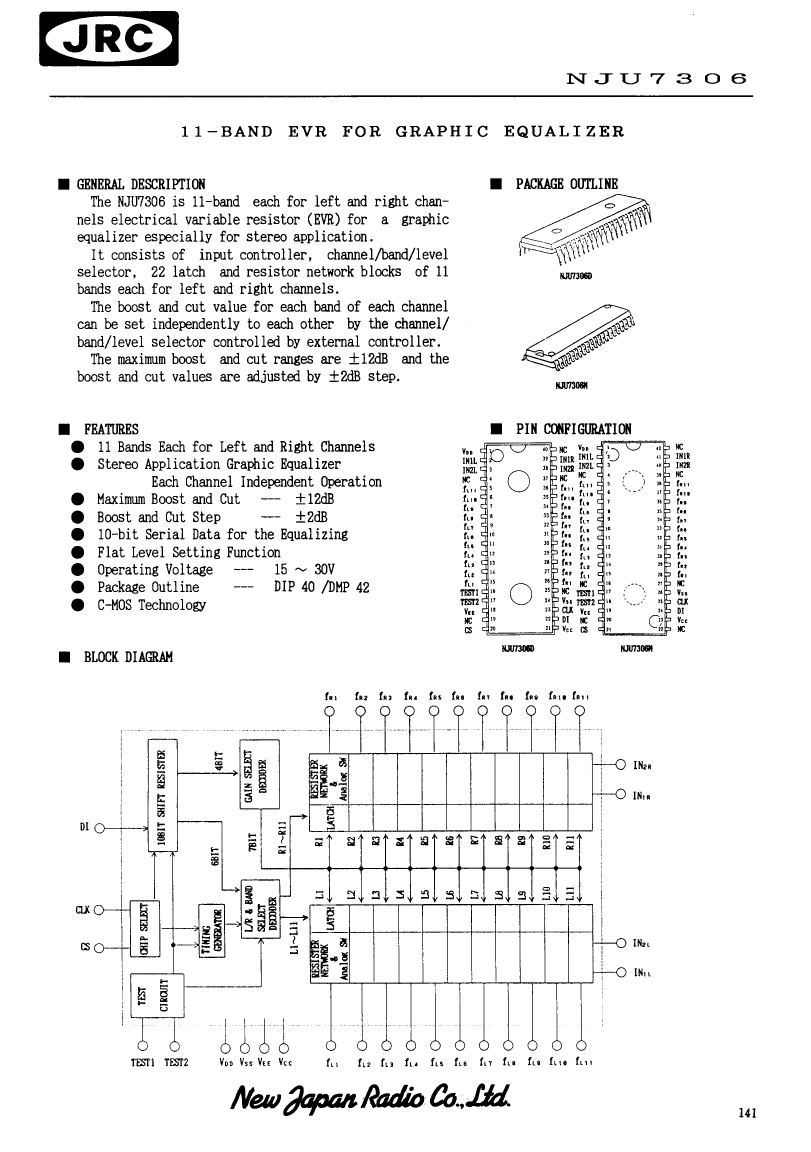

NJU7306D Overview

Equalizer Circuit, CMOS, PDIP40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	New Japan Radio Co., Ltd..
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
Commercial integrated circuit types	EQUALIZER CIRCUIT
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Humidity sensitivity level	2
Number of terminals	40
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-7.5/+-15 V
Certification status	Not Qualified
Maximum slew rate	1 mA
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	NJU7306D	NJU7306M
Description	Equalizer Circuit, CMOS, PDIP40	Equalizer Circuit, CMOS, PDSO42
Is it Rohs certified?	incompatible	incompatible
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
package instruction	DIP, DIP40,.6	SOP, SOP42,.5
Reach Compliance Code	unknown	unknown
Commercial integrated circuit types	EQUALIZER CIRCUIT	EQUALIZER CIRCUIT
JESD-30 code	R-PDIP-T40	R-PDSO-G42
JESD-609 code	e0	e0
Humidity sensitivity level	2	2
Number of terminals	40	42
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP40,.6	SOP42,.5
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	5,+-7.5/+-15 V	5,+-7.5/+-15 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	1 mA	1 mA
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
