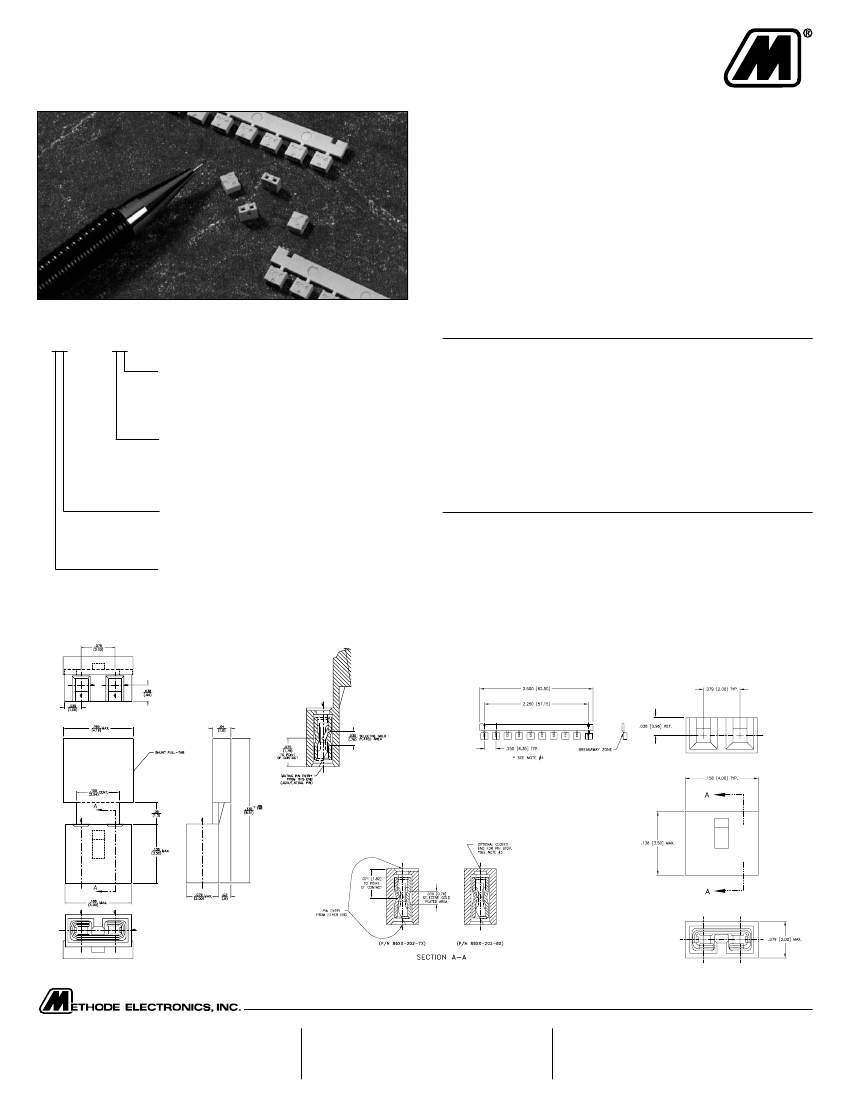

2mm (.079")
Insulated Programmable Shunt
The Methode 2mm shunt is an economical solution for
jumpering circuit paris of 0.51 mm (.020”) square or round
posts on 2 mm (.079”) centers. This ideal product for
bussing, programming and switch replacement provides
superior reliability after repeated
PART NUMBER CODING
86XX - 202 - XX
PACKAGING
0 = LOOSE PARTS
1 = STRIPS OF 10
2 = WITH REMOVABLE PULL TABS
3 = WITH “NON-REMOVABLE” PULL TABS
CONTACT TYPE
3 = OPEN END/LOW FORCE
4 = CLOSED END/LOW FORCE
7 = OPEN END/HIGH FORCE
8 = CLOSED END/HIGH FORCE
CONTACT FINISH
0 = TIN
8 = .000030 SELECTIVE GOLD
F = .000015 SELECTIVE GOLD
INSULATOR COLOR
0 = WHITE
1 = BLACK
Features
■
■
■
■
■
■
■
■
Open end is mateable from either end
Packaged loose or in strips of 10
Various contact platings
Insulator color options
UL 94V-0 rated material
Low retention force
High retention force
Two point contact

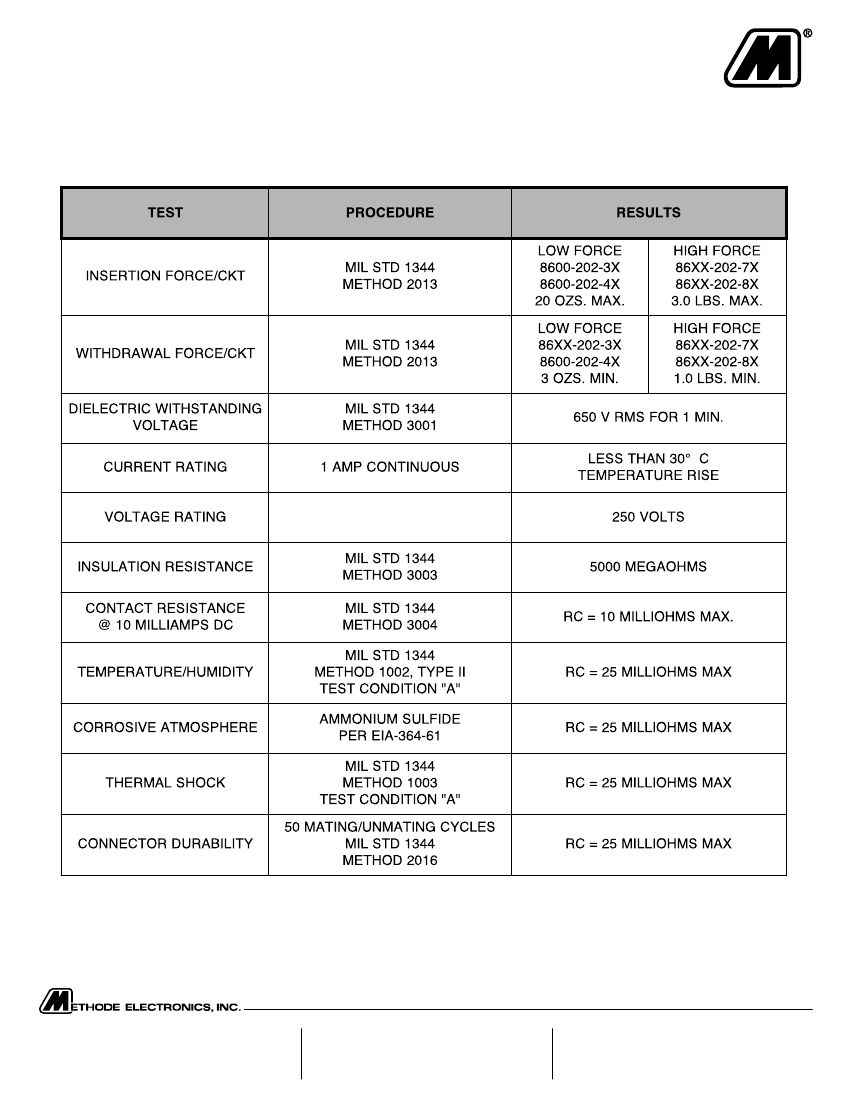

Specifications
Current Rating:
1 Amp
Voltage Rating:
250 VAC
Contact Resistance:
10 Milliohms max.
Insulation Force:
500 megohms
Insertion Force:
20 oz. max. (low force)
3.0 lbs. max. (high force)
Withdrawal Force:
3 oz. min. (low force)
1.0 lb. min. (high force)
PACKAGING OPTION 1
CONTACT TYPES 3 & 7
CONTACT TYPES 4 & 8
PACKAGING OPTION 2 & 3
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
Specifications
2mm (.079) Center Shunt, 2 Position
(Low / High Insertion Force)
Part No. 86XX-202-XX
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

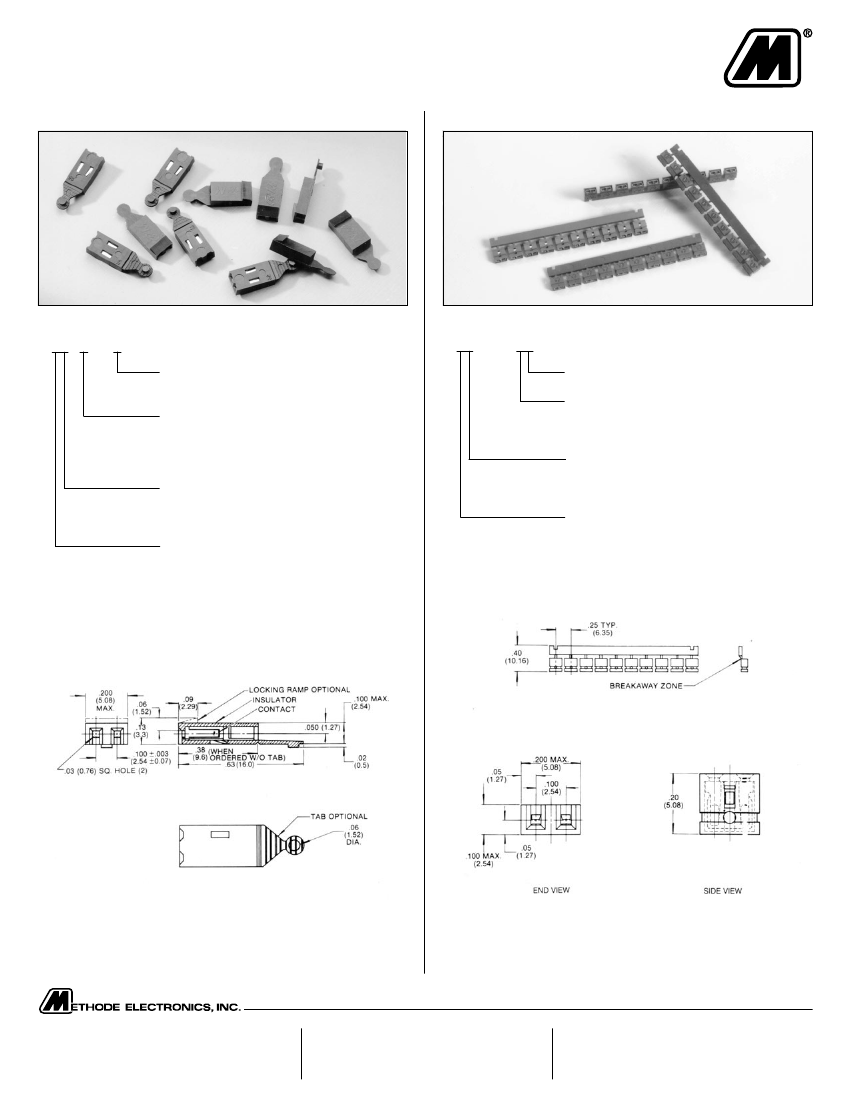

.100" (2.54mm)
Insulated Programmable Shunt
High Profile
Low Profile
PART NUMBER CODING
PART NUMBER CODING
96XX - X02 - X0
PINSTOP OPTIONS
5 = W/O PINSTOP
6 = W/ PINSTOP
RAMP/TAB OPTIONS
3 = W/O RAMP, W/TAB
4 = W/O RAMP, W/O TAB
5 = W/RAMP, W/O TAB
6 = W/RAMP, W/TAB
CONTACT FINISH
0 = TIN
8 = .000030 SELECTIVE GOLD
F = .000015 SELECTIVE GOLD
INSULATOR COLOR
0 = WHITE
1 = BLACK
NOTE: ADDITIONAL COLOR OPTIONS - CONSULT FACTORY
96XX - 202 - XX
0 = LOOSE PARTS
1 = STRIPS OF 10
CONTACT TYPE
3 = LOW FORCE W/O PIN STOP
7 = HIGH FORCE W/O PIN STOP
8 = HIGH FORCE W/PIN STOP
CONTACT FINISH
0 = TIN
8 = .000030 SELECTIVE GOLD
F = .000015 SELECTIVE GOLD
INSULATOR COLOR
0 = WHITE
1 = BLACK
NOTE: ADDITIONAL COLOR OPTIONS - CONSULT FACTORY
STRIPS OF 10 OPTION
PRODUCT IS AVAILABLE WITH BOTH STANDARD AND HIGH
RETENTION FORCE CONTACTS.
96XX-202-7X PRODUCT IS MATEABLE FROM EITHER END.
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

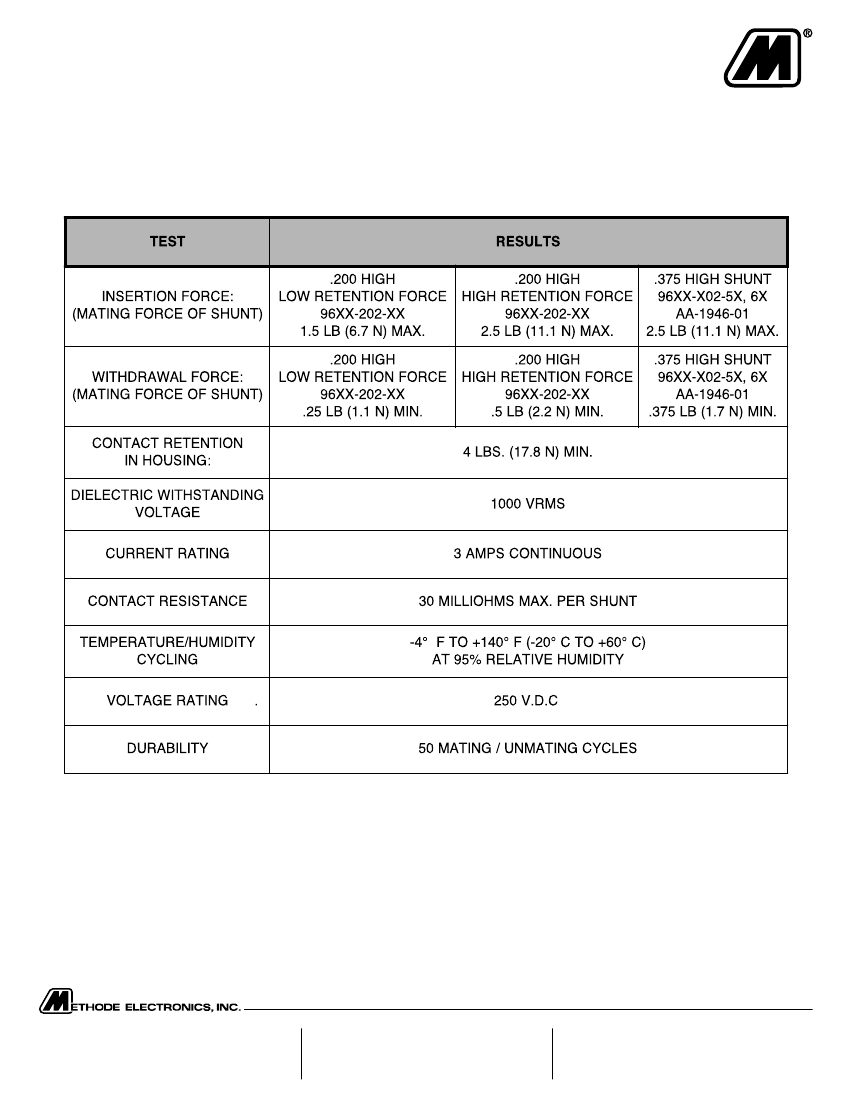

Specifications
.100” Center Shunt, 2 Postion
(.200” Height and .375” Height)
(Low and High Retention Force)
Part No. 9600-202-XX
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

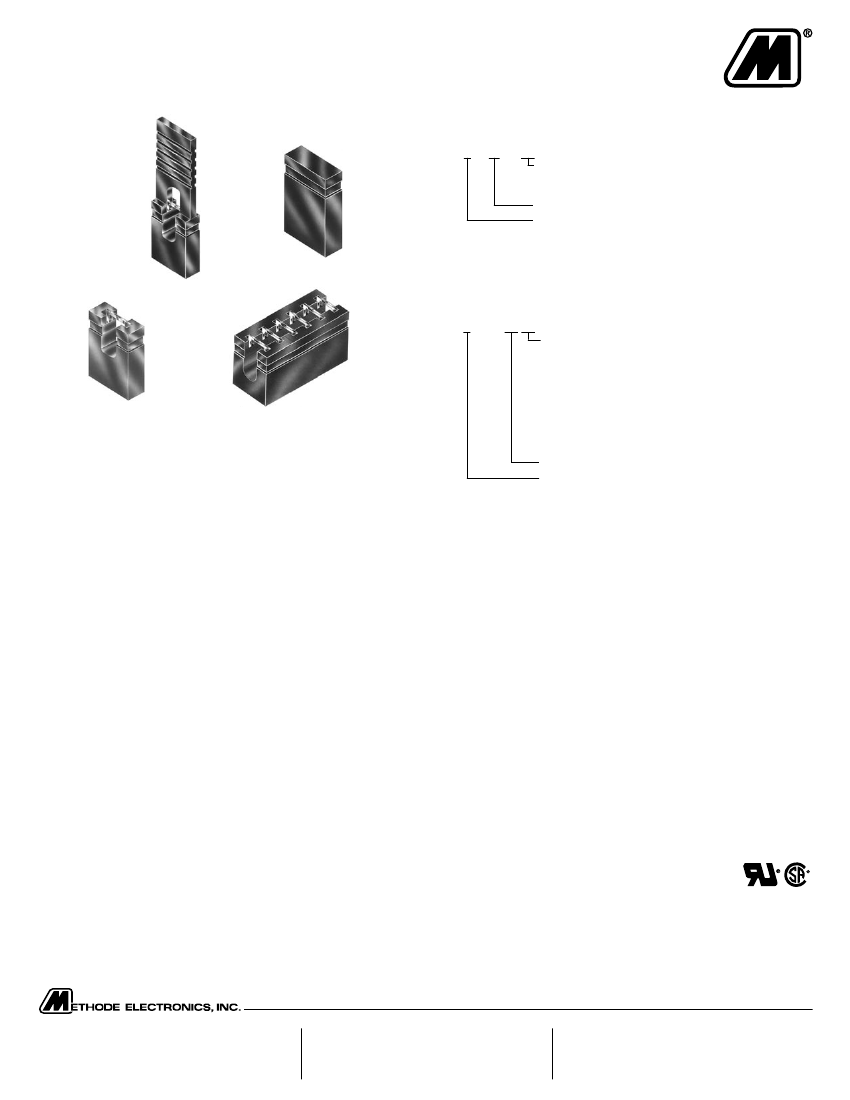

Mini Shunts .079" (2.00) Centerline - M64 Series
.100" (2.54) Centerline - M65 Series
.079" (.200) Centerline
PART NUMBER LEGEND
M64X-R202-02-XX
BODY STYLE
01 = Open top, .177"
02 = Open top, .138"
SHUNT
PLATING
S = 5 µin overall Gold, nominal
0 = Tin
.100" (2.54) Centerline
PART NUMBER LEGEND
M65X-R202-02-XX
BODY STYLE
01 = Closed top, .256"
02 = Open top, .236"
03 = Open top, .177"
04 = Closed top, .336"
05 = Open top, .318"
06 = Handle-top, .236"
07 = Ganged, block type (see page 131 to specify # of positions)
08 = 10 piece strip
SHUNT
PLATING
S
0
= 5 µin overall Gold, nominal
= Tin
SPECIFICATIONS:
Material:
Insulator: Polybutylene Terephthalate (PBT), glass reinforced
thermoplastic, rated UL 94V-0, Black Color
Contacts: Phosphor Bronze
Plating:
S = 5 µin gold nom. (optional 30 µin) to MIL-G-45204, Type II,
Grade C on contact area over 50 µin nickel underplate to
QQ-N-290, Class 2, Grade C, gold flash on balance
0 = 100 µin bright tin plate to MIL-T-10727, Type 1 with 100 µin
copper underplate to MIL-C-14550
Electrical:
Operation voltage: 250 VAC max
Current rating: 3 Amps max
Contact resistance: 20 mΩ max
Insulation resistance: 5000 MΩ min @ 1000 VDC between
adjacent contacts (75°F and 50% R.H.)
Dielectric withstanding voltage: 1000 VAC min RMS (sea level)
Capacitance: 1 pF max between adjacent contacts
Mechanical:
Insertion force: 15 oz. avg. per station when mated with .025"
sq. pin
Withdrawal force: 13 oz. avg. per station when mated with .025"
sq. pin
Contact retention in body: 1 lb. min
Mating durability: 200 cycles min
Lead size range: .022" sq. to .028" sq.
Environmental:
Operating temperature: -65°C to +125°C
OPTIONS:
Add to end of part number
HT
= Hi-Temp insulator for IR reflow or Vapor Phase
soldering processes
(STANDARD INSULATOR COLOR IS BLACK)
R
= Red *
B
= Blue *
W
= White *
Y
= Yellow *
G
= Green *
* Minimum order required
MATING OPTIONS:
Headers (2mm): M64X-HXXX-XX-XX
Headers (.100"): M65X-HXXX-XX-XX
PACKAGING:
Plastic anti-static bags available
APPROVALS AND CERTIFICATIONS:
Select parts recognized under the component program
of Underwriters Laboratories, Inc. No. E167232
Certified by Canadian Standards Association No. LR75112
