TS135 datasheet, PDF - EEWORLD Datasheet

TS135: DescriptionTS135 thur TS1235 THYRISTORS; CategoryAnalog mixed-signal IC Trigger device; File Size162KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

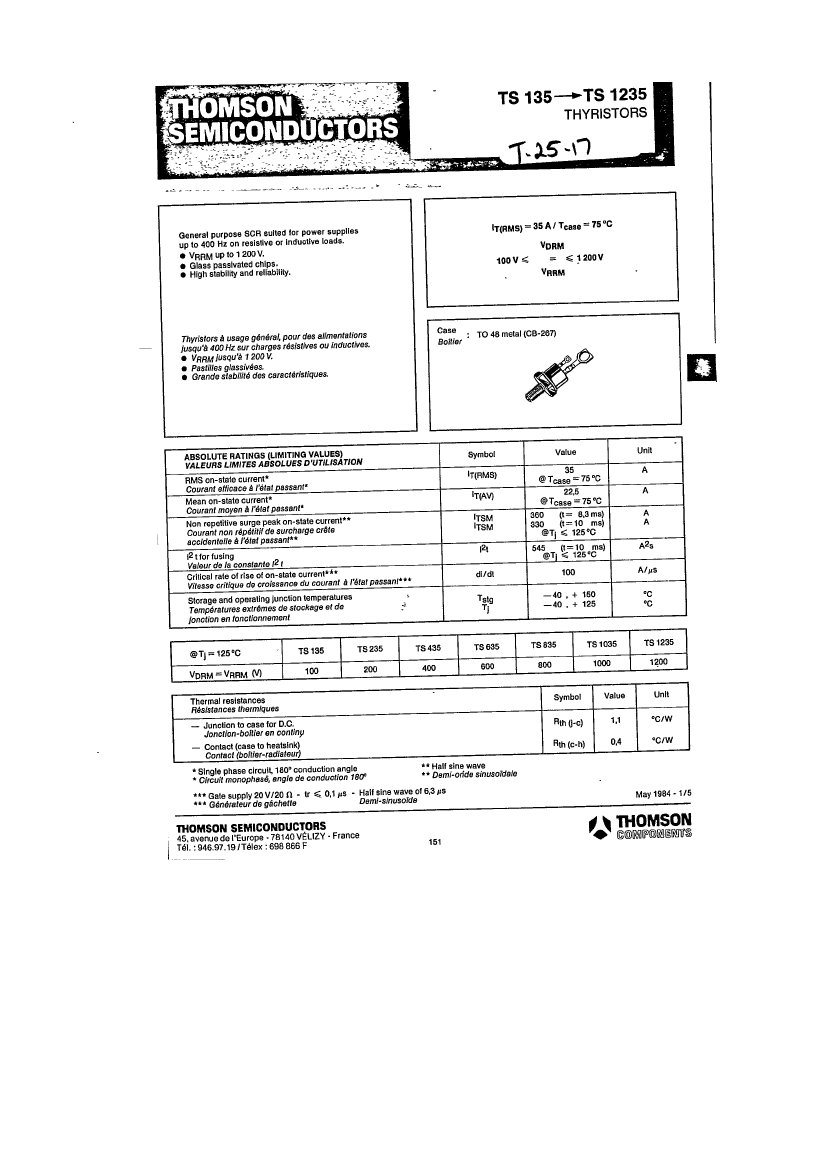

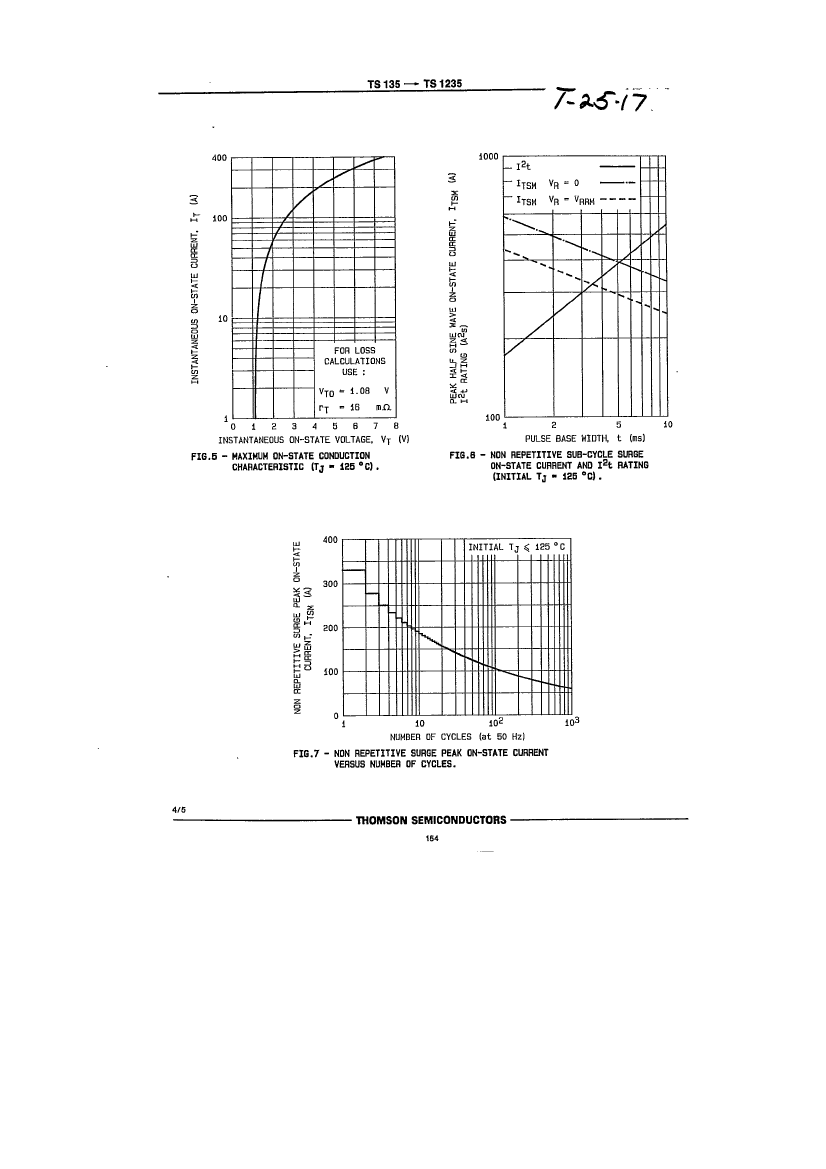

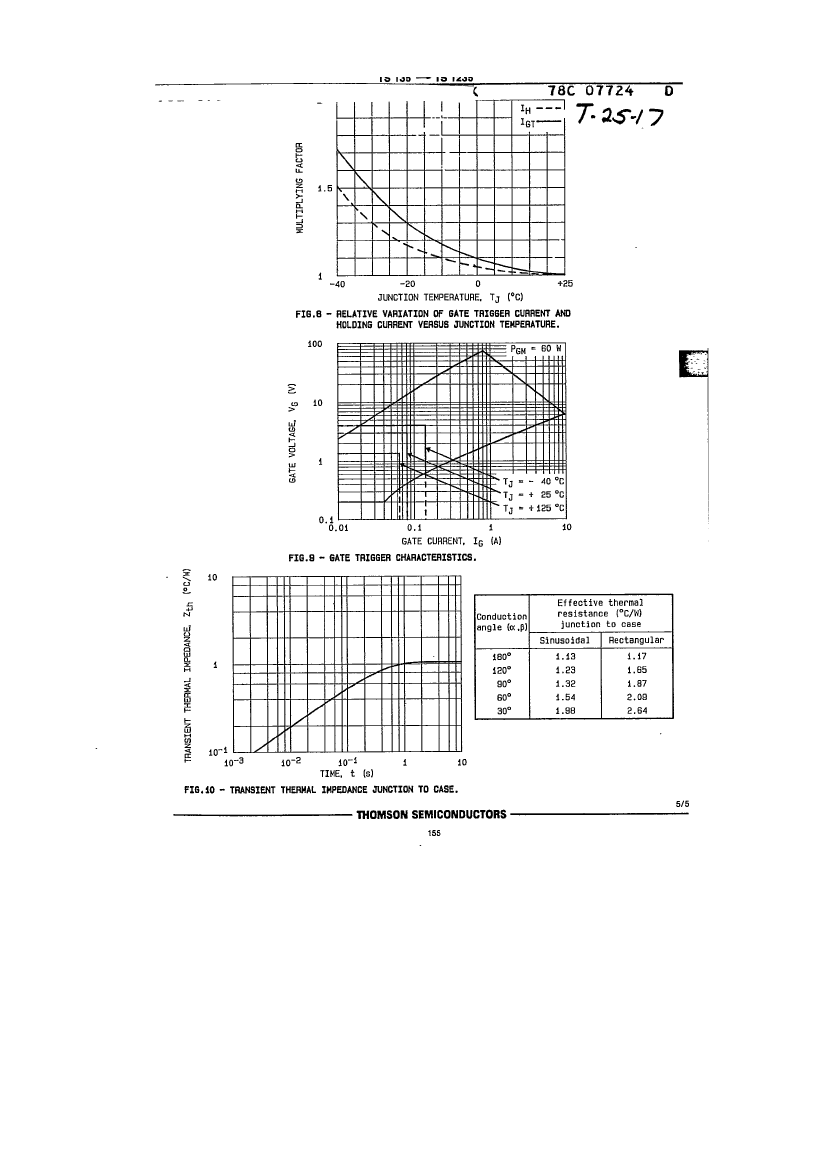

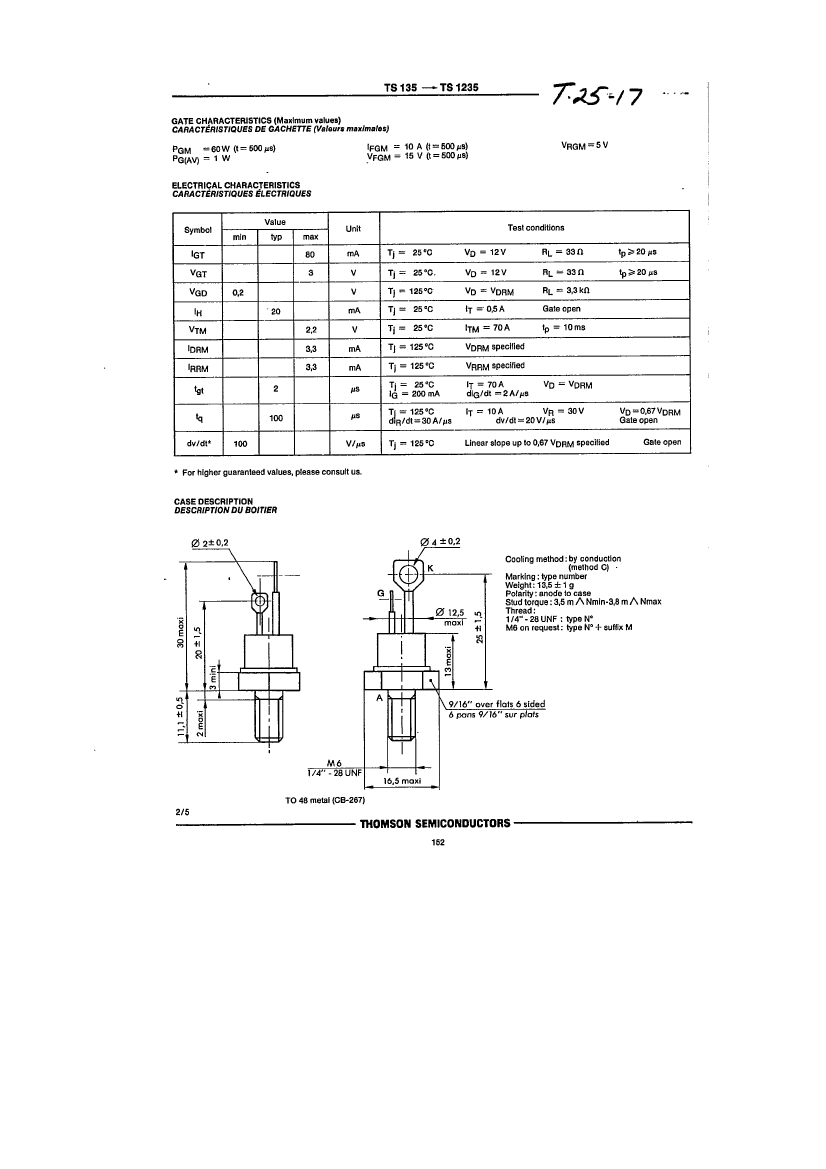

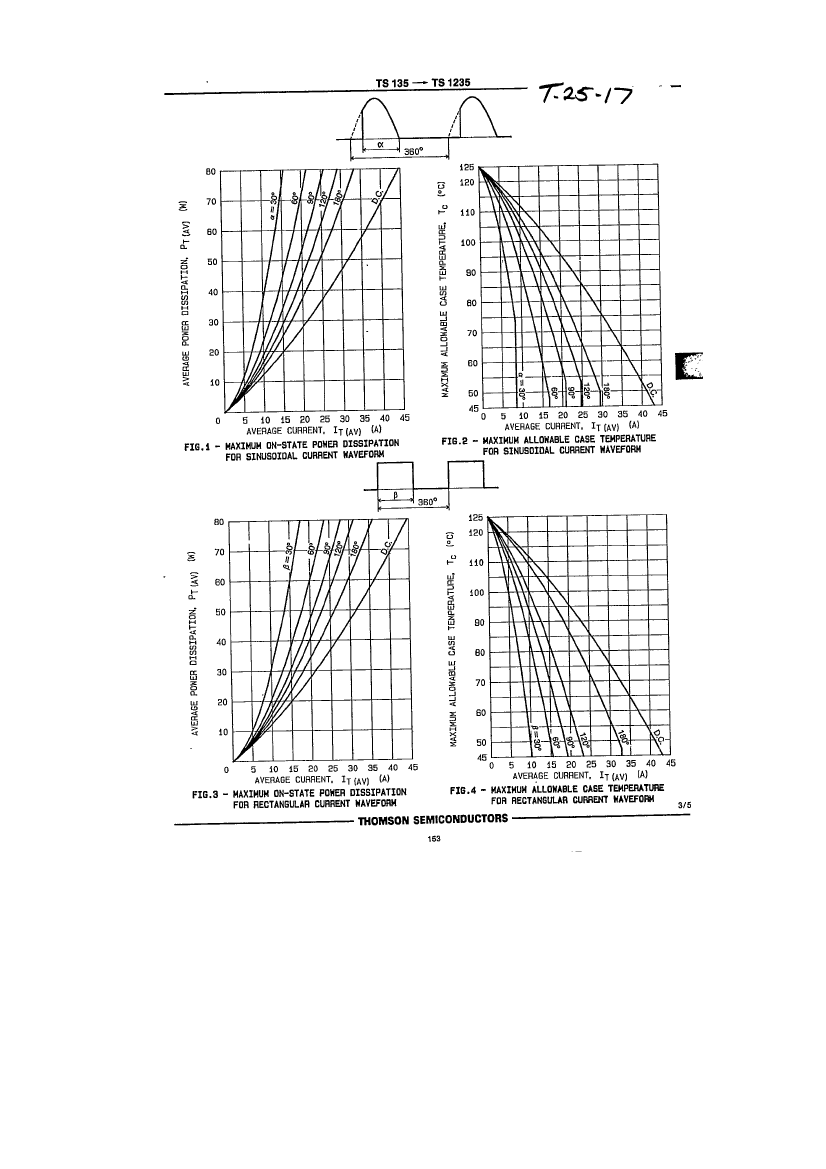

TS135 Overview

TS135 thur TS1235 THYRISTORS

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Nominal circuit commutation break time	100 µs
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	6 mA
On-state non-repetitive peak current	250 A
Maximum on-state current	35000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	100 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	TS135	TS435	TS835	CMD383UBC-H2	TS1235	CNX481GTP24
Description	TS135 thur TS1235 THYRISTORS	TS135 thur TS1235 THYRISTORS	TS135 thur TS1235 THYRISTORS	Blue LED Lamps	TS135 thur TS1235 THYRISTORS	Ruggedized LED Panel Mount Indicator
Reach Compliance Code	compli	compli	compli	-	compli	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-
Nominal circuit commutation break time	100 µs	100 µs	100 µs	-	100 µs	-
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	50 V/us	-	50 V/us	-
Maximum DC gate trigger current	80 mA	80 mA	80 mA	-	80 mA	-
Maximum DC gate trigger voltage	3 V	3 V	3 V	-	3 V	-
Maximum leakage current	6 mA	6 mA	6 mA	-	6 mA	-
On-state non-repetitive peak current	250 A	250 A	250 A	-	250 A	-
Maximum on-state current	35000 A	35000 A	35000 A	-	35000 A	-
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-
Off-state repetitive peak voltage	100 V	400 V	800 V	-	1200 V	-
surface mount	NO	NO	NO	-	NO	-
Trigger device type	SCR	SCR	SCR	-	SCR	-
