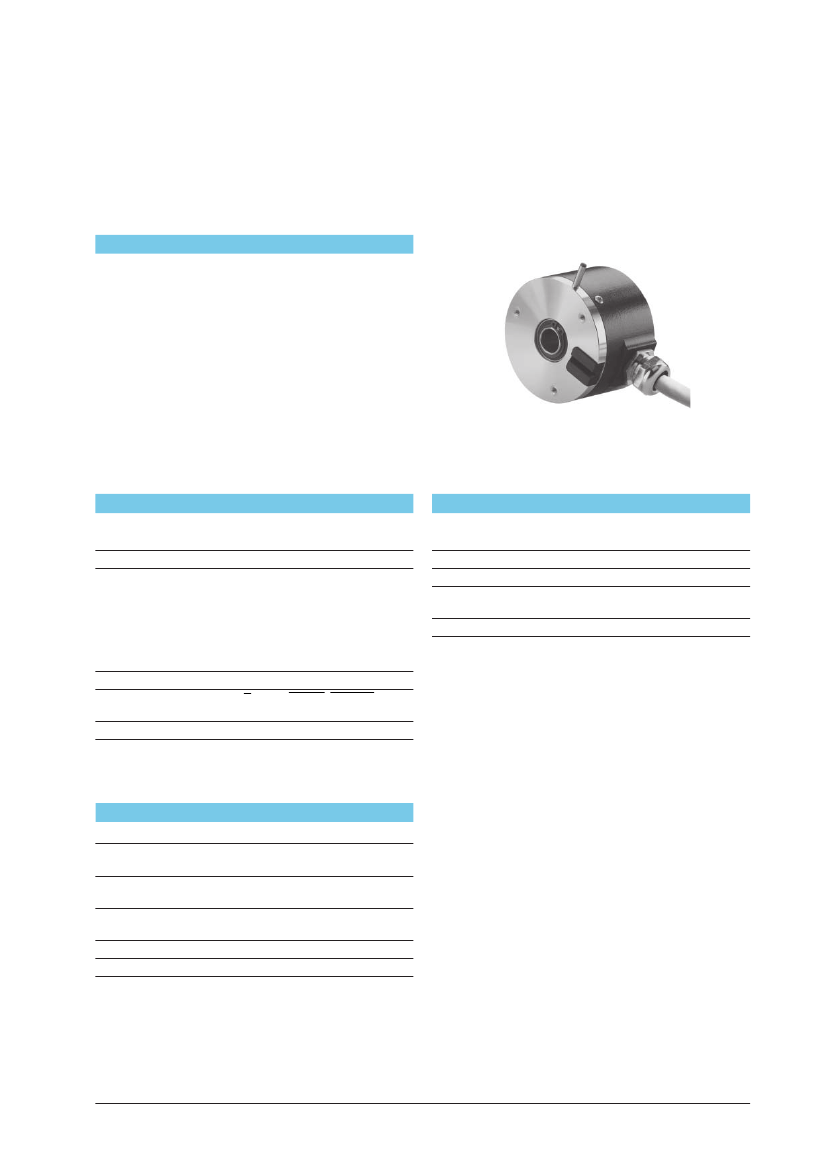

Programmable absolute multi-turn hollow shaft encoders
BMG
parallel
features
• multi-turn encoders up to
- 12 bit single-turn
- 12 bit multi-turn
• parallel interface
• Gray, BCD and binary code
• self-testing
• hollow shaft ø 12...50,8 mm
• programmable
general data
voltage supply
supply current
max. resolution
single-turn
10 - 30 VDC
with reverse polarity protection
50 mA (at 24 VDC)
12 bit (1 step = 5' 16") resolution
from 1 to 4'096 steps/rev as
desired
12 bit (4'096 revolutions)
from 1 to 4'096 rev. in two
exponential steps
±1/2 step
F/R input, STORE/ENABLE,
zero setting
mechanical data
max. revolutions
moment of interia
max. protection class
material
weight
mech. 6'000 rpm
electr. 6'000 rpm
2 x 10
-6
kgm
2
IP 54
housing: steel
flange: aluminum
approx. 700 g
multi-turn
max. error limit
input signal
max. switching frequency 400 kHz
ambient conditions
temperature range
relative humidity
vibration
shock
noise immunity
emitted interference
-20...+85 °C
max. 95%
non condensing
DIN EN 60068-2-6
(≤ 100 m/s
2
/ 16 - 2'000 Hz)
DIN EN 60068-2-27
(≤ 2'000 m/s
2
/ 6 ms)
DIN EN 61000-6-2
DIN EN 61000-6-4
3. 36
www.baumerelectric.com
Programmable absolute multi-turn hollow shaft encoders
BMG
parallel
assignment
pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
cable color
white
brown
green
yellow
grey
pink
black
violet
grey/pink
red/blue
white/green
brown/green
white/yellow
yellow/brown
white/gray
grey/brown
white/pink
pink/brown
white/black
brown/black
grey/green
yellow/grey
pink/green
yellow/pink
assignment
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
—
—
ZERO
ENABLE
STORE
UP/DOWN
—
—
—
TxD
RxD
+Vs
GND
signals parallel interface
1 - 24
D0 - D23
Data lines D0 to D23.
24 parallel output signals. For each data line,
we recommend pull-down resistors for PNP
and pull-up resistors for NPN, both with
4.7 kOhms. D19 - D23 for low resolutions
these outputs can be assigned for special
outputs.
Zero setting input for setting a zero at any
point within the programmed encoder
resolution. The zero setting process is
triggered by a HIGH pulse and should take
place after direction of rotation selection
(F/R). For maximum interference immunity
after zero setting, connect to GND. Pulse
duration
≥
100 ms.
If this input is at LOW level, the output
drivers will be activated. On application of
HIGH potential (or unconnected), the output
drivers assume a HIGH-resistance state.
By applying a LOW level, the data of the
absolute encoder will be buffered. If this
input is connected to HIGH potential or
remains open, the current position data
of the absolute encoder will be switched
through to the output drivers. For reliable
readout of the data, this line must be used
in the case of binary code.
F/R counting direction input. When not
connected, this input is on HIGH. F/R-HIGH
means increasing output data with a clock-
wise hollow shaft rotating direction when
looking at the flange.
F/R-LOW means increasing values with
a counter-clockwise hollow shaft rotating
direction when looking at the flange.
34 TxD
35 RxD
Data send line of the RS-232 interface for
encoder programming.
Data receive line of the RS-232 interface for
encoder programming.
Voltage supply
Ground connection of the encoder.
27 ZERO
28 ENABLE
29 STORE
yellow/blue
brown/blue
brown/red
green/blue
30 F/R
white/blue
white/red
red
blue
Recommendation: Please use leads twisted in pairs for
extension cord.
36 +V
S
37 GND
3. 38
www.baumerelectric.com
BMG
parallel
inputs
HIGH level
LOW level
wiring diagram:
> 0,7 +Vs
< 0,3 +Vs
Inputs with 10 kΩ against +Vs;
except zero setting with 10 kΩ
against GND.
order designation BMG
BMG 1P.24
4096 – GA – K
shaft
shaft 14 mm, IP 54
output signals
N
NPN (short circuit protection), OC
P
PNP (short circuit protection), OC
outputs
HIGH (PNP) level
LOW (NPN) level
HIGH load (PNP)
LOW load (NPN)
Tristate
> +Vs -4,5 V
< 3,5 V
< -20 mA
< 20 mA
< 200 µA
(at I = -15 mA)
(at I = 15 mA)
All outputs with short-circuit protection PNP or NPN
OC output levels.
3
preconditions for programming
- PC with RS 232 interface and Windows operating system
- programming software ProGeber, manual
- programming cable connection, connecting the absolute
encoder with the PC
If necessary order separately under accessories.
description of diagnosis and special functions
When turned on, the encoder will carry out a self-testing.
The following is monitored during operation:
- check of the code steadiness
- whether admissible signal frequency is exceeded
- LED failure, aging
- whether receiver has failed
- code disc, broken glass
- supply voltage of electronically controlled gearbox
Special functions:
- two preselections „limit switch function“
- speed monitoring can be programmed
- status of diagnosis and mode
accessories
programming software
cable and manual
part nr. 117665
www.baumerelectric.com
3. 39
