BPMV58S1P24P13/16C6D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BPMV58S1P24P13/16C6D

Preview

BPMV58S1P24P13/16C6D: DescriptionLinear Position Encoder, Single; CategoryLED optoelectronic/LED photoelectric; File Size73KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

BPMV58S1P24P13/16C6D Overview

Linear Position Encoder, Single

BPMV58S1P24P13/16C6D Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Configuration	SINGLE
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	LINEAR POSITION ENCODER

Preview

Download Datasheet

View All

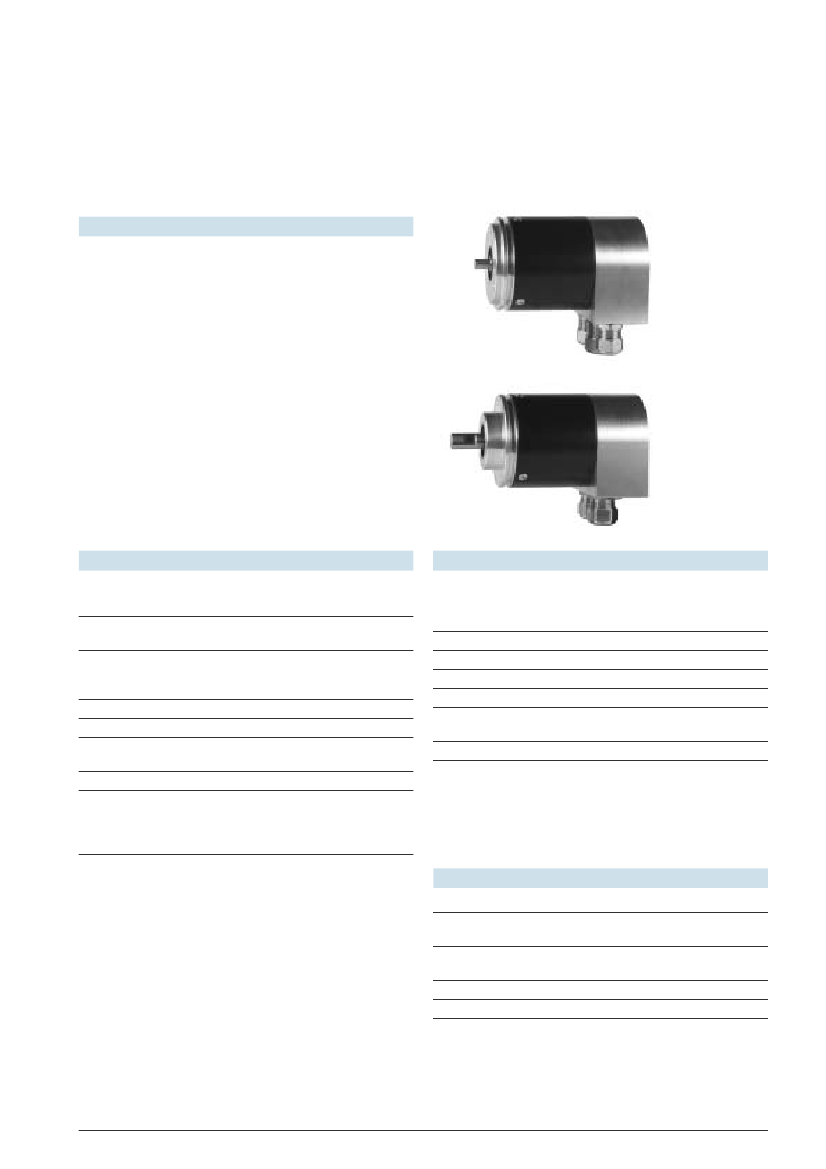

Absolute Multiturn Shaft Encoder

BPMV Flexible –

ProCoder

Profibus-DP CANopen, DeviceNet

,

features

• 29 Bit multiturn-encoder

- 13 Bit singleturn

- 16 Bit multiturn

• modular

buscover

•

simple mounting

• bus parameters selectable via dipswitches

• scaling and preset value programmable

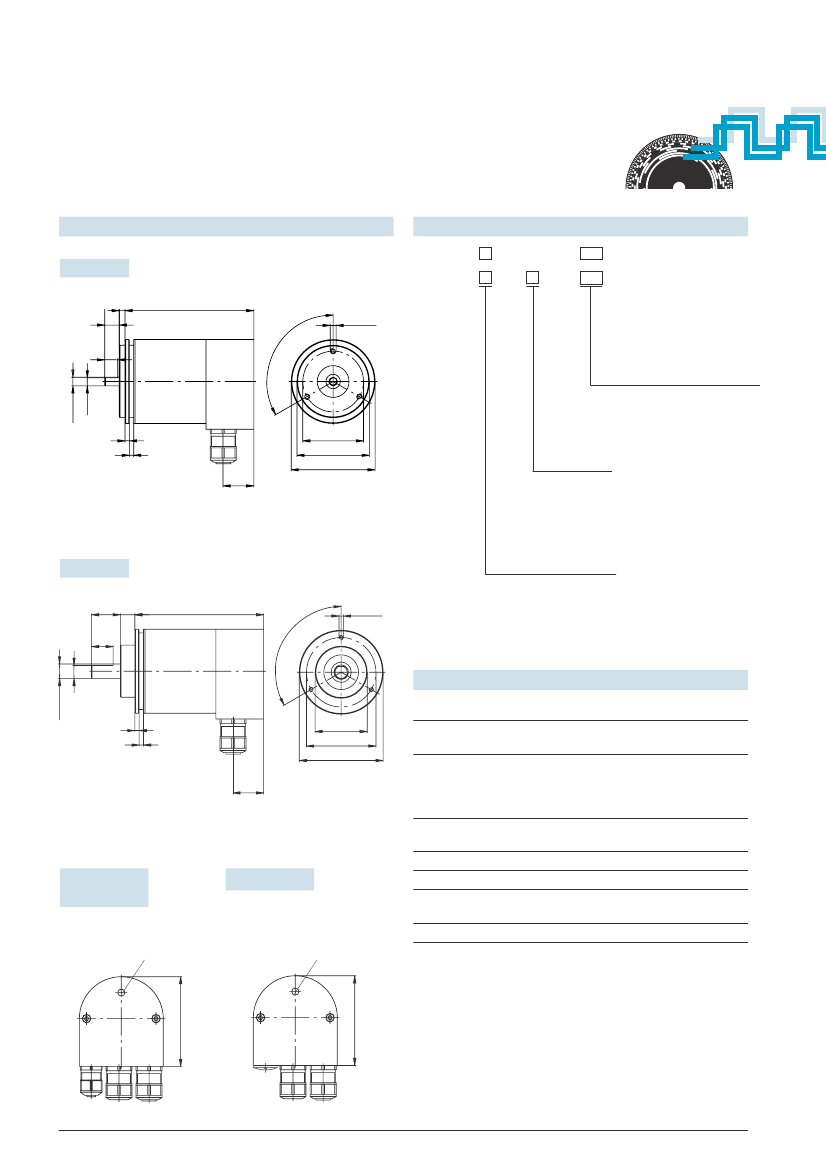

BPMV58S

BPMV58K

general data

voltage supply

max. supply current

no load

max. resolution

singleturn

sultiturn

code switching speed

accuracy

preset

Address

direction

10 - 30 VDC

with reverse polarity protection

50 mA (at 24 VDC)

mechanical data

max. revolutions

mechanical 10,000 /min

electrical 6000 /min

2 x 10

-6

kgm

2

< 0.015 Nm

axial: 20 N

IP 65

housing: steel

buscover/flange: aluminum

approx. 600 g

radial: 40 N

rotor inertia

torque

13 Bit (1 step = 2' 38")

16 Bit (65'536 revolutions)

max. 800 kHz

±

0.05°

value programmable within

resolution range

selectable via dipswitches

programmable, default is

increasing values with clockwise

shaft rotation while viewing

flange

max. shaft load

max. protection class

material

weight

ambient conditions

temperature range

vibration

shock

noise immunity

emitted interference

-20...+85

°C

DIN EN 60068-2-6

(≤ 200 m/s

2

/ 16 - 2000 Hz)

DIN EN 60068-2-27

(≤ 2000 m/s

2

/ 6 ms)

DIN EN 61000-6-2

DIN EN 61000-6-4

www.baumerelectric.com

BPMV58S1P24P13/16C6D Related Products

	BPMV58S1P24P13/16C6D	BPMV58K1P24C13/16C0G	BPMV58K1P24P13/16C0D	BPMV58S1P24D13/16C6D	BPMV58K1P24B13/16C0D	BPMV58S1P24C13/16C6G	BPMV58K1P24D13/16C0D	BPMV58S1P24B13/16C6D
Description	Linear Position Encoder, Single	Linear Position Encoder, Single	Linear Position Encoder, Single	Linear Position Encoder, Single	Linear Position Encoder, Single	Linear Position Encoder, Single	Linear Position Encoder, Single	Linear Position Encoder, Single
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER	LINEAR POSITION ENCODER
Maker	Baumer Electric Ag	-	-	-	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag
