BPSV58K1P24B13/00C6D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BPSV58K1P24B13/00C6D

Preview

BPSV58K1P24B13/00C6D: DescriptionRotary Position Encoder; CategoryLED optoelectronic/LED photoelectric; File Size85KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

BPSV58K1P24B13/00C6D Overview

Rotary Position Encoder

BPSV58K1P24B13/00C6D Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

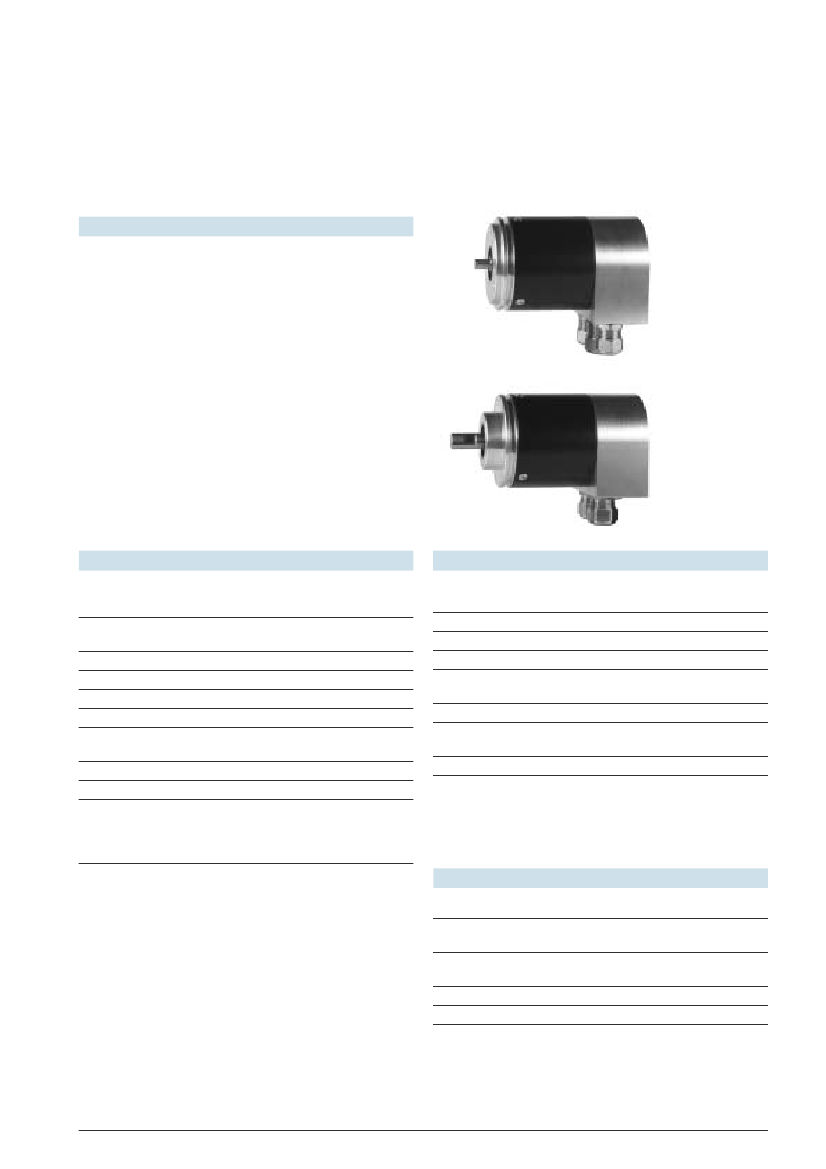

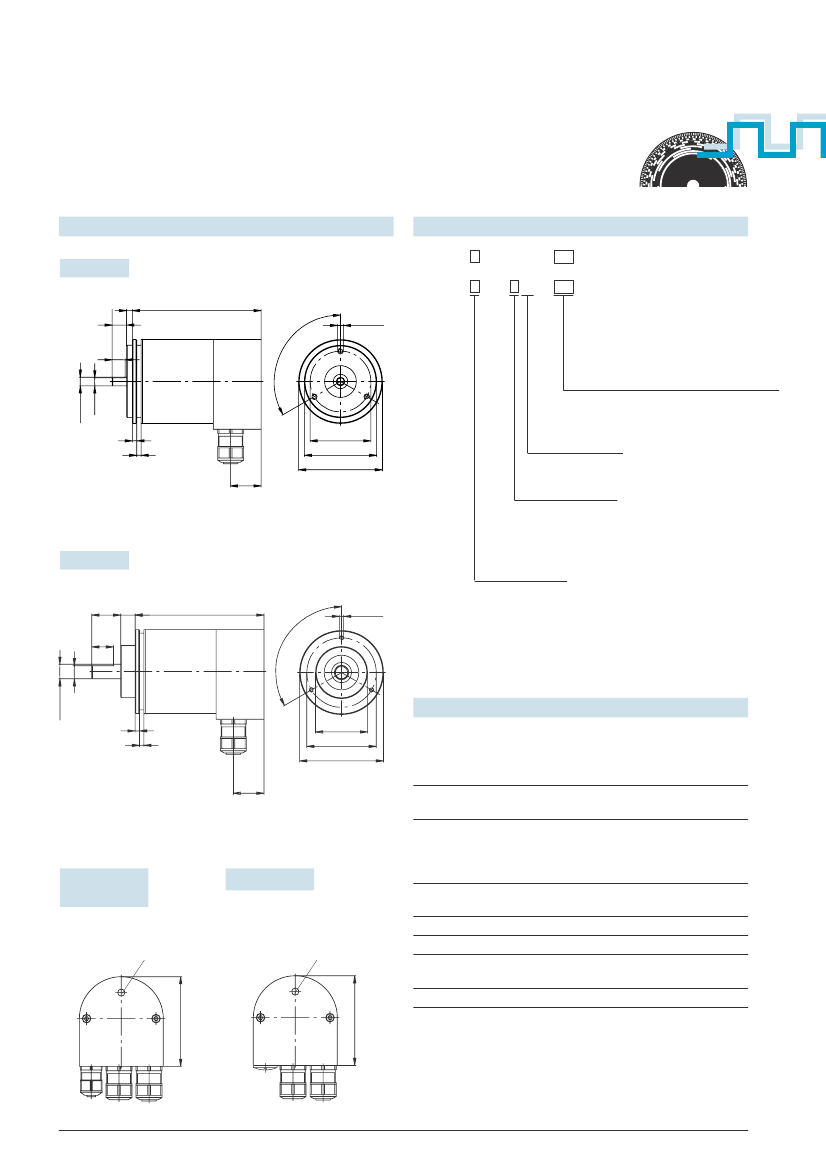

Absolute Singleturn Shaft Encoder

BPSV Flexible –

ProCoder

Profibus-DP CANopen, DeviceNet

,

features

• singleturn encoder 13 Bit

• modular buscover

• simple mounting via servo flange

• bus parameter selectable

• scaling and preset value programmable

BPSV58S

BPSV58K

general data

voltage supply

max. supply current

no load

signal code

max. resolution

code frequency

repeatability

preset

address

baud rate

direction

10 - 30 VDC

with reverse polarity protection

100 mA (24 VDC)

binary

13 Bit (1 Messschritt = 2' 38")

max. 800 kHz

±

0,05°

value programmable within

resolution range

selectable via dipswitches

programmable, default is

increasing values with clockwise

shaft rotation while viewing

flange

mechanical data

max. revolutions

rotor inertia

torque

max. Wellenbelastung

product life

max. protection class

material

weight

≤

0.015 Nm

axial: < 20 N

radial: < 40 N

adepending on ambient

conditions (typ. 10

9

revolutions)

IP 65

housing: steel

buscover/flange: aluminum

600 g

mech. 10,000 rpm

elec. 6,000 rpm

ambient conditions

temperature range

vibration

shock

noise immunity

emitted interference

-20 to+85

°C

DIN EN 60068-2-6

(≤ 200 m/s

2

/ 16 - 2000 Hz)

DIN EN 60068-2-27

(≤ 2000 m/s

2

/ 6 ms)

DIN EN 61000-6-2

DIN EN 61000-6-4

www.baumerelectric.com
