ZADM023H871.0012 datasheet, PDF

Datasheet> All Categories > The sensor> ZADM023H871.0012

ZADM023H871.0012: DescriptionPhotoelectric Sensor, 640mm Min, 1400mm Max, 100mA, Rectangular, Board Mount; CategoryThe sensor; File Size82KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric View All

ZADM023H871.0012 Overview

Photoelectric Sensor, 640mm Min, 1400mm Max, 100mA, Rectangular, Board Mount

ZADM023H871.0012 Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	22.9 mm
body height	50 mm
Body length or diameter	50 mm
shell	DIE-CAST ZINC
Maximum measuring range (mm)	1400 mm
Minimum measuring range (mm)	640 mm
Installation features	BOARD MOUNT
Maximum working current	150 mA
Maximum operating temperature	55 °C
Minimum operating temperature
Output interface type	7-WIRE INTERFACE
Output range	100mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	2000 µs
Sensor/temperature sensor type	PROXIMITY SENSOR,PHOTOELECTRIC
Maximum supply voltage	28 V
Minimum supply voltage	15 V
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

Photoelectric sensors

Line sensors

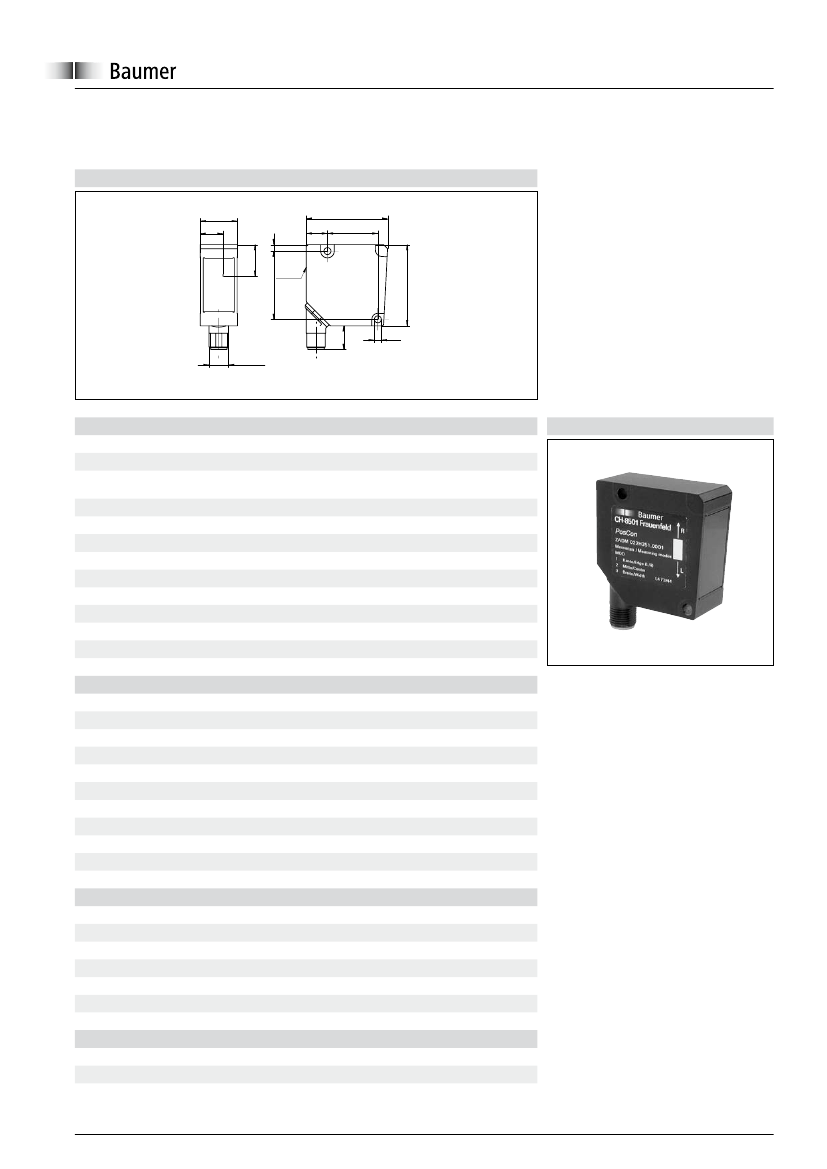

sample drawing

22,9

* 14

* 19,5

ZADM 023 (PosCon, large measuring range)

keypad

4,3

M12 x 1

* receiver axis

general data

type

version

measuring field size (dep. on measuring

dist.)

measuring distance (to object)

measuring frequency

resolution

smallest object recognizable

linearity error relative

light source

wave length

adjustment

measuring mode: edges, center, width

without filter for transparent objects

400 ... 875 mm

640 ... 1400 mm

> 500 Hz

0,5 ... 1 mm

8,5 ... 18 mm

< 0,3 %

pulsed infrared diode

880 nm

Teach-in

sample picture

electrical data

response time

voltage supply range +Vs

current consumption max.

output signal

output current

interface

baud rate

reverse polarity protection

short circuit protection

< 2 ms

15 ... 28 VDC

150 mA

4 ... 20 mA

< 100 mA

analog and RS 485

19200, adjustable

yes, Vs to GND

yes

mechanical data

width / diameter

type

housing material

front (optics)

connection types

23 mm

rectangular

die-cast zinc

glass

connector M12 8 pin, rotatable

ambient conditions

operating temperature

protection class

0 ... +55 °C

IP 67

www.baumer.com

16/10/2011
