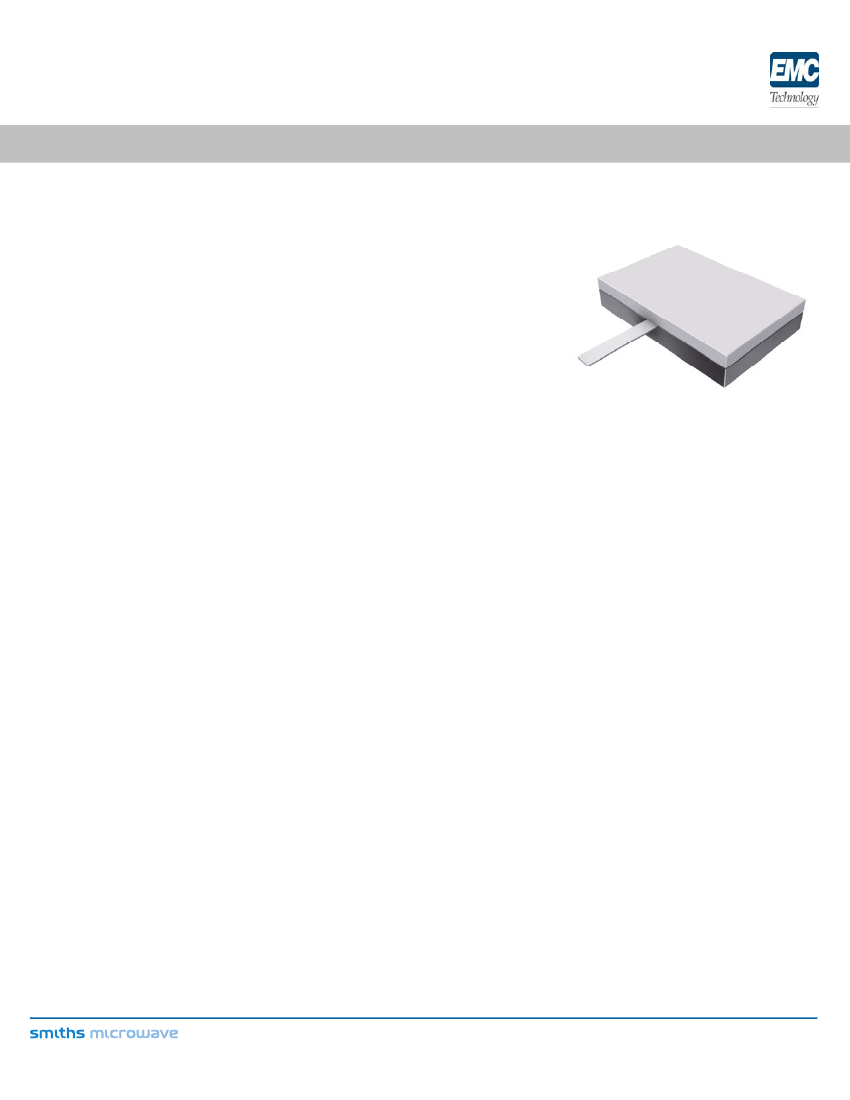

TERMINATION

TAB & COVER 120 WATT

DATA SHEET

FEATURES

Wide Band Response

High Power

Direct Attached

Low VSWR

Easy Installation

Excellent Heat Transfer

PART SERIES: 82-7187TC

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 82-7187TC

EN 13-3497

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of flangeless terminations worldwide.

Tab and cover components offer the highest performance of any style of termination

component.

ORDERING INFORMATION

Part Identifier:

82-7187TC

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

VSWR:

Input Power CW:

Peak Power:

DC Resistance:

50 ohms

DC - 2.0 GHz

1.1:1 Max

120 Watts @ 100°C heat sink, derated linearly to zero power and 150°C

1200 Watts (based on 10us pulse width and 1% duty cycle)

Ω

±5%

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM /

˚C

max

3.0 MARKING

Unit Marking:

Logo and Part Number, legibility and permanency per MIL-STD-130

4.0 QUALITY ASSURANCE

Visual and Mechanical Inspection:

DC Resistance Check:

Data Retention:

Per 824W107

100% DC Resistance Check

Standard

5.0 PACKAGING

Standard Packaging:

Tray Packaging

Form 423F102

Rev-

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
