8435EP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8435EP

8435EP: DescriptionRF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, FM-1; CategoryWireless rf/communication Radio frequency and microwave; File Size135KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

8435EP Overview

RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, FM-1

8435EP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
package instruction	FM-1
Reach Compliance Code	compliant
Other features	I/P POWER-MAX(PEAK)=50W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
JESD-609 code	e0
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

TITLE:

SPECIFICATION CONTROL DRAWING

PART IDENTIFIER:

8435EP

DESCRIPTION:

50 OHM FLANGE LOAD

ASSEMBLY DWG:

2100364

1.0

SPECIFICATIONS:

1.1

ELECTRICAL:

1.1.1

IMPEDANCE: 50 OHMS NOMINAL.

1.1.2

FREQUENCY RANGE: DC-18 GHZ.

1.1.3

INPUT POWER (MAX @ 60°C): (DERATED LINEARLY TO ZERO POWER @ 150°C)

1.1.3.1 AVERAGE: 1 WATT.

1.1.3.2

PEAK: 50 WATTS (10 US PULSE WIDTH).

1.1.4

VSWR:

DC TO 4.0 GHZ - 1.10 MAX.

4.1 TO 8.0 GHZ - 1.15 MAX.

8.1 TO 12.0 GHZ - 1.20 MAX.

12.1 TO 18.0 GHZ - 1.30 MAX.

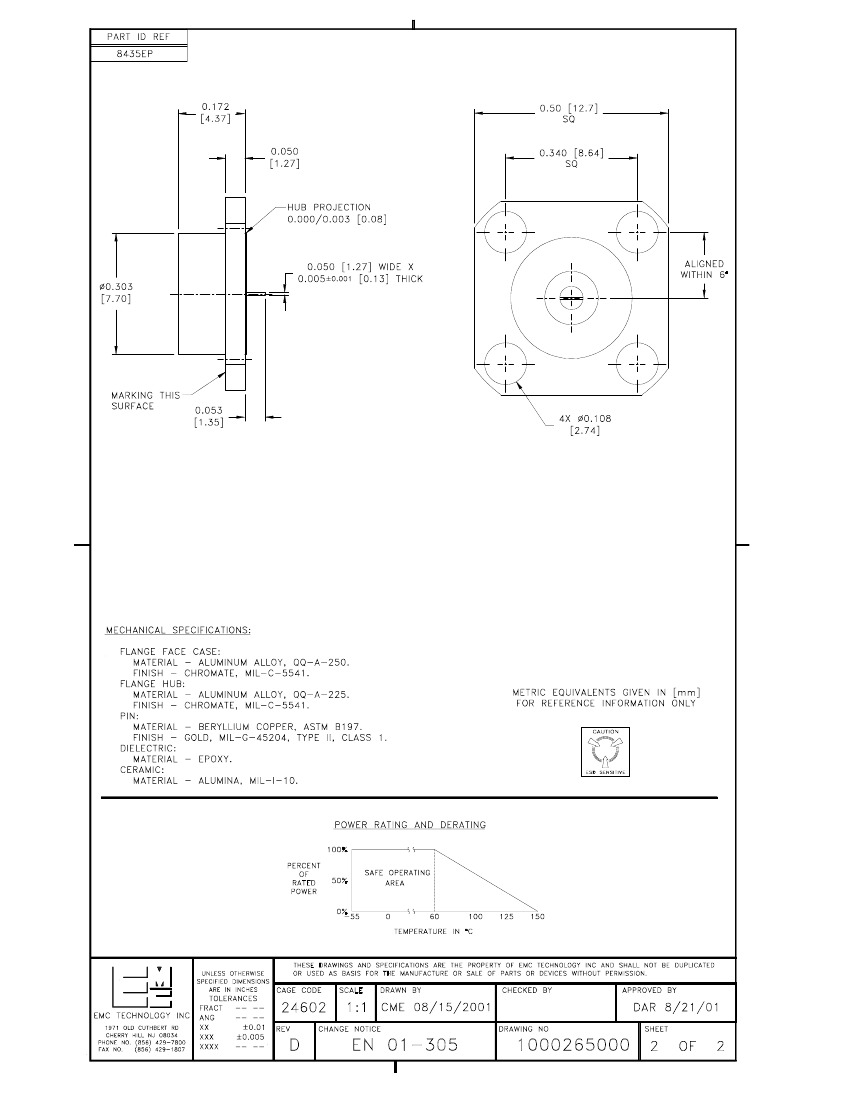

MECHANICAL

1.2.1

OUTLINE DWG: SEE SHEET 2.

ENVIRONMENTAL

1.3.1

TEMPERATURE RANGE:

1.3.1.1 NON-OPERATING: -55° C TO +150° C.

1.3.1.2 OPERATING: -55°C TO +150°C.

1.3.2

VIBRATION: PER MIL-STD-202, METHOD 201 AND MIL-D-39030.

1.3.3

SHOCK: PER MIL-STD-202, METHOD 213, COND. I.

1.3.4

MOISTURE: PER MIL-STD-202, METHOD 106 AND MIL-D-39030 EXCEPT LOADING VOLTAGE IS NOT

APPLICABLE.

"EMCT"

LEGIBILITY AND PERMANENCY PER MIL-STD-130.

1.2

1.3

2.0

UNIT MARKING:

3.0

QUALITY ASSURANCE

3.1

PERFORM INSPECTION IN ACCORDANCE WITH QA0006 AND FORM0357 FOR COMMERCIAL GRADE PRODUCT.

3.2

TEST DATA REQUIREMENTS:

3.2.1

NO TEST DATA REQUIRED FOR CUSTOMER.

3.2.2

DATA RETENTION – 24 MONTHS.

STANDARD PACK PER MC0023.

4.0

PACKAGING:

ENG

PUR

MFG

PLAN

EMC TECHNOLOGY, INC

1971 OLD CUTHBERT ROAD

CHERRY HILL, NJ 08034

CAGE CODE # 24602

CHANGE NOTICE

EN 01-305

DWG #

REV LVL

SHEET

1000265000

8435EP Related Products

	8435EP
Description	RF/Microwave Termination, 0MHz Min, 18000MHz Max, 50ohm, FM-1
Is it Rohs certified?	incompatible
Maker	Smiths Group
package instruction	FM-1
Reach Compliance Code	compliant
Other features	I/P POWER-MAX(PEAK)=50W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
JESD-609 code	e0
Maximum operating frequency	18000 MHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.3
