TITLE:
SPECIFICATION CONTROL DRAWING
PART IDENTIFIER:
8443EP
DESCRIPTION:
50 OHM FLANGE LOAD
ASSEMBLY DWG:
2100394
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
FREQUENCY RANGE: DC-18GHZ.
1.1.3
INPUT POWER: 15 WATTS.
1.1.3.1 FULL RATED POWER TO 60°C, DERATED LINEARLY TO 0 WATTS AT 125°C.
1.1.3.2 PEAK POWER, 100 WATTS FOR 10US PULSE WIDTH @ 1% DUTY CYCLE.
1.1.4
VSWR: DC TO 4.0 GHZ - 1.10 MAX.
4.1 TO 8.0 GHZ - 1.15 MAX.
8.1 TO 12.0 GHZ - 1.20 MAX.
12.1 TO 18.0 GHZ - 1.30 MAX.
MECHANICAL:
1.2.1

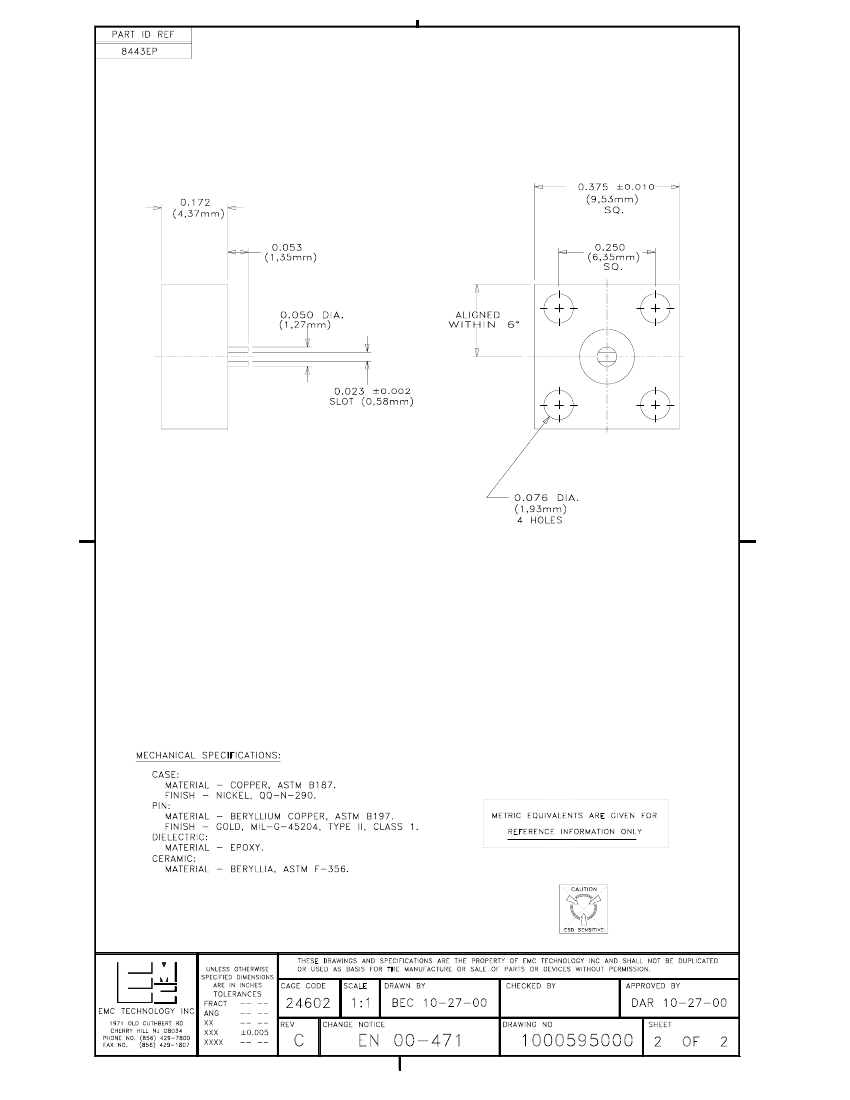

OUTLINE DWG: SEE SHEET 2.
1.2.2
WORKMANSHIP: PER MIL-STD-454, REQUIREMENT 9.
ENVIRONMENTAL:
1.3.1
TEMPERATURE RANGE:
1.3.2.1 NON-OPERATING: -55°C TO +150°C.
1.3.2.2 OPERATING: -55°C TO +125°C.
1.3.3
VIBRATION: PER MIL-STD-202, METHOD 201 AND MIL-D-39030.
1.3.4
SHOCK: PER MIL-STD-202, METHOD 213, COND. I.
1.3.5
MOISTURE: PER MIL-STD-202, METHOD 106 AND MIL-D-39030 EXCEPT LOADING VOLTAGE IS NOT
APPLICABLE.
"EMCT"
LEGIBILITY AND PERMANENCY PER MIL-STD-130
1.2
1.3
2.0
UNIT MARKING:
3.0
QUALITY ASSURANCE:
3.1
SAMPLE INSPECT PER ANSI/ASQC Z1.4 GENERAL INSPECTION, LEVEL II, AQL = 1.0.
3.1.1
VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO CONTROL DRAWING REQUIREMENTS,
INCLUDING SMA INTERFACE.
3.1.2
MEASURE AND RECORD VSWR @ 1 TO 18 GHZ IN 1 GHZ INCREMENTS.
3.1.2.1 ACCEPTANCE LIMITS: SEE ELECTRICAL 1.1.4.
TEST DATA REQUIREMENTS:
3.2.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.2.2
DATA RETENTION: STANDARD.
STANDARD PACK PER MC0023.
3.2
4.0
PACKAGING:
ENG
CC
PUR
MFG
QA
PLAN
SM
EMC TECHNOLOGY, INC
1971 OLD CUTHBERT ROAD
CHERRY HILL, NJ 08034
CAGE CODE # 24602
CHANGE NOTICE
EN 00-471
DWG #
REV LVL
SHEET
1000595000
C
1
OF
2
