TITLE:
SPECIFICATION CONTROL DRAWING
X METALLIZATION STYLE (W1=Single Wrap)
XX HIGHEST FREQUENCY
XX LOWEST FREQUENCY
XX SLOPE (N = LINEAR NEGATIVE P = LINEAR POSITIVE)
XX DB NOMINAL VALUE
PART IDENTIFIER:
CEXXXXXXXW1
DESCRIPTION:
FIXED CHIP EQUALIZER
ASSEMBLY DWG:
1901964
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
OPERATING FREQUENCY RANGE: 2 GHZ - 18 GHZ.
1.1.3
NOMINAL ATTENUATION VALUE:
NOMINAL
IDENTIFIER
ATTENUATION
01
1DB
02
2DB
03
3DB
04
4DB
1.1.4
ATTENUATION LINEARITY AT 25°C: ±0.5. SEE FIGURE 1 BELOW.
1.1.5
VSWR: 1.7:1 MAX. @ NOMINAL ATTENUATION FREQUENCY. (HIGHEST FREQUENCY FOR NEGATIVE SLOPE
OR LOWEST FREQUENCY FOR POSITIVE SLOPE)
1.1.6
INPUT POWER: 0.25 WATTS CW.
1.1.6.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.
1.1.7
INSERTION LOSS: 1.0 DB (TYPICAL) @ LOW FREQUENCY FOR POSITIVE SLOPE OR HIGH FREQUENCY FOR
NEGATIVE SLOPE

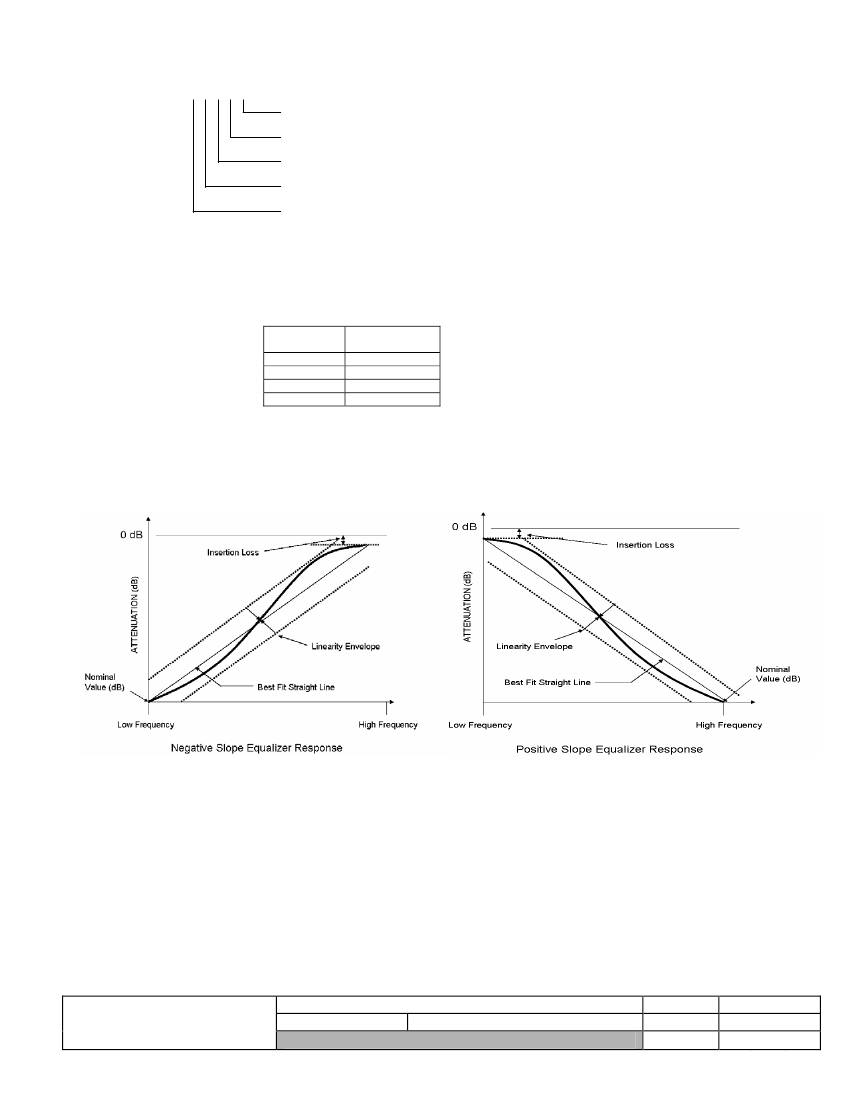

FIGURE 1.
2.0
3.0
4.0
MECHANICAL:
1.2.1

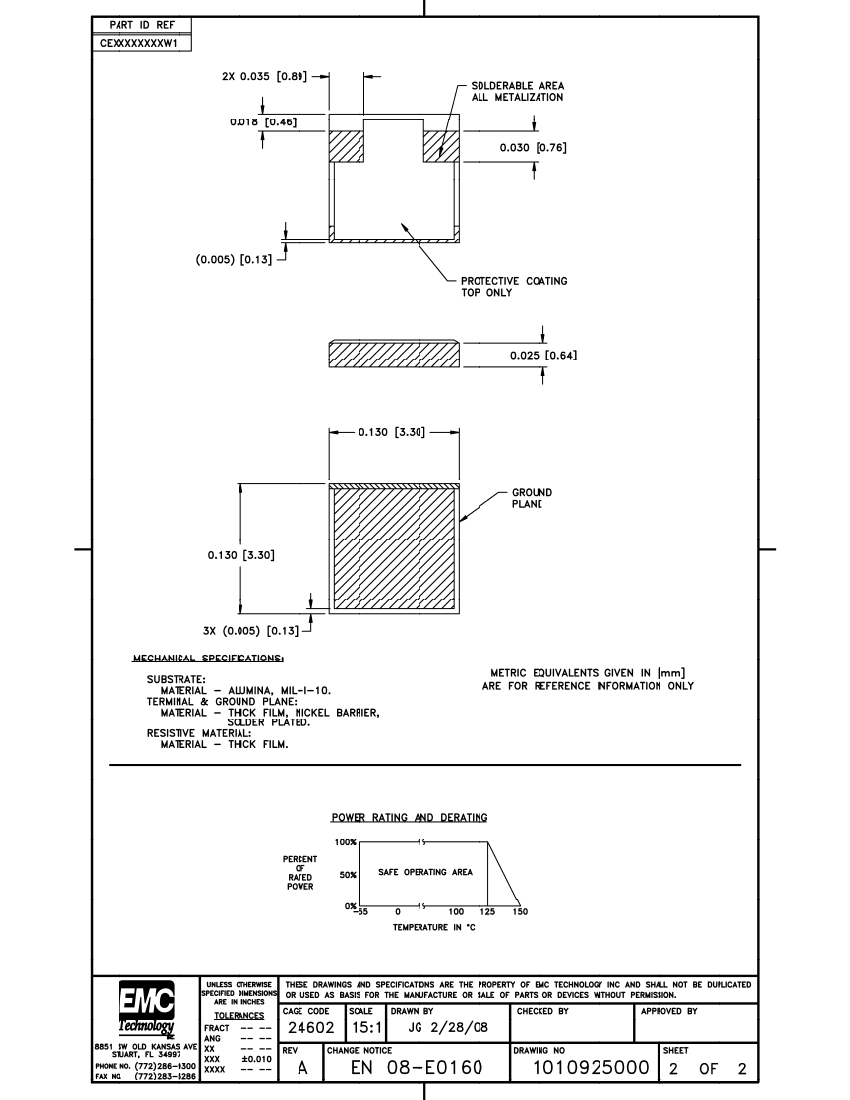

OUTLINE DWG: SEE SHEET 3.
1.2.2
WORKMANSHIP: PER MIL-PRF-55342.
1.3
ENVIRONMENTAL:
1.3.1
OPERATING TEMPERATURE RANGE: -55°C TO +150°C.
UNIT MARKING:
DB VALUE (XX)
LEGIBILITY AND PERMANENCY PER MIL-STD-130 .
QUALITY ASSURANCE:
3.1
SAMPLE INSPECT PER ANSI/ASQC Z1.4 GENERAL INSPECTION, LEVEL II, AQL = 1.0.
3.1.1
VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO OUTLINE DRAWING REQUIREMENTS.
3.2
INSPECTION IN ACCORDANCE WITH QA0006 AND FORM0357 FOR COMMERCIAL GRADE PRODUCT.
3.3
TEST DATA REQUIREMENTS:
3.4.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.4.2
DATA RETENTION - 24 MONTHS.
PACKAGING:
STANDARD PACK PER MC0023.
1.2
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
