D3DP30F: DescriptionDirectional Coupler, 2300MHz Min, 2700MHz Max, 0.2dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size1MB，1 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

D3DP30F Overview

Directional Coupler, 2300MHz Min, 2700MHz Max, 0.2dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4

D3DP30F Parametric

Parameter Name	Attribute value
Maker	Smiths Group
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	53.01 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	2700 MHz
Minimum operating frequency	2300 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

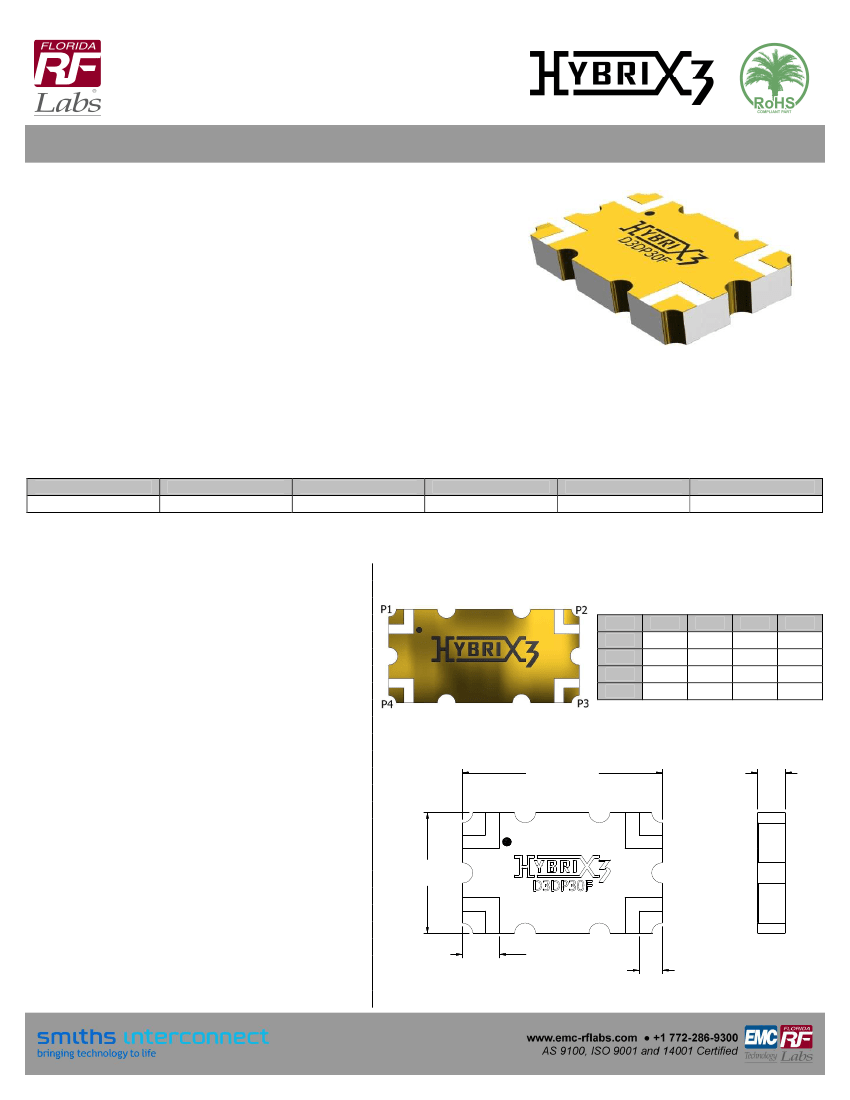

COUPLER

DIRECTIONAL 200 WATT

DATA SHEET

FEATURES

Low Profile Surface Mount Package

High Power

Low Insertion Loss

High Directivity

100% Tested

PART NUMBER: D3DP30F

APPLICATIONS

Power Amplifiers

Power Monitors

Reflectometers

Signal Distribution Network

Antenna Feeds

Switch Networks

SHEET 1 OF 2

EN 12-0435

04/03/2012

GENERAL DESCRIPTION

Florida RF Labs offers high performance directional couplers in a low profile, surface mount package. These couplers are designed for

demanding applications where high power, low loss and excellent directivity are required.

SPECIFICATIONS

1.0 ELECTRICAL

Frequency

2300 to 2700 MHz

Coupling

30.0 ± 1.5

Directivity

18 dB Max

Insertion Loss

0.2 dB Min

VSWR

1.2 Max

Power Handling

200 Watts CW

2.0 MECHANICAL

Operating Temperature:

Substrate:

Conductor:

Plating:

Application Note:

-55 ºC to +125 ºC

LTCC

Silver

Gold

AN0030 (General Hybrid

And Directional Coupler)

PIN CONFIGURATION

Port

P1

P2

P3

P4

P1

-

Out

Iso

Coup

P2

Out

-

Coup

Iso

P3

Iso

Coup

-

Out

P4

Coup

Iso

Out

-

3.0 UNIT MARKING

Logo, Part Number and Pin 1 Identification

MECHANICAL OUTLINE

4.0 PACKAGING

Standard:

Tape And Reel

0.560±0.006

[14.22±0.15 mm]

0.079±0.004

[2.00±0.10 mm]

5.0 PART NUMBERING

Part Identifier:

D3DP30F

0.350±0.006

[8.89±0.15 mm]

8X 0.104±0.006

[2.65±0.15 mm]

8X 0.065±0.006

[1.65±0.15 mm]

Note: Specifications are subject to change without notice.

Unless Otherwise Specified:

TOLERANCE: .XXX =

± .010

D3DP30F Related Products

	D3DP30F
Description	Directional Coupler, 2300MHz Min, 2700MHz Max, 0.2dB Insertion Loss-Max, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Maker	Smiths Group
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
Other features	HIGH ISOLATION
structure	COMPONENT
Maximum input power (CW)	53.01 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	2700 MHz
Minimum operating frequency	2300 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.2
