DS10P10: DescriptionDirectional Coupler, 2300MHz Min, 2700MHz Max, 0.25dB Insertion Loss-Max, 0.560 X 0.350 INCH, ROHS COMPLIANT PACKAGE-3; CategoryWireless rf/communication Radio frequency and microwave; File Size47KB，2 Pages; ManufacturerSmiths Group; Environmental Compliance

Download Datasheet Parametric Compare View All

DS10P10 Overview

Directional Coupler, 2300MHz Min, 2700MHz Max, 0.25dB Insertion Loss-Max, 0.560 X 0.350 INCH, ROHS COMPLIANT PACKAGE-3

DS10P10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Smiths Group
Reach Compliance Code	compliant
structure	COMPONENT
Maximum input power (CW)	50 dBm
Maximum insertion loss	0.25 dB
JESD-609 code	e4
Maximum operating frequency	2700 MHz
Minimum operating frequency	2300 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER
Terminal surface	SILVER
Maximum voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

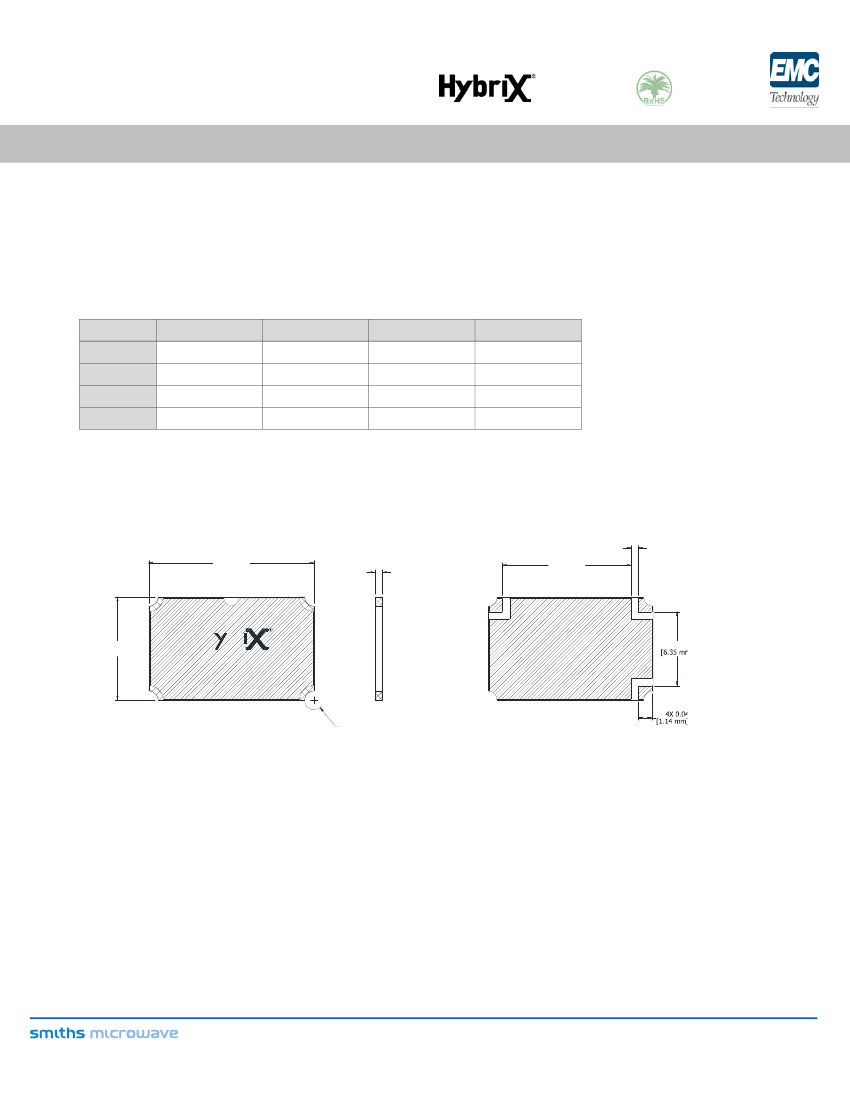

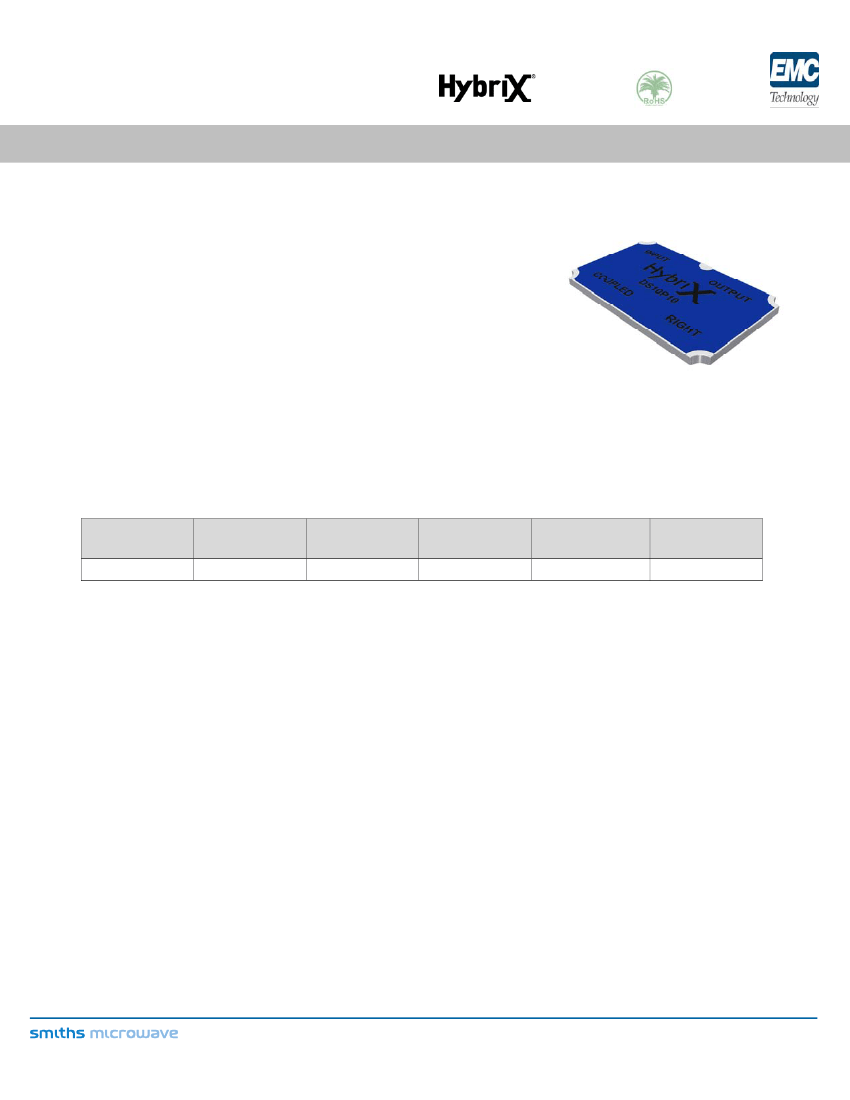

COUPLER

DIRECTIONAL 100 WATT

DATA SHEET

FEATURES

Low Profile Surface Mount Package

High Power

Low Insertion Loss

High Directivity

High Reliability

PART SERIES: DS10P10

APPLICATIONS

Power Amplifiers

Power Monitors

Reflectometers

Signal Distribution Networks

Antenna Feeds

Switch Networks

SHEET 1 OF 2

Dwg DS10P10

EN 13-3456

Revision -

GENERAL DESCRIPTION

EMC Technology offers high performance directional couplers in a low profile, surface

mount package. These couplers are designed for demanding applications where high

power, low loss and excellent directivity are required.

ORDERING INFORMATION

Part Identifier:

DS10P10

SPECIFICATIONS

1.0 ELECTRICAL

Frequency

2.3 TO 2.7 GHz

Coupling

10.0 dB

Insertion

Loss

0.25 dB Max

VSWR

1.20:1 Max

Directivity

30 dB Min

Power

Handling

100 Watt

2.0 ENVIRONMENTAL

Operating Temperature:

-55ºC to +85ºC

3.0 MARKING

Hybrix, Part Number and Port Indicators

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.

Measure Amplitude Balance and VSWR

Test Data Requirements

No Test Data Required

Data Retention – 12 months

5.0 PACKAGING

Standard:

Tape and Reel

Note: Specifications are subject to change.

423F107 Rev-

Cage Codes: 24602 / 2Y194

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified

DS10P10 Related Products

	DS10P10	DS10P10F
Description	Directional Coupler, 2300MHz Min, 2700MHz Max, 0.25dB Insertion Loss-Max, 0.560 X 0.350 INCH, ROHS COMPLIANT PACKAGE-3	Directional Coupler, 2300MHz Min, 2700MHz Max, 0.25dB Insertion Loss-Max, 0.560 X 0.350 INCH, ROHS COMPLIANT PACKAGE-3
Is it Rohs certified?	conform to	conform to
Maker	Smiths Group	Smiths Group
Reach Compliance Code	compliant	compliant
structure	COMPONENT	COMPONENT
Maximum input power (CW)	50 dBm	50 dBm
Maximum insertion loss	0.25 dB	0.25 dB
JESD-609 code	e4	e4
Maximum operating frequency	2700 MHz	2700 MHz
Minimum operating frequency	2300 MHz	2300 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Terminal surface	SILVER	SILVER
Maximum voltage standing wave ratio	1.2	1.2
