TM9118 datasheet, PDF - EEWORLD Datasheet

TM9118: Description10 MHz - 800 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size628KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TM9118 Overview

10 MHz - 800 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN

Parameter Name	Attribute value
Maker	Spectrum Microwave
package instruction	CAN4,.3
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	13.5 dB
Maximum input power (CW)	13 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	800 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN4,.3
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

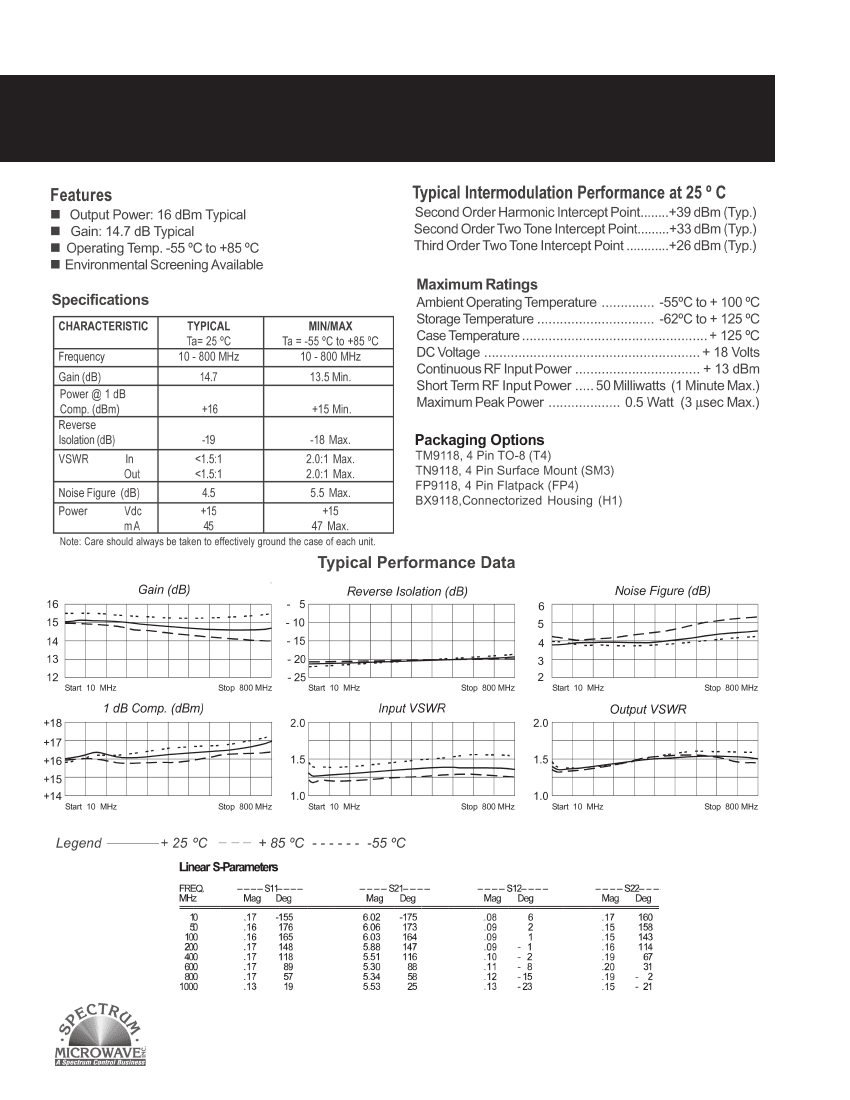

RF Amplifier

Output Power: 16 dBm

Model TM9118

10 to 800 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

420

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	TM9118	FP9118	BX9118
Description	10 MHz - 800 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	10 MHz - 800 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	10 MHz - 800 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknow
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT	COAXIAL
Gain	13.5 dB	13.5 dB	13.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	800 MHz	800 MHz	800 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
Characteristic impedance	50 Ω	50 Ω	-
